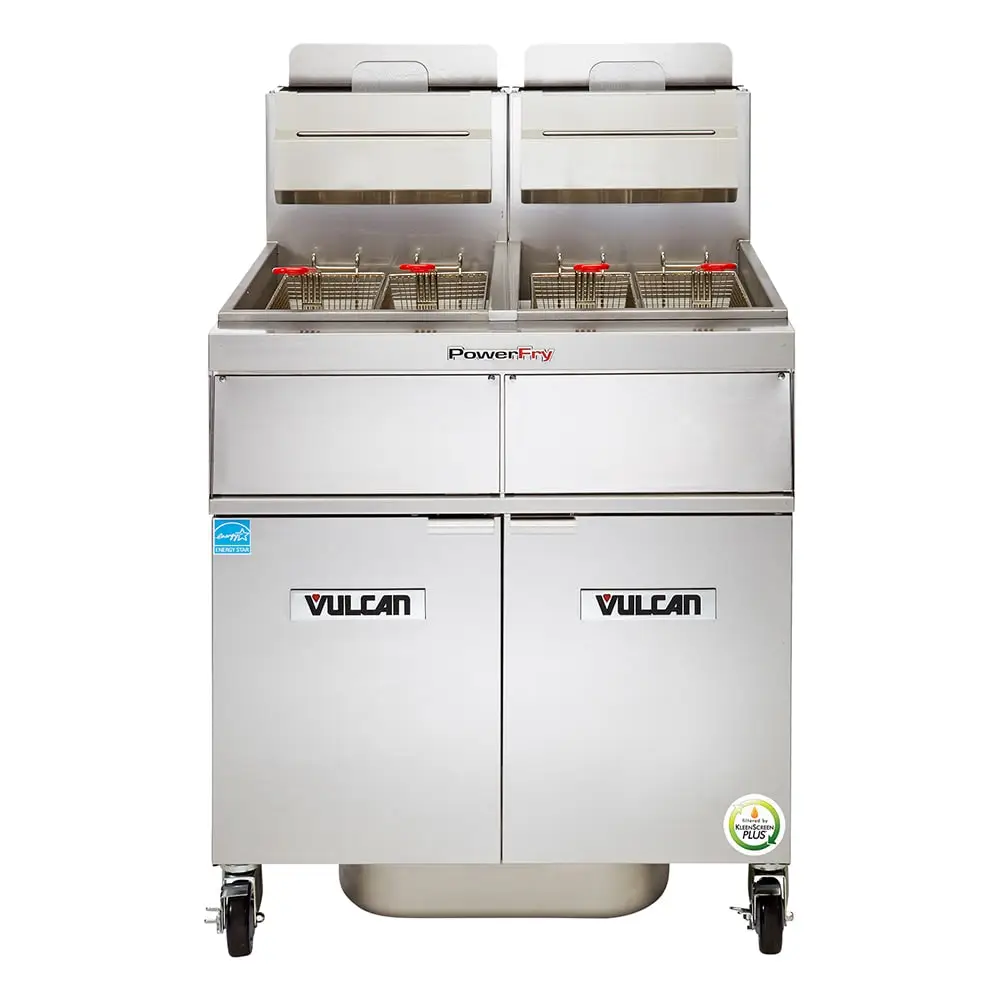

Vulcan 2TR85AF Gas Fryer - (2) 90 Lb Vats, Floor Model, Liquid Propane

The Vulcan 2TR85AF PowerFry3® high-efficiency, two-battery gas fryer is a 42-inch-wide by 34 19/50-inch-deep by 42 1/4-inch-tall freestanding unit featuring two 90-pound-capacity vats. To accommodate foods with different cooking requirements, each frypot has separate solid-state analog controls that let operators set a temperature between 200 and 390 degrees Fahrenheit and select one of the fat-melt modes. To minimize energy consumption during high-volume frying, it features an efficient ThreePass® heat transfer system that yields 72 percent thermal efficiency and 60 percent cooking efficiency. Its SoftStart® ignition system enables the unit to output 45,000 BTUs per hour rather than 90,000 BTUs per hour upon startup. Once the set temperature is reached, the idle temperature setting maintains this level by only outputting 5,575 BTUs per hour.
To streamline frying, both fryers come with two fryer baskets featuring plastic-coated handles for user safety. These baskets secure french fries, hush puppies, dumplings, tofu, chicken, and fish in place as they're submerged into and lifted from oil. To enhance staff comfort, this unit creates a 36 1/4-inch working height. Its cabinet and frypots are made of high-quality, rust- and corrosion-resistant stainless steel. To perform maintenance or clean the floor beneath the unit, the fryer can be moved smoothly because it's equipped with four 6-inch casters, two of which can be locked to keep the unit in place.
The Vulcan 2TR85AF freestanding gas fryer's KleenScreen PLUS® filtration system is built into a pull-out drawer configuration; for simple operation, this mechanism can be activated with the push of a button. The pump and motor circulate oil at an 8-gallon-per-minute rate, and the drain interlock switch automatically turns off the gas burners when oil is drained. Because its stainless steel mesh filter screen filters from two sides, it establishes a 270-square-inch filtration area. The seamless stainless steel filter pan can hold 110 pounds of oil and sports large lift handles users can grab during retrieval. To further minimize hands-on tasks, it features a hands-free oil-return tube that directs filtered oil back into the tank once the filter drawer is closed.

Product Details





Featured in the PowerFry3 TR85 collection
(2) 90-lb. fry tanks
2-battery freestanding floor model
ThreePass heat transfer system enhances energy efficiency
SoftStart ignition mechanism outputs 45,000 BTUs per hour upon startup rather than 90,000 BTUs per hour
Energy-saving idle temperature settings outputs 5,083 BTUs per hour while maintaining temperature
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff mechanism
Rust- and corrosion-resistant stainless steel cabinet and frypots
4 fryer baskets with plastic-coated handles (2 per frypot)
36 1/4-in. working height
(4) 6-in. adjustable casters (2 locking)
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 90,000 BTU

Solid-state Analog Knob Controls





Separate solid-state analog knob controls per fry tank
Operating temperature range: 200-390 degrees F
User-selectable fat-melt modes
Electronic ignition
Located behind cabinet door

Filtration System Details





Built into a pull-out drawer at the base of the unit
Push button activates motor and pump
Stainless steel mesh filter can filter from 2 sides and creates 270-sq.-in. filter area
Drain valve interlock switch
Seamless 18-ga. stainless steel filter pan can hold 110 lb. of oil
8-GPM motor and pump
Hands-free oil-return tube
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





42 in. W x 34 19/50 in. D (54 1/2 in. D when doors are opened) x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
180

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
180

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
700.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 180
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 180
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 700.00
