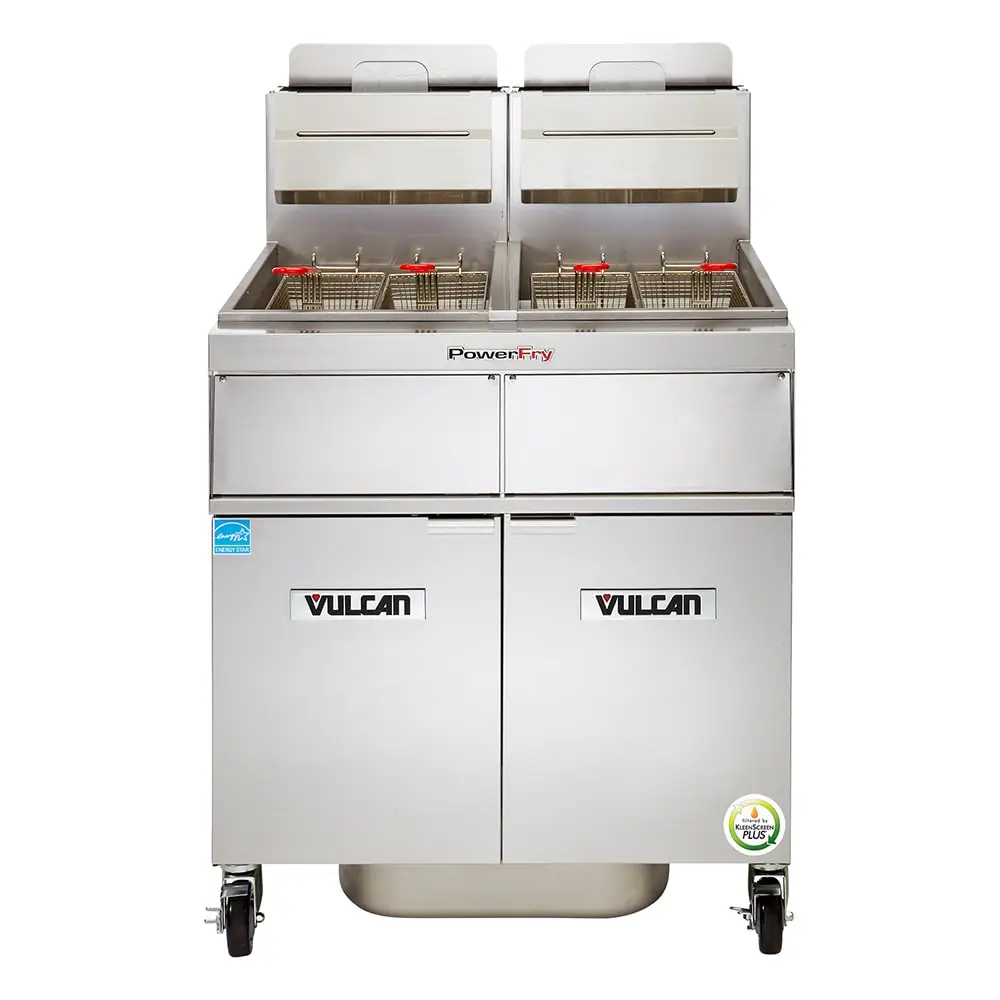

Vulcan 2TR85AF Gas Fryer - (2) 90 Lb Vats, Floor Model, Natural Gas

To conserve space while promoting efficiency, the Vulcan 2TR85AF freestanding gas fryer's 42-inch-wide by 34 19/50-inch-deep by 42 1/4-inch-tall body features two 90-pound-capacity frypots. Both frypots have individual solid-state analog knob controls to accommodate foods with different cooking requirements with minimal flavor transfer. The analog knobs located behind the cabinet doors enable employees to set the oil temperature between 200 and 390 degrees Fahrenheit and choose from one of the fat-melt modes when using solid shortening. Once the temperature is set, the SoftStart® ignition system quickly warms the oil by outputting 45,000 BTUs per hour. The ThreePass® heat transfer system uniformly disperses heat throughout the oil to yield high cooking and thermal efficiency, and to maintain desired temperatures, the idle temperature mode only outputs 5,575 BTUs per hour for energy conservation.
To extend oil life, the KleenScreen PLUS® filtration system is housed in a pull-out drawer in the unit's base. Users can initiate a filtration cycle with the push of a button, causing the pump and motor to circulate oil at an 8-gallon-per-minute rate. To streamline the process, the drain interlock switch automatically turns off the gas burners as oil is draining, while the stainless steel mesh filter screen filters from two sides. Its seamless stainless steel filter pan can hold 110 pounds of oil, and once the filter drawer is closed, the hands-free oil-return tube adds filtered oil back to the unit.
Both frypots in the Vulcan 2TR85AF high-efficiency gas fryer include twin baskets that accommodate an array of breaded productsa€”from french fries to fish filets. The baskets' structures ensure contents are secure as they're lowered into the vats and removed from the oil, and for enhanced safety, the handles are coated with plastic. To provide durability through high-volume use, the cabinet and fry tanks are made of rugged, corrosion- and rust-resistant stainless steel. Operators can wheel this unit out of the way to clean the floor or perform routine maintenance because it's fitted with four 6-inch casters. Two of these casters include locks to secure the fryer in place.

Product Details





Featured in the PowerFry3® TR85 collection
2-battery, freestanding floor model
(2) 90-lb. fry tanks
ThreePass heat transfer system yields 72 percent thermal efficiency and 60 percent cooking efficiency
SoftStart ignition mechanism quickly warms oil
Idle temperature mode outputs 5,575 BTUs per hour to maintain temperature
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
Stainless steel cabinet and frypots
4 fryer baskets featuring plastic-coated handles (2 per frypot)
Establishes 36 1/4-in. working height
(4) 6-in. adjustable casters (2 with locks)
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 90,000 BTU

Solid-state Analog Knob Controls





Separate solid-state analog knob controls for each fry tank
Operating temperature range: 200-390 degrees F
User can select fat-melt modes
Electronic ignition
Located behind cabinet door

Filtration System Details





Housed in a pull-out drawer in unit's base
Button activates motor and pump
Motor and pump circulate oil at 8 GPM
2-sided stainless steel mesh filter establishes 270-sq.-in. filter area
Drain valve interlock switch turns off burners while oil drains
Seamless 18-ga. stainless steel filter pan can hold 110 lb. of oil
Hands-free oil-return tube
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





42 in. W x 34 19/50 in. D (54 1/2 in. D when doors are opened) x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
180

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
180

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
700.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 180
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 180
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 700.00
