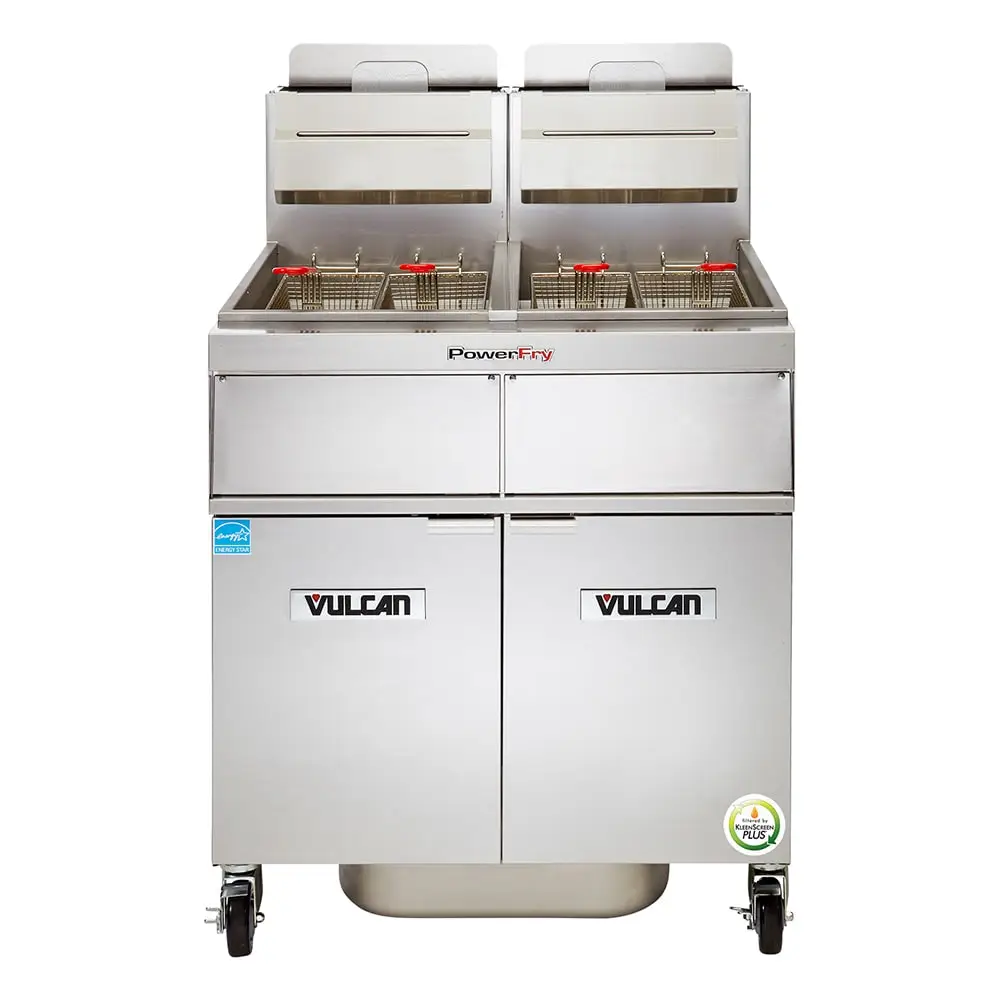

Vulcan 2TR85CF Gas Fryer - (2) 90 Lb Vats, Floor Model, Liquid Propane

The Vulcan 2TR85CF freestanding gas fryer is a 42-inch-wide by 34 19/50-inch-deep by 47 1/4-inch-tall unit built with two 90-pound-capacity frypotsa€”meaning various foods can be fried simultaneously. Both fry tanks include twin baskets to keep foods in place as they're lowered into the tanks and lifted from the oil. To protect users' hands, the handles are coated with plastic that minimizes heat transfer. Designed to endure high-volume back-of-house use, the cabinet and fry tanks are constructed of corrosion- and rust-resistant stainless steel. This two-battery unit is fitted with four 6-inch casters to simplify repositioning; because two of the casters include locks, it can remain secured in place during frying.
The fryer's computer controls enable users to set each frypot's temperature from 200 to 390 degrees Fahrenheit, choose to cook with compensating time or actual time, use 10 menu timers, select from three melt modes, and program menu items offline. Although this unit can output 90,000 BTUs per hour, its SoftStart® ignition system warms the oil, causing the unit to output just 45,000 BTUs per hour to reduce scorching risk. Its ThreePass® heat transfer system evenly guides heat throughout the oil to enhance efficiency, and to save energy, the idle temperature mode outputs 5,575 BTUs per hour to maintain the set temperature.
The Vulcan 2TR85CF high-efficiency commercial gas fryer's base houses a pull-out KleenScreen PLUS® filtration system, which is comprised of a 110-pound-capacity stainless steel filter pan, a stainless steel mesh filter screen, a suction tube, and a knurled knob that secures all components together. To activate the motor and pump, users can simply push a button for these components to circulate oil at an 8-gallon-per-minute rate. A drain interlock switch automatically turns off the gas burners as oil is draining for safety, and to create a 270-square-inch filtration area, its mesh screen filters particulates from two sides. Because the hands-free oil-return tube automatically adds filtered oil back to the unit once the filter drawer is closed, it eliminates the need to perform time-consuming hands-on tasks.

Product Details





Part of the PowerFry3® TR85 series
2-battery freestanding floor model
2 fry tanks boasting 90-lb. capacities
ThreePass heat transfer system evenly disperses heat throughout oil
SoftStart ignition mechanism rapidly heats oil upon startup
Idle temperature mode outputs 5,575 BTUs per hour to maintain temperature
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
Durable stainless steel cabinet and frypots
Each frypot includes twin fryer baskets with plastic-coated handles
36 1/4-in. working height
2 of (4) 6-in. adjustable casters include locks
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 90,000 BTU

Computer Controls





Corresponding controls for each fry tank
Operating temperature range: 200-390 degrees F
Digital character display can be set to Fahrenheit or Celsius
10 menu timers display product name and cook time
Items can be programmed offline using a USB interface (software included)
Electronic ignition
Can cook with compensating time or actual time
3 melt modes

Filtration System Details





Comprised of 110-lb.-capacity stainless steel filter pan, stainless steel mesh filter screen, suction knob, and knurled knob
Pull-out drawer assembly at fryer base
Push-button pump and motor activation
Oil is circulated at 8 GPM
Stainless steel mesh filter screen establishes 270-sq.-in. filter area
Drain valve interlock switch automatically turns off burners as oil is drained
Hands-free oil-return tube adds oil back to the tanks when drawer is closed
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





42 in. W x 34 19/50 in. D (54 1/2 in. D when doors are opened) x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
180

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
180

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
700.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 180
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 180
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 700.00
