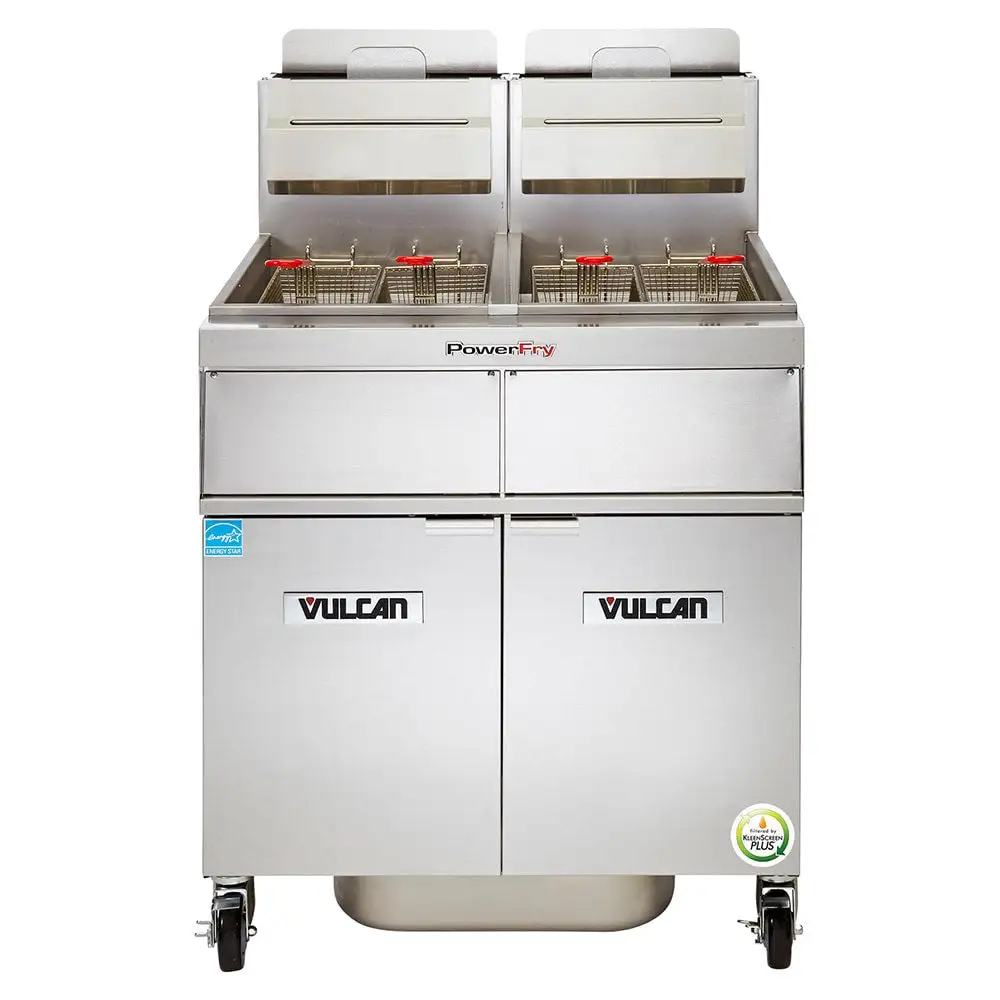

Vulcan 2TR85DF Gas Fryer - (2) 90 Lb Vats, Floor Model, Liquid Propane

The Vulcan 2TR85DF high-efficiency freestanding gas fryer measures 42 inches wide by 34 19/50 inches deep by 47 1/4 inches tall and is built with dual 90-pound-capacity frypots. So different foods can be cooked simultaneously, each frypot has corresponding solid-state digital controls that enable employees to set the temperature between 200 and 390 degrees Fahrenheit, choose to cook with compensating time or actual time, select one of three melt modes, set two countdown timers, and initiate an automatic boil-out mode. Operators can lower fish filets, chicken tenders, mozzarella sticks, and okra into the vats using the four fryer baskets, which feature plastic-coated handles to minimize heat transfer. Designed to withstand high-volume use, the cabinet and frypots are made of rigid stainless steel that resists rusting and corroding. Because it's fitted with four 6-inch casters, maneuvering is smooth when cleaning or maintenance is required.
Designed to prolong oil's service life while enhancing efficiency, the Vulcan 2TR85DF commercial gas fryer is part of the PowerFry3® collection, which features a ThreePass® heat transfer system that evenly disperses heat throughout oil to yield 60 percent cooking efficiency and 72 percent thermal efficiency. Its SoftStart® ignition system quickly warms the oil by outputting 45,000 BTUs per houra€”half of the unit's hourly BTU capability. The idle temperature mode outputs 5,575 BTUs per hour to maintain the set temperature once it's reached. At the base of the fryer, the KleenScreen PLUS® filtration unit is integrated into a pull-out drawer. Because operators can initiate a filtration cycle with the push of a button, this system encourages frequent filtration to extend oil life. The motor and pump circulate oil at an 8-gallon-per-minute rate, while the stainless steel filter pan can hold 110 pounds of oil. The oil-return line automatically adds filtered oil back to the frypot once the filter drawer is closed.

Product Details





Part of the PowerFry3 TR85 series
Freestanding floor model with 2 batteries
(2) 90-lb. frypots
Stainless steel cabinet and frypots
Each frypot includes twin fryer baskets with plastic-coated handles
Creates 36 1/4-in. working height
(4) 6-in. adjustable casters (2 with locks)
ThreePass heat transfer system yields 60 percent cooking efficiency and 72 percent thermal efficiency
SoftStart ignition mechanism causes unit to output 45,000 BTUs per hour
Idle temperature mode only outputs 5,575 BTUs per hour to maintain heat
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 90,000 BTU

Solid-state Digital Controls





Independent controls per frypot
Electronic matchless ignition
Digital character display in Fahrenheit or Celsius
Operating temperature range: 200-390 degrees F
3 melt modes
2 countdown timers
Automatic boil-out mode
Can use compensating time or actual time to cook

Filtration System Details





Pull-out drawer assembly located in the base of the fryer
110-lb.-capacity stainless steel filter pan
Stainless steel mesh filter screen with 270-sq.-in. filter area
Filtration cycle activated with push of a button
Pump and motor circulate oil at 8 GPM
Drain valve interlock switch automatically turns off burners as oil is drained
Hands-free oil-return tube adds oil back to the tanks when filter drawer is closed
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





42 in. W x 34 19/50 in. D (54 1/2 in. D when doors are opened) x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
180

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
180

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
700.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 180
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 180
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 700.00
