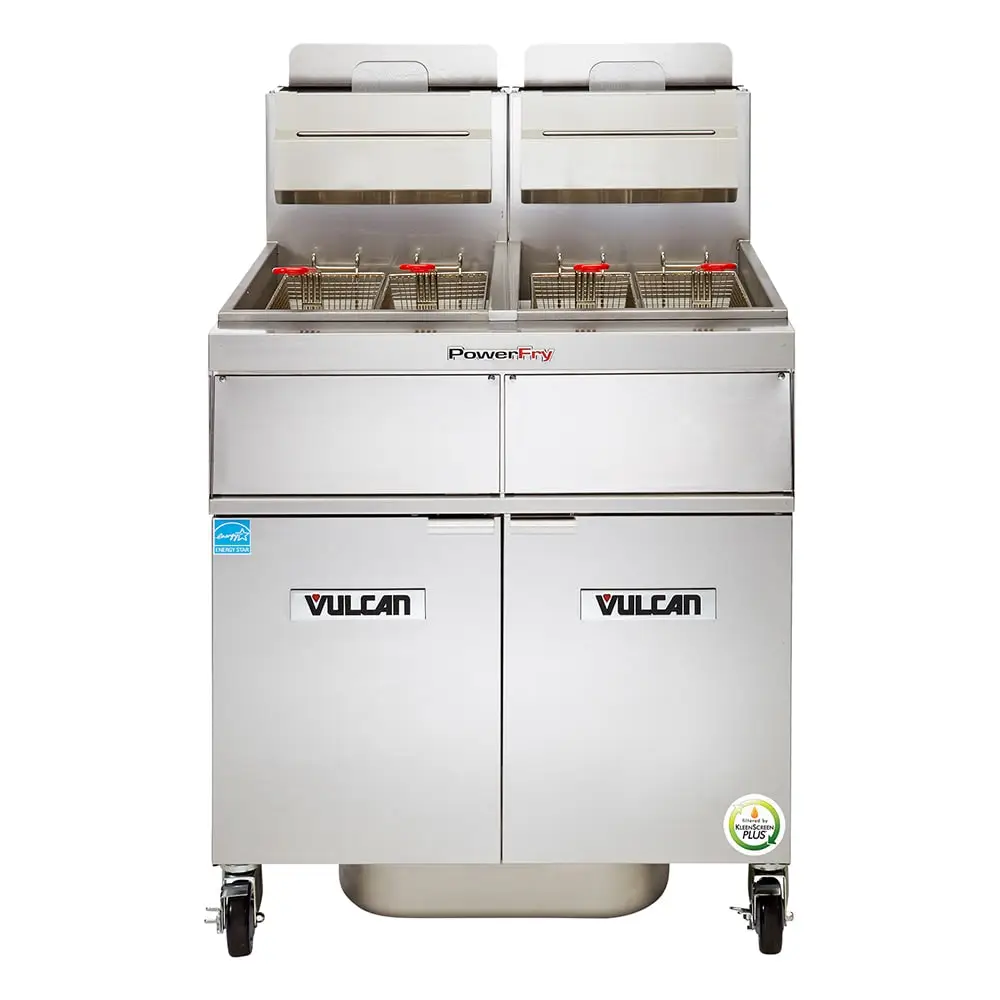

Vulcan 2TR85CF Gas Fryer - (2) 90 Lb Vats, Floor Model, Natural Gas

To double throughput and minimize the risk of flavor transfer, the Vulcan 2TR85CF freestanding gas fryer's 42-inch-wide by 34 19/50-inch-deep by 47 1/4-inch-tall body is built with two 90-pound-capacity frypots. Operators can adjust each fry tank's temperature, timers, fat-melt modes, and compensating or actual time with the corresponding computer controls. To ensure the frypots are operating at the desired settings, these controls are built with a digital display that provides a Fahrenheit or Celsius readout. This model features several mechanisms that reduce the hourly BTU output to minimize the risk of scorching oil. While the SoftStart® ignition system quickly warms the oil by outputting 45,000 BTUs per hour, the ThreePass® heat transfer system evenly disperses the heat throughout the oil to yield 60 percent cooking efficiency and 72 percent thermal efficiency. Once the set temperature is reached, the idle temperature setting only outputs 5,575 BTUs per hour to maintain consistent heat.
Both fry tanks are equipped with twin baskets that keep french fries, dumplings, fish sticks, and mozzarella sticks in place as the baskets are lowered and lifted. The baskets' handles are coated with plastic to minimize heat transfer for user safety. Capable of surviving high-volume back-of-house use, the cabinet and frypots are made of rigid, rust- and corrosion-resistant stainless steel. So it can be wheeled out of the way for repositioning or cleaning, it's built with four 6-inch casters that provide smooth mobility; two of the casters can be locked in place for stabilization.
To further extend oil life, the Vulcan 2TR85CF PowerFry3® high-efficiency gas fryer features a built-in KleenScreen PLUS® filtration system. Comprised of a 110-pound stainless steel filter pan, a stainless steel mesh filter screen, a suction tube, and a knurled knob, this system is housed on a pull-out drawer in the fryer's base. Operators can activate filtering by pressing a button, causing the motor and pump to circulate oil at an 8-gallon-per-minute rate to expedite filtration. Once filtered oil is collected in the pan, operators can close the filter drawer so the oil-return line can add filtered shortening back into the fry tanks.

Product Details





Part of the PowerFry3® TR85 series
Freestanding floor model with 2 batteries
(2) 90-lb. frypots
Energy-efficient ThreePass heat transfer system yields 60 percent cooking efficiency and 72 percent thermal efficiency
SoftStart ignition mechanism quickly heats oil
Idle temperature mode only outputs 5,575 BTUs per hour to maintain heat
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
Stainless steel cabinet and frypots
2 fryer baskets with plastic-coated handles per frypot (4 total)
36 1/4-in. working height
(4) 6-in. adjustable casters (2 with locks)
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 90,000 BTU

Computer Controls





Corresponding controls for each frypot
Electronic ignition
Operating temperature range: 200-390 degrees F
Digital character display in Fahrenheit or Celsius
3 melt modes
10 menu timers display product name and cook time
USB interface enables offline programming (software included)
Can cook with compensating time or actual time

Filtration System Details





Pull-out drawer assembly at the base of the fryer
110-lb.-capacity stainless steel filter pan
Stainless steel mesh filter screen establishes 270-sq.-in. filter area
Push-button activation
Pump and motor circulate oil at 8 GPM
Drain valve interlock switch automatically turns off burners as oil is drained
Hands-free oil-return tube adds oil back to the tanks when filter drawer is closed
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





42 in. W x 34 19/50 in. D (54 1/2 in. D when doors are opened) x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
180

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
180

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
700.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 180
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 180
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 700.00
