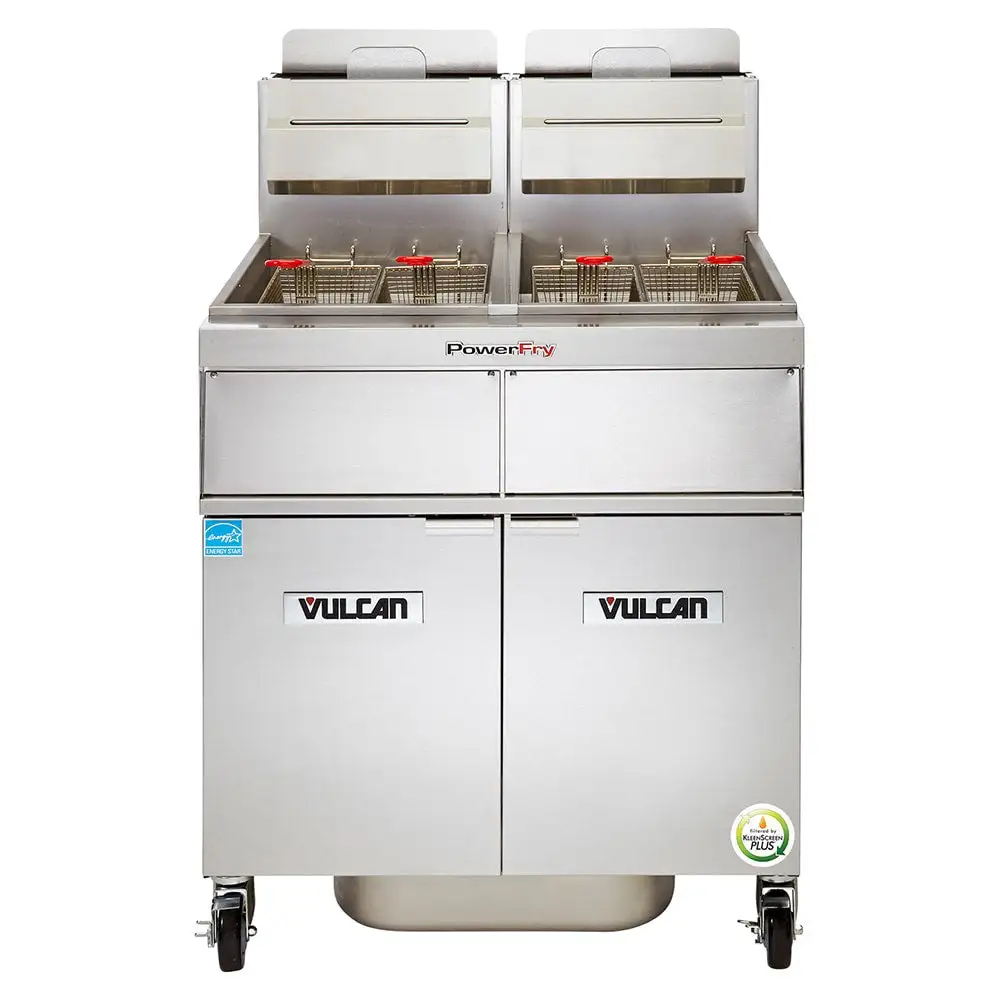

Vulcan 2TR85DF Gas Fryer - (2) 90 Lb Vats, Floor Model, Natural Gas

The Vulcan 2TR85DF commercial gas fryer is a two-battery freestanding unit comprised of two 90-pound-capacity frypots. Designed to conserve space in compact kitchens, it measures 42 inches wide by 34 19/50 inches deep by 47 1/4 inches tall. The base is mounted on four 6-inch casters to simplify transport when maintenance or cleaning are needed, and two of the casters can be locked in place to ensure stabilization during use. Both frypots have individual solid-state digital controls featuring a temperature range between 200 and 390 degrees Fahrenheit, compensating and actual cook times, two countdown timers, three fat-melt modes, and an automatic boil-out mode. To ensure the frypots' settings are correct, digital displays provide readouts in Fahrenheit and Celsius. The frypots come with twin fryer baskets that keep chicken, fish, tofu, and vegetables in place as they're lowered and lifted, and for user safety, the handles are coated with plastic to reduce the risk of burns.
Once the Vulcan 2TR85DF high-efficiency gas fryer's temperature is set, the SoftStart® ignition system quickly warms the oil. The ThreePass® heat transfer system evenly guides heat through the oil, consistently yielding 60 percent cooking efficiency and 72 percent thermal efficiency. To save energy while maintaining the previously set temperature, the idle temperature mode outputs 5,575 BTUs per hour. This unit features a KleenScreen PLUS® filtration unit built on a pull-out drawer in the unit's base to promote frequent oil filtration, extending its life. Operators can initiate a filtration cycle with the push of a button, and the motor and pump circulate oil at 8 gallons per minute to expedite the process. Its filtration pan can hold 110 pounds of oil, and when the filter drawer is closed, the oil-return tube automatically adds oil back to the fry tanks to eliminate hands-on tasks.

Product Details





Part of the PowerFry3® TR85 collection
Freestanding, 2-battery floor unit
(2) 90-lb. frypots
ThreePass heat transfer system evenly distributes heat for enhanced efficiency
SoftStart ignition mechanism rapidly heats oil upon startup
Idle temperature mode only outputs 5,575 BTUs per hour to maintain heat
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
Stainless steel cabinet and frypots
Twin fryer baskets featuring plastic-coated handles included with each frypot
36 1/4-in. working height
(4) 6-in. adjustable casters (2 with locks)
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 90,000 BTU

Solid-state Digital Controls





Each frypot includes individual controls
Electronic matchless ignition
Digital character display in Fahrenheit or Celsius
Operating temperature range: 200-390 degrees F
3 melt modes
2 countdown timers
Automatic boil-out mode
Option to cook with compensating time or actual time

Filtration System Details





Pull-out drawer assembly located in base of fryer
110-lb.-capacity stainless steel filter pan
Stainless steel mesh filter screen with 270-sq.-in. filter area
Filtration cycle activated with push of a button
Pump and motor circulate oil at 8 GPM
Drain valve interlock switch automatically turns off burners as oil is drained
Hands-free oil-return tube adds oil back to the tanks when filter drawer is closed
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





42 in. W x 34 19/50 in. D (54 1/2 in. D when doors are opened) x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
180

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
180

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
700.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 180
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 180
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 700.00
