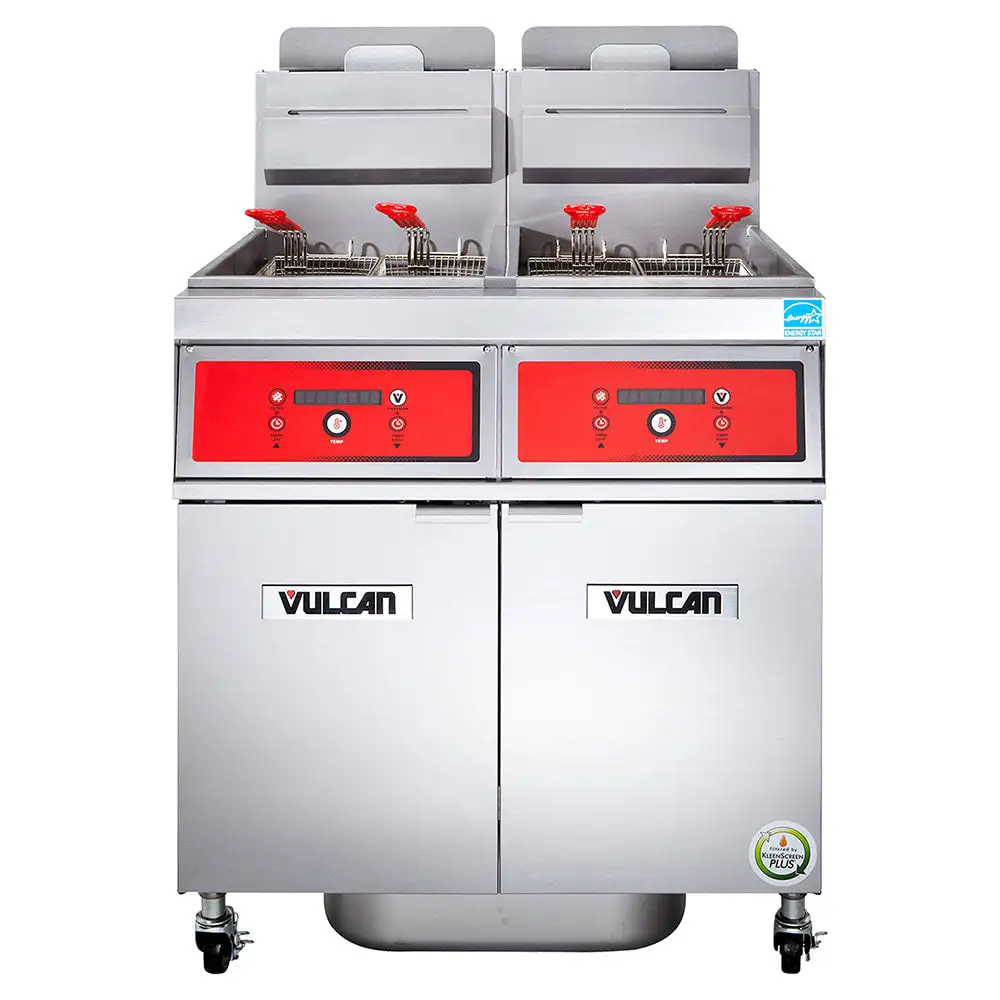

Vulcan 2VK45AF Gas Fryer - (2) 50 Lb Vats, Floor Model, Liquid Propane

Because it's part of the PowerFry5® series, the Vulcan 2VK45AF commercial gas fryer is built with an energy-efficient FivePass® heat transfer system that evenly distributes heat throughout oil to yield 78 percent thermal efficiency and 66 percent cooking efficiency. Its 50-pound frypots have separate solid-state analog knob controls that enable operators to set temperatures from 200 to 390 degrees Fahrenheit and initiate fat-melt modes. Once the temperature is set, the SoftStart® ignition system rapidly heats oil; the idle temperature setting only outputs 4,251 BTUs per hour to save energy while maintaining the set temperature. To maintain a comfortable kitchen environment, the flue temperature doesn't exceed 500 degrees Fahrenheit when the unit is operating at the maximum production rate.
The Vulcan 2VK45AF freestanding high-efficiency fryer's two fryers each include twin fryer baskets that keep breaded and battered contents contained during frying. To minimize the risk of heat transfer, their handles are plastic coated. The frypots and the cabinet are constructed of stainless steela€”a durable, rust- and corrosion-resistant metal that can simply be wiped clean. Its base features an integrated KleenScreen PLUS® filtration system on a pull-out drawer to promote frequent filtering; with the push of a button, this system automatically starts a filtration cycle, circulating 8 gallons of oil per minute. Its filter pan can hold 70 pounds of oil, and once the filter drawer is closed, the oil-return tube adds filtered shortening back into the frypots to streamline operation. Overall, this unit measures 31 inches wide by 30 13/100 inches deep by 47 1/4 inches tall and is mounted on four 6-inch casters that provide smooth mobility when repositioning is needed.

Product Details





Part of the PowerFry5 VK45 series
2-battery, freestanding floor model
(2) 50-lb. frypots
FivePass heat transfer system enhances efficiency by evenly distributing heat
SoftStart ignition mechanism quickly warms oil
Idle temperature mode outputs just 4,251 BTUs per hour to maintain heat
Flue temperature doesn't exceed 500 degrees F at maximum production rate
Hi-limit shutoff
Stainless steel cabinet and frypots
Includes 4 fryer baskets featuring plastic-coated handles (2 per frypot)
Establishes 36 1/4-in. working height
(4) 6-in. adjustable casters (2 with locks)
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 70,000 BTU

Solid-state Analog Knob Controls





Separate controls per fry tank
Operating temperature range: 200-390 degrees F
User-selectable fat-melt modes
Electronic ignition
Located behind cabinet doors

Filtration System Details





Pull-out drawer assembly in the base of the fryer
70-lb.-capacity stainless steel filter pan
Stainless steel mesh filter screen creates filter area from 270 to 350 sq. in.
Activate filtration cycle with push of a button
Pump and motor circulate oil at 8 GPM
Drain valve interlock switch automatically turns off burners during oil draining
Hands-free oil-return tube adds oil back to the tanks
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





31 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
100

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
100

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
31

Weight
530.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 100
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 100
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 31
Weight: 530.00
