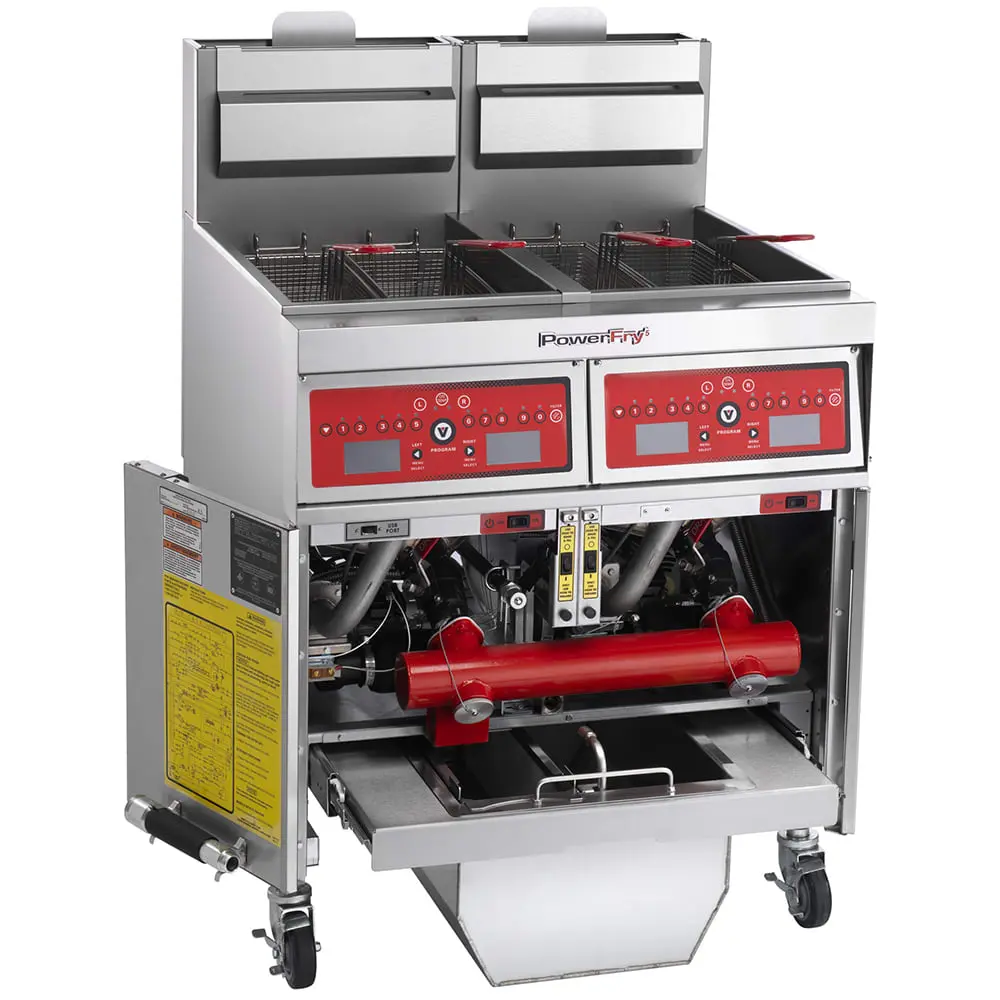

Vulcan 2VK45CF Gas Fryer - (2) 50 Lb Vats, Floor Model, Liquid Propane

The Vulcan 2VK45CF PowerFry5® commercial gas fryer's two 50-pound-capacity frypots have corresponding computer controls that enable users to set each frypot's temperature, timer, and melt mode to properly cook products with different requirements. To streamline operation, operators can program as many as 10 menu items, while the digital display provides a readout of the menu item name and cook time; items can be programmed offline with a USB system. Once temperatures are set between 200 and 390 degrees Fahrenheit, the SoftStart® ignition system quickly warms the oil to the desired temperature to save energy and reduce the chance of scorched oil. When it reaches the set temperature, the idle temperature setting maintains heat by outputting just 4,251 BTUs per hour to save energy. To yield 78 percent thermal efficiency and 66 percent cooking efficiency, its FivePass® heat transfer system evenly disperses heat throughout the oil.
Employees can work comfortably at this 31-inch-wide by 30 13/100-inch-deep by 47 1/4-inch-tall fryer because it creates a 36 1/4-inch working height. Users can lower breaded contents into the vats with the included fryer baskets, which feature plastic-coated handles to minimize heat transfer to promote safety. To protect users' hands from heat transfer the baskets' handles are coated with plastic. For lasting rust- and corrosion-resistant durability, the frypots and the cabinet are constructed of stainless steel. Because it's fitted with four 6-inch castersa€”two of which include locksa€”this fryer is simple to reposition and stabilize in place.

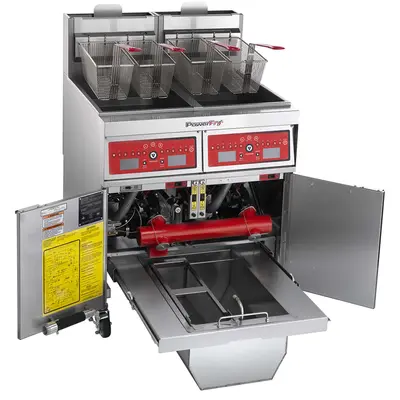

The KleenScreen PLUS® filtration system built into the base of the Vulcan 2VK45CF commercial gas fryer is positioned on an accessible pull-out drawer. To streamline operation, operators can initiate a filtration cycle with the push of a button, causing the motor and pump to circulate oil at 8 gallons per minute. As much as 70 pounds of oil can be emptied into the stainless steel filtration pan, and once oil is fully filtered, the oil-return tube adds it back into the frypots after the filter drawer is closed.

Product Details





Part of the PowerFry5 VK45 line
2-battery, freestanding unit
(2) 50-lb. frypots
Stainless steel cabinet and frypots
2 fryer baskets with plastic-coated handles per frypot (4 total)
36 1/4-in. working height
(4) 6-in. adjustable casters (2 with locks)
FivePass heat transfer system yields 66 percent cooking efficiency and 78 percent thermal efficiency
SoftStart ignition system quickly warms oil
Idle temperature mode maintains set temperature at just 4,251 BTUs per hour
Flue temperature doesn't exceed 500 degrees F at maximum production rate
Hi-limit shutoff
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 70,000 BTU

Computer Controls





Operating temperature range: 200-390 degrees F
Fahrenheit or Celsius digital character display
10 menu timers display product name and cook time
Items can be programmed offline using a USB interface (software included)
Electronic ignition
Can cook with compensating time or actual time
3 melt modes

Filtration System Details





Pull-out drawer assembly
70-lb.-capacity stainless steel filter pan
Stainless steel mesh filter screen establishes filter area from 270-350 sq. in.
Activate filtration cycle with the push of a button
Pump and motor circulate oil at 8 GPM
Drain valve interlock switch automatically turns off burners during oil draining
Hands-free oil-return tube adds oil back to tanks
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





31 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
100

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
100

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
31

Weight
530.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 100
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 100
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 31
Weight: 530.00
