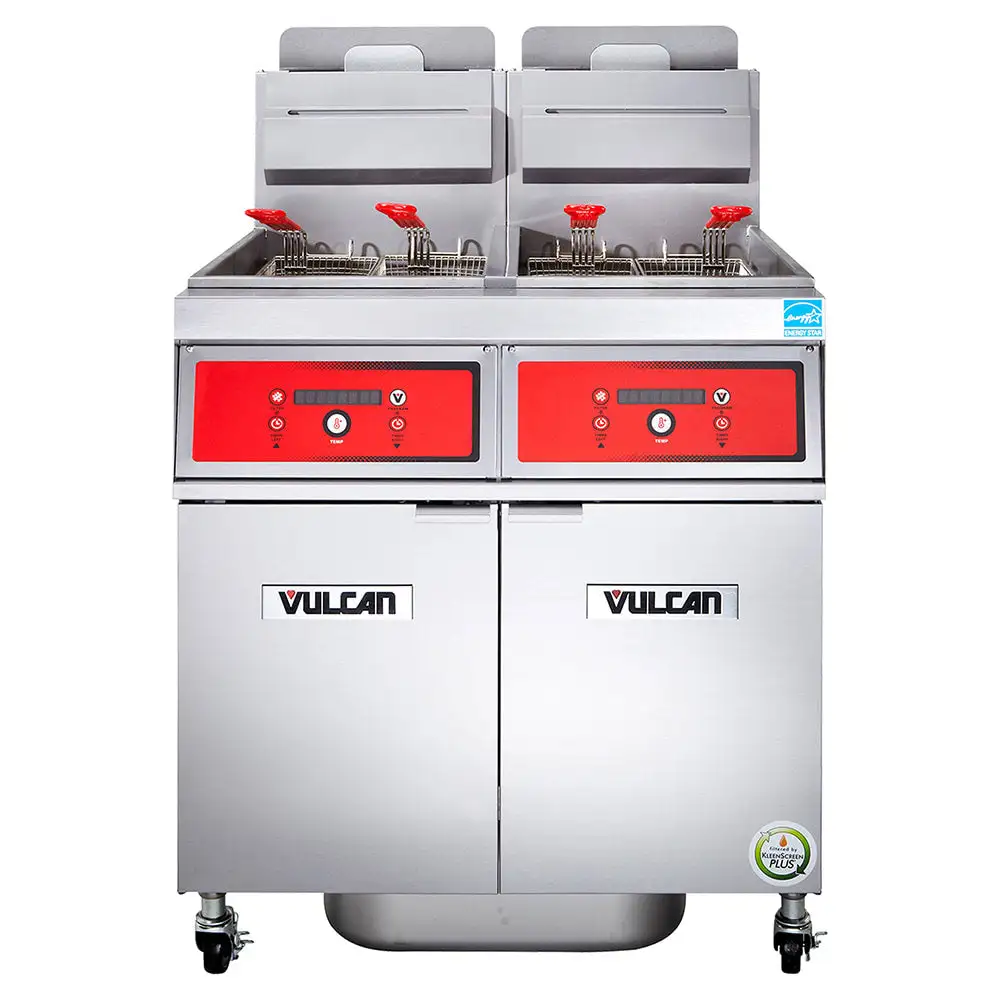

Vulcan 2VK45AF Gas Fryer - (2) 50 Lb Vats, Floor Model, Natural Gas

Because the Vulcan 2VK45AF PowerFry5® commercial gas fryer is built two 50-pound-capacity frypots, operators can fry different products simultaneously, increasing throughput and eliminating worries of flavor transfer. Each frypot has independent solid-state analog knob controls that facilitate setting the temperature between 200 and 390 degrees Fahrenheit and selecting from various fat-melting modes. By using energy-efficient FivePass® heat transfer system, this fryer uniformly distributes heat throughout the oil, yielding 66 percent cooking efficiency and 78 percent thermal efficiency. The SoftStart® ignition system causes the unit to only output 35,000 BTUs per hour rather than 70,000 BTUs to warm the oil, while the idle temperature mode outputs 4,251 BTUs per hour when maintaining heat.
While these integrated mechanisms protect oil from scorching, the built-in KleenScreen PLUS® filtration system can filter oil with the push of a button to prolong its life. This system is built on a pull-out drawer and features a 70-pound-capacity stainless steel filtration pan. The motor and pump circulate oil at 8 gallons per minute, and the drain interlock switch automatically shuts off the burners as oil drains. To eliminate hands-on tasks, the oil-return tube automatically adds filtered shortening back to the frypots once the filter drawer is closed.
The Vulcan 2VK45AF high-efficiency fryer measures 31 inches wide by 30 13/100 inches deep by 47 1/4 inches tall and establishes a comfortable 36 1/4-inch working height. Both frypots come with twin fryer baskets that contain foods in place when they're submerged into the oil and lifted from the vats. To protect hands from heat transfer, the baskets' handles are coated with plastic. Capable of withstanding high-volume use in fast-paced restaurants, the frypots and cabinet are constructed of durable rust- and corrosion-resistant stainless steel. Operators can smoothly reposition this unit as needed because it's built with four 6-inch casters; two casters can be locked in place for stabilization.

Product Details





Part of the PowerFry5 VK45 collection
Freestanding floor model with 2 batteries
(2) 50-lb. frypots
FivePass heat transfer system yields 78 percent thermal efficiency and 66 percent cooking efficiency
SoftStart ignition system quickly warms oil
Idle temperature mode only outputs 4,251 BTUs per hour to maintain set heat
Flue temperature doesn't exceed 500 degrees F at maximum production rate
Hi-limit shutoff mechanism
Stainless steel cabinet and frypots
4 fryer baskets with plastic-coated handles included (2 per frypot)
36 1/4-in. working height
(4) 6-in. adjustable casters (2 with locks)
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 70,000 BTU

Solid-state Analog Knob Controls





Independent controls per fry tank
Located behind cabinet doors
Operating temperature range: 200-390 degrees F
Fat-melt modes are user selected
Electronic ignition

Filtration System Details





Pull-out drawer assembly in fryer base
70-lb.-capacity stainless steel filter pan
Stainless steel mesh filter screen with filter area from 270 to 350 sq. in.
Push-button activated
Pump and motor circulate oil at 8 GPM
Drain valve interlock switch automatically turns off burners during oil draining
Hands-free oil-return tube adds oil back to the tanks
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





31 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
100

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
100

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
31

Weight
530.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 100
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 100
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 31
Weight: 530.00
