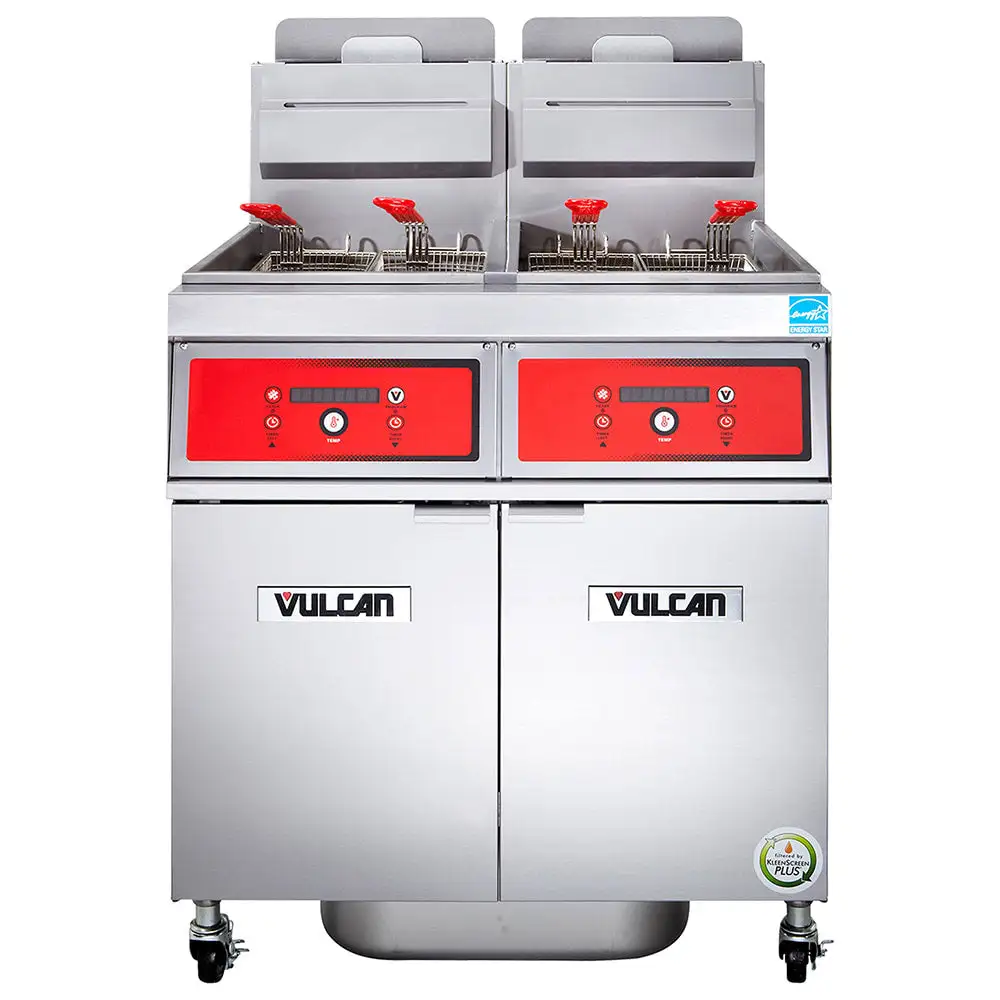

Vulcan 2VK45DF Gas Fryer - (2) 50 Lb Vats, Floor Model, Liquid Propane

To properly fry chicken, fish filets, okra, pickles, and mozzarella sticks, both the Vulcan 2VK45DF freestanding gas fryer's frypots have independent digital solid-state controls. Operators can electronically ignite the units, set temperature from 200 to 390 degrees Fahrenheit, initiate one of three melt modes, activate two countdown timers, and start an automatic boil-out mode. To enhance energy efficiency, it's part of the PowerFry5® series, meaning it's built with a FivePass® heat transfer system. This mechanism uniformly guides heat through oil to achieve 78 percent thermal efficiency and 66 percent cooking efficiency. To initially heat oil, this unit uses the SoftStart® ignition system, quickly warming it to reduce the risk of scorching. Once the unit reaches the set temperature, it maintains the heat while saving energy by using just 4,251 BTUs per hour to conserve energy.
Great for medium- and high-volume frying, each of the frypots can hold 50 pounds of oil. To keep breaded foods in place during the frying process, each frypot includes twin fryer baskets with plastic-coated handles that minimize heat transfer to protect staff's hands from burns. This 31-inch-wide by 30 13/100-inch-deep by 47 1/4-inch-tall fryer's stainless steel construction resists rusting and corroding, while its 6-inch casters simplify transport when repositioning is required.
Employees can press a button to initiate a filtration cycle for the Vulcan 2VK45DF high-efficiency commercial fryer's vats. The KleenScreen PLUS® filtration system is housed at the base of the cabinet on a pull-out drawer for enhanced accessibility; its drain interlock switch automatically turns off the burners when the oil is draining. By circulating oil at an 8-gallon-per-minute rate, the pump and oil expedite the filtration process. Its stainless steel mesh filter can filter debris from both sides, while the filter pan can hold 70 pounds of oil. To add filtered shortening back into the unit with the oil-return tube, users can simply close the filter drawer.

Product Details





Part of the PowerFry5 VK45 collection
Freestanding floor model
2 batteries
(2) 50-lb. frypots
Stainless steel cabinet and frypots
4 fryer baskets featuring plastic-coated handles (2 per frypot)
Establishes 36 1/4-in. working height
(4) 6-in. adjustable casters (2 with locks)
FivePass heat transfer system yields 66 percent cooking efficiency and 78 percent thermal efficiency
SoftStart ignition system quickly heats oil upon startup
Idle temperature mode outputs just 4,251 BTUs per hour to maintain set temperature
Flue temperature doesn't exceed 500 degrees F at maximum production rate
Hi-limit shutoff mechanism
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 70,000 BTU

Solid-state Digital Controls





Electronic matchless ignition
Fahrenheit or Celsius digital character display
Operating temperature range: 200-390 degrees F
3 melt modes
2 countdown timers
Automatic boil-out mode
Can cook with compensating time or actual time

Filtration System Details





Positioned on pull-out drawer in base
70-lb.-capacity stainless steel filter pan
Stainless steel mesh filter screen provides 270 to 350-sq.-in. filtration area
Push-button activated filtration cycle
Pump and motor circulate oil at 8 GPM
Drain valve interlock switch automatically turns off burners during oil draining
Hands-free oil-return tube adds oil back to the tanks
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





31 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
100

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
100

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
31

Weight
530.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 100
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 100
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 31
Weight: 530.00
