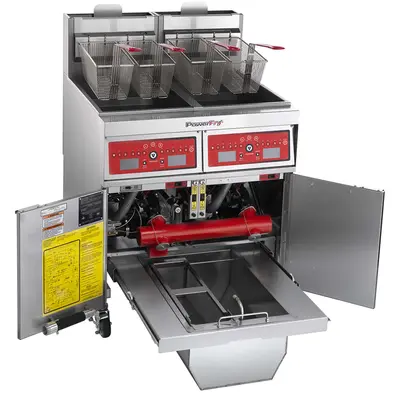

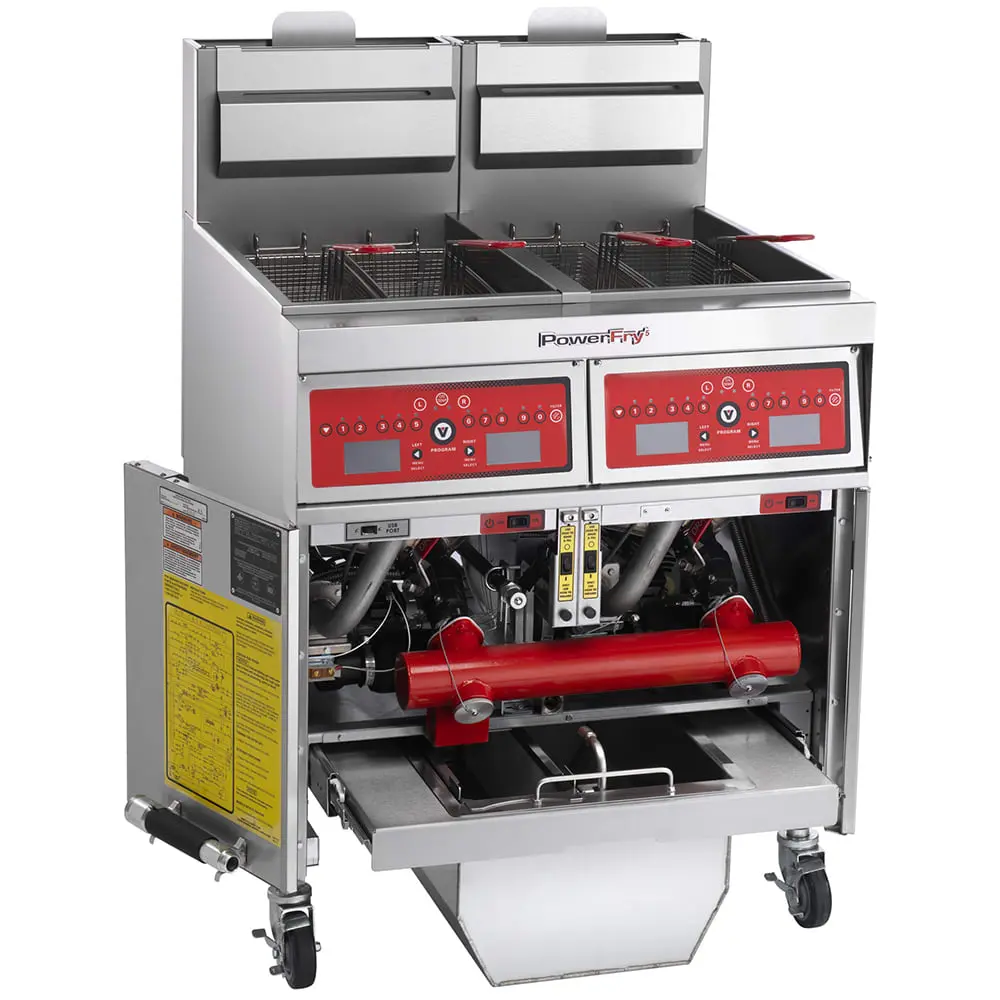

Vulcan 2VK45CF Gas Fryer - (2) 50 Lb Vats, Floor Model, Natural Gas

Sized to create a 36 1/4-inch working height, the Vulcan 2VK45CF freestanding commercial gas fryer measures 31 inches wide by 30 13/100 inches deep by 47 1/4 inches tall. Its two 50-pound-capacity frypots enable users to fry products with varying cooking requirement simultaneously without flavor transfer. Both fryers come with fryer baskets that contain contents as they're lowered in the vats, fried, and removed from the oil; for user safety, the baskets' handles are plastic coated. Designed to survive high-volume back-of-house use, this unit is constructed of durable, rust- and corrosion-resistant stainless steel. Its base is equipped with four 6-inch casters that provide smooth mobility, and two of these casters can be locked for stability during use.
Both frypots have independent computer controls that enable operators to set temperatures from 200 to 390 degrees Fahrenheit, initiate melt modes, and program as many as 10 menu timers. Digital displays provide accurate readouts so users can ensure fryers are set to the correct modes. To enhance this natural-gas-powered unit's energy efficiency, its FivePass® heat transfer system uniformly disperses heat throughout the oil, yielding 78 percent thermal efficiency and 66 percent cooking efficiency. When oil is initially heated, the SoftStart® ignition system quickly warms it to the desired temperature. Once the set temperature is reached, the idle temperature mode maintains the heat by outputting only 4,251 BTUs per hour.
To extend oil life and enhance its quality, the Vulcan 2VK45CF high-efficiency fryer's KleenScreen PLUS® filtration system can be activated with the push of a button. This system's motor and pump circulate oil at 8 gallons per minute, and 70 pounds of oil can be emptied into the stainless steel filter pan. To eliminate hands-on tasks, the oil-return tube adds filtered oil back in the frypots once the filter drawer is closed.

Product Details





Part of the PowerFry5 VK45 collection
Freestanding unit with 2 batteries
(2) 50-lb. frypots
Frypots and cabinets made of stainless steel
Includes 4 fryer baskets with plastic-coated handles (2 per frypot)
36 1/4-in. working height
(4) 6-in. adjustable casters (2 with locks)
FivePass heat transfer system yields 66 percent cooking efficiency and 78 percent thermal efficiency
SoftStart ignition system quickly heats oil
Idle temperature mode only outputs 4,251 BTUs per hour to maintain set temperature
Flue temperature won't exceed 500 degrees F at maximum production rate
Hi-limit shutoff
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 70,000 BTU

Computer Controls





Operating temperature range: 200-390 degrees F
Digital character display in Fahrenheit or Celsius
10 menu timers display product name and cook time
Items can be programmed offline using a USB interface (software included)
Electronic ignition
Can cook with compensating time or actual time
3 melt modes

Filtration System Details





Pull-out drawer assembly
70-lb.-capacity stainless steel filter pan
Stainless steel mesh filter screen provides filtration area from 270 to 350-sq.-in.
Filtration cycle is push-button activated
Pump and motor circulate oil at 8 GPM
Drain valve interlock switch automatically turns off burners during oil draining
Hands-free oil-return tube adds oil back to the tanks
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





31 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
100

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
100

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
31

Weight
530.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 100
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 100
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 31
Weight: 530.00
