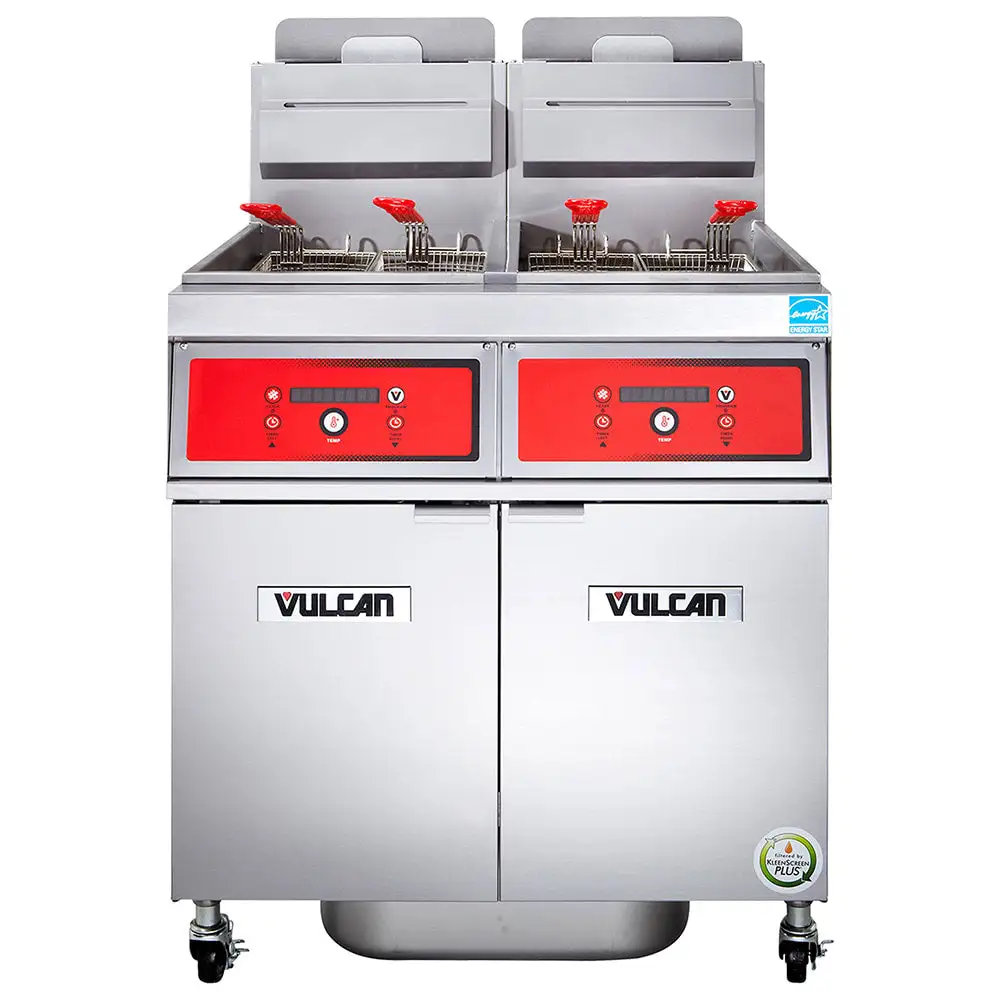

Vulcan 2VK45DF Gas Fryer - (2) 50 Lb Vats, Floor Model, Natural Gas

For even heat distribution and quick temperature recovery, the Vulcan 2VK45DF gas fryer features a FivePass® heat transfer system. With its two fry baskets, operators can prepare large quantities of fried chicken, potatoes, or mozzarella sticks in its two stainless steel vats, which can hold 50 pounds of oil each. For user safety, the fry baskets sport plastic-coated handles. To turn on the fryer, operators can use its electronic matchless ignition, activating the SoftStart® system, which operates at 70,000 BTUs at start-up and gradually increases to 140,000 BTUs to extend oil life. When not in use, it maintains its temperature at an idle rate of 8,502 BTUs for energy efficiency. It sits on four 6-inch casters for mobility; two of these casters can be locked in place.
Built with a digital display, temperatures can be set and maintained between 200 to 390 degrees Fahrenheit. Solid shortening can be melted to a thin oil consistency with its three melt modes, and this unit has two countdown timersa€”one for each vata€”that alert employees when food is fully cooked. The cold zone is V-shaped, easing cleaning and using less oil. For simplified and thorough cleaning, the automatic boil-out mode cleans the fryer with boiling water and a cleaning solution after the oil has been emptied. The included clean-out rod removes sediment from the fryer's drain, while the tank brush scrubs underneath the burner tubes. Because it features a hi-limit shut off, the fryer stops gas flow if the oil gets too hot, reducing the risk of burnt oil and fires.
The Vulcan PowerFry5® fryer's Kleenscreen Plus® filtration system offers a one-touch push button switch to engage its pump and motor, and the 1 1/4-inch full-port, ball-type drain valve has an interlock switch that turns gas burners off when the oil is draining. Its seamless filter pan is constructed of 18-gauge stainless steel and has a stainless steel mesh filter screen that filters from two sides. This filtration system pumps 8 gallons per minute within its 270-square-inch filter area. For simple lifting, the filter pan weighs 12 1/2 pounds. Overall, this unit measures 31 inches wide by 30 1/8 inches deep by 47 1/4 inches high and sits at a 36 1/4-inch working height for comfortable use.

Product Details





Part of the PowerFry5 VK45 series
45- to 50-lb. capacity per vat
Freestanding
Stainless steel tank and cabinet
FivePass heat transfer system yields 66 percent cooking and 78 percent thermal efficiency
SoftStart ignition system uses 70,000 BTU/hr. at startup to prolong oil life
8,502 BTU/hr. idle rate
36 1/4-in. working height
1 1/4-in. full-port ball-type drain valve
Twin fry baskets with plastic-coated handles
(4) 6-in. adjustable casters (2 locking)
Electronic matchless ignition
Includes tank brush and clean-out rod
140,000 BTU/hr.
Hi-limit shut off
Requires 6-in. clearance at both sides and rear to combustible construction
Requires 16-in. clearance to open-top burners

Solid-state Digital Controls





Operates between 200 to 390 degrees F
Digital display with 3 melt modes
2 countdown timers can be switched between actual and compensating time
Celsius or Fahrenheit readouts
Auto boil-out mode

Kleenscreen Plus Filtration System





Drain valve interlock switch automatically turns off gas burners when draining oil
Seamless 18-ga. stainless steel filter pan
70-lb. frying compound capacity 2. Stainless steel mesh filter screen filters from two sides

270-sq.-in. filter area
Pumps at 8 gal./min.
One-touch push-button switch engages pump and motor
6-in. high-temperature discard hose
Filter pan weighs 12 1/5 lb.

Dimensions & Utilities





Overall: 31 in. W x 30 1/8 in. D x 47 1/4 in. H
Natural gas
7 A, 1/3 HP
115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
100

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
100

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
31

Weight
530.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 100
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 100
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 31
Weight: 530.00
