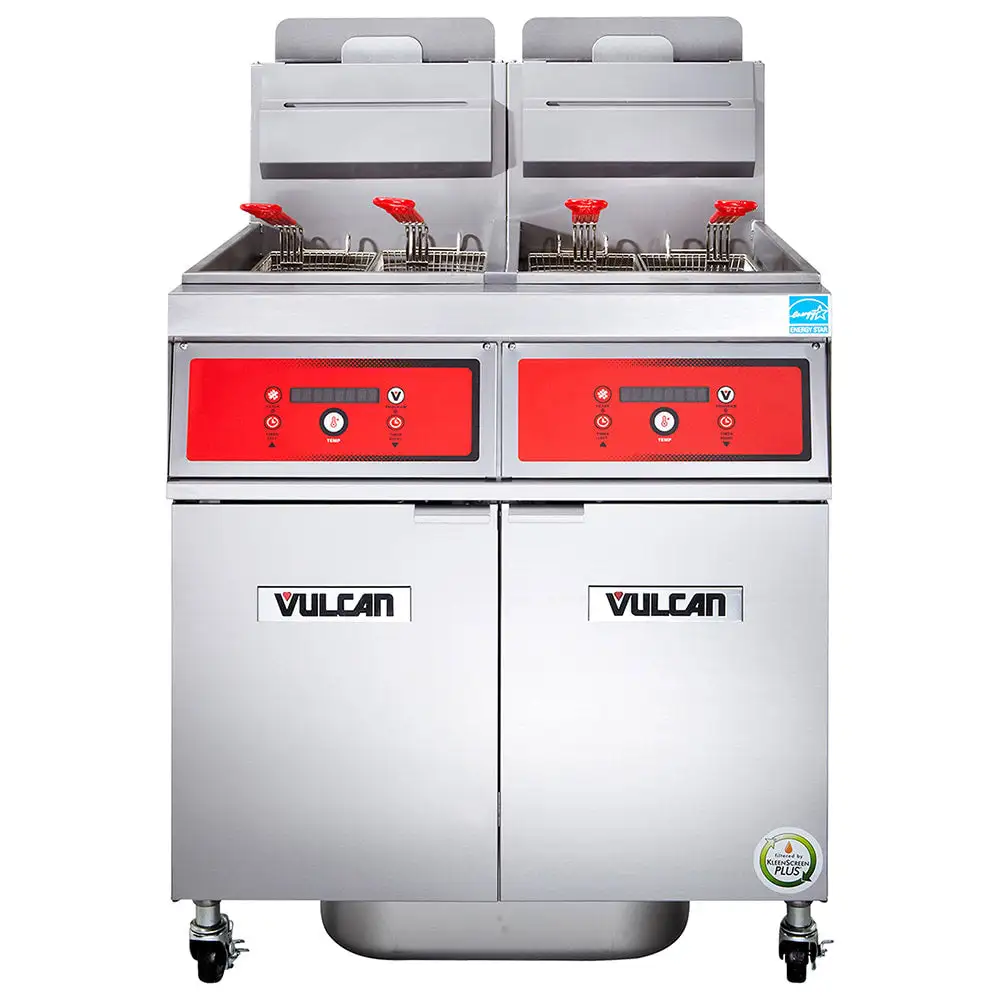

Vulcan 2VK65CF Gas Fryer - (2) 70 Lb Vats, Floor Model, Natural Gas

Designed with programmable computer controls, the Vulcan 2VK65CF gas fryer features a digital character display, ten menu timers, and offline menu programming that can be uploaded through a USB port. Its three melt modes slowly heat the fryer and can melt thicker substances, such as solid shortening. This unit operates at temperatures between 200 to 390 degrees Fahrenheit and is built with two vats that can hold 65 to 70 pounds each. Its twin fry baskets' handles are coated in plastic to minimize heat transfer and efficiently cook large quantities of chicken, potatoes, and onion rings. Heat can be evenly distributed through the oil with the FivePass® heat transfer system, which also provides a fast recovery after cold or frozen foods are dropped in the vats.

For optimal oil heat, the Vulcan 2VK65CF PowerFry5® SoftStart® ignition system first operates at 70,000 BTU, gradually increasing to 160,000 BTU for operation. For energy efficiency during slow periods, it has an idle rate of 9,604 BTUs. The cold zone is V-shaped, collecting sediments at the bottom without burning them and affecting the oil's taste. This 31-inch-wide by 30 1/8-inch-deep by 47 1/8-inch-high model is made of stainless steel to withstand rigorous use. It has a hi-limit shut off to stop gas intake when oil gets too hot, reducing the risk of fires. For comfortable use, it sits at a 36 1/4-inch working height. To filter out sediment and debris, it uses a Kleenscreen Plus® filtration system, which provides a stainless steel mesh filter screen that filters from two sides and an 18-gauge stainless steel filter pan. Operators can move this piece for cleaning or maintenance because it sits on four 6-inch castersa€”two of which are lockable for stationary use. This freestanding model comes with a clean-out rod and a tank brush to ease thorough cleaning.

Product Details

Part of the PowerFry5 VK 65 series

65- to 70-lb. capacity per tank
2 battery design
Freestanding design
Stainless steel tank and cabinet
FivePass heat transfer system distributes heat evenly in oil for quick recovery
Yields 68 percent cooking and 78 percent thermal efficiency
Twin fry baskets with plastic-coated handles for user safety
36 1/4-in. working height
6-in. clearance required at both sides and rear adjacent to combustible construction
Requires 16-in. clearance to open-top burners
V-shaped cold zone
Hi-limit shut off
Includes clean-out rod and tank brush
(4) 6-in. adjustable casters (2 locking)
SoftStart ignition system operates with 70,000 BTU/hr. during startup to prolong oil life
Idle rate: 9,604 BTU/hr.
Overall output: 160,000 BTU/hr.
1 1/4-in. full-port ball-type drain valve

Programmable Computer Controls

Digital character display
10 menu timers display product name and cook times
Offline menu programming can be uploaded through USB (software included)
Temperature control between 200 to 390 degrees F
Celsius or Fahrenheit digital display
Timers offer compensating or actual time
3 melt modes

Kleenscreen Plus Filtration System

Drain valve interlock switch automatically powers off gas burners if drain valve is opened
Seamless filter pan made of 18-ga. stainless steel
Frying compound capacity: 110 lb.

Stainless steel mesh filter screen filters from two sides
270-sq.-in. filter area
Pumps at 8 gal./min.
One-touch push button switch engages pump and motor
6-in. high-temperature discard hose
Filter pan weighs 20 1/2-lb.

Dimensions & Utilities





Overall: 42 in. W x in. 30 1/8 D x 47 1/8 in. H
Natural gas
7 A, 1/3 HP
115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
140

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
140

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
696.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 140
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 140
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 696.00
