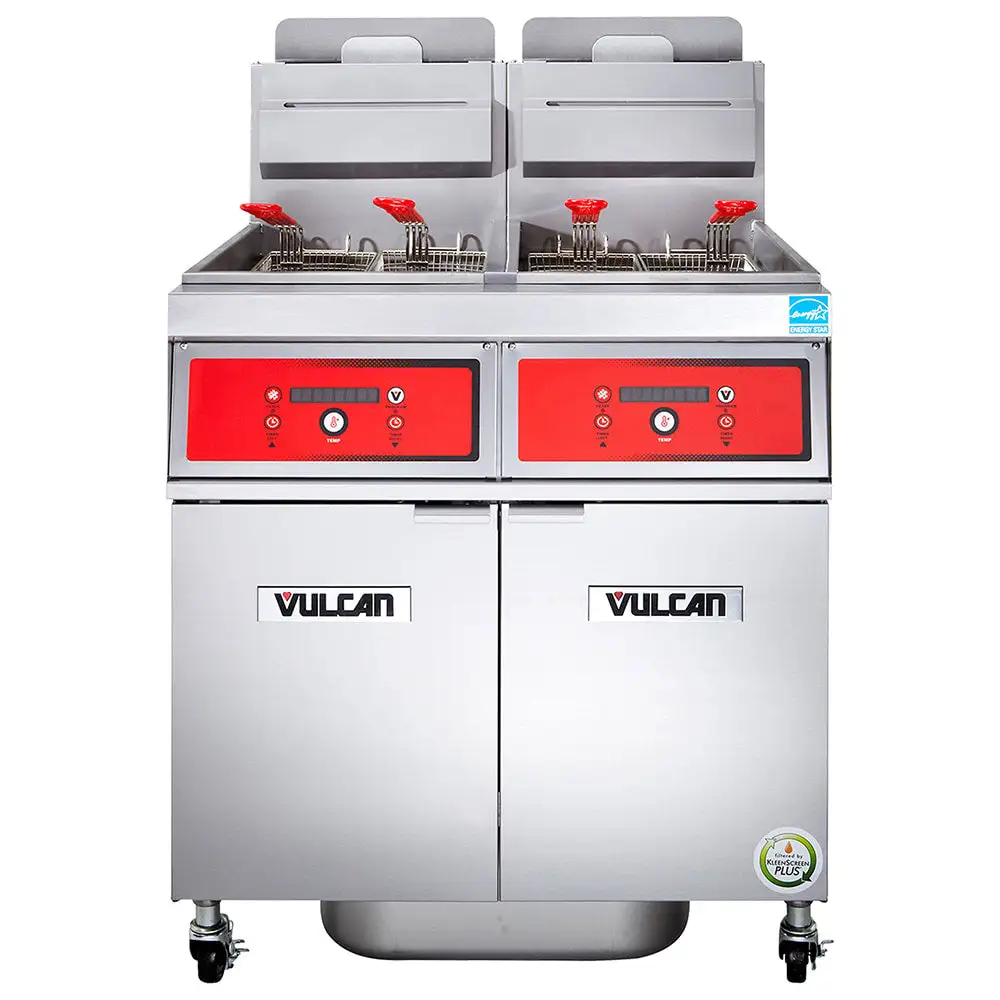

Vulcan 2VK65CF Gas Fryer - (2) 70 Lb Vats, Floor Model, Liquid Propane

When powered on, the Vulcan 2VK65CF gas fryer's SoftStart® ignition system starts at 70,000 BTU per hour and gradually increases to 160,000 BTUs; during off-peak hours, it sits in an idle state at 9,604 BTUs. Its FivePass® heat transfer system distributes heat evenly throughout the oil, providing a fast recovery after dropping in cold or frozen foods. For durability, the tank and cabinet are constructed of stainless steel. It's built with two vatsa€”each holds 65 to 70 poundsa€”and has twin fry baskets with plastic-coated handles to decrease heat transfer. The V-shaped cold zone collects sediment and can be cleaned easily with the clean-out rod. This freestanding model measures 42 inches wide by 30 1/8 inches deep by 47 1/8 inches high and is mounted on four 6-inch casters, two of which can be locked for stationary or mobile use.
Operators can comfortably use the Vulcan 2VK65CF PowerFry5® fryer because sits at a 36 1/4-inch working height. Its hi-limit shut off stops gas consumption when oil gets too hot to reduce fire risk. For simple operation, its programmable computer controls offer a digital character display, ten menu timers, and offline menu programming, which can be uploaded through a USB. It operates between 200 to 390 degrees and has three melt modes to accommodate solid shortening. Designed with the Kleenscreen Plus® filtration system, its stainless steel mesh filter screen filters from two sides and has a filter pan constructed of 18-gauge stainless steel.

Product Details





Part of the PowerFry5 VK65 series
Vat capacity: (2) 65 to 70 lb.
Freestanding with 2 batteries
Cabinet and tank made of stainless steel
FivePass heat transfer system evenly heats oil for fast recovery
Yields 68 percent cooking and 78 percent thermal efficiency
Plastic-coated handles on twin fry baskets
36 1/4-in. working height
V-shaped cold zone collects sediment to prevent burning
Hi-limit shut off stops gas intake when oil is too hot
Included clean-out rod and tank brush ease cleaning
(4) 6-in. adjustable casters (2 locking)
SoftStart ignition system functions at 70,000 BTU/hr. during startup to extend oil life
Idle rate: 9,604 BTU/hr.
Overall output: 160,000 BTU/hr.
1 1/4-in. full-port ball-type drain valve
6-in. clearance is required at both sides and rear to combustible materials
Requires 16-in. clearance to open-top burners

Programmable Computer Controls





Digital character display
10 menu timers display product name and cook times
Offline menu programming can be uploaded through USB (software included)
Temperature control between 200 to 390 degrees F
Digital temperature display in Fahrenheit or Celsius
Timers can be changed to actual or compensating time to accommodate temperature fluctuations
3 melt modes

Kleenscreen Plus Filtration System





Drain-valve interlock switch automatically turns off gas burners if drain valve is opened
Seamless 18-ga. stainless steel filter pan weighs 20 1/2 lbs.
Frying compound capacity: 110 lb. 2. Stainless steel mesh filter screen filters from two sides

270-sq.-in. filter area
8 gal./min. pump
One-touch push-button switch engages pump and motor
6-in. high-temperature discard hose

Dimensions & Utilities





Overall: 42 in. W x 30 1/8 in. D x 47 1/8 in. H
LP gas
7 A, 1/3 HP
115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
140

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
140

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
696.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 140
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 140
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 696.00
