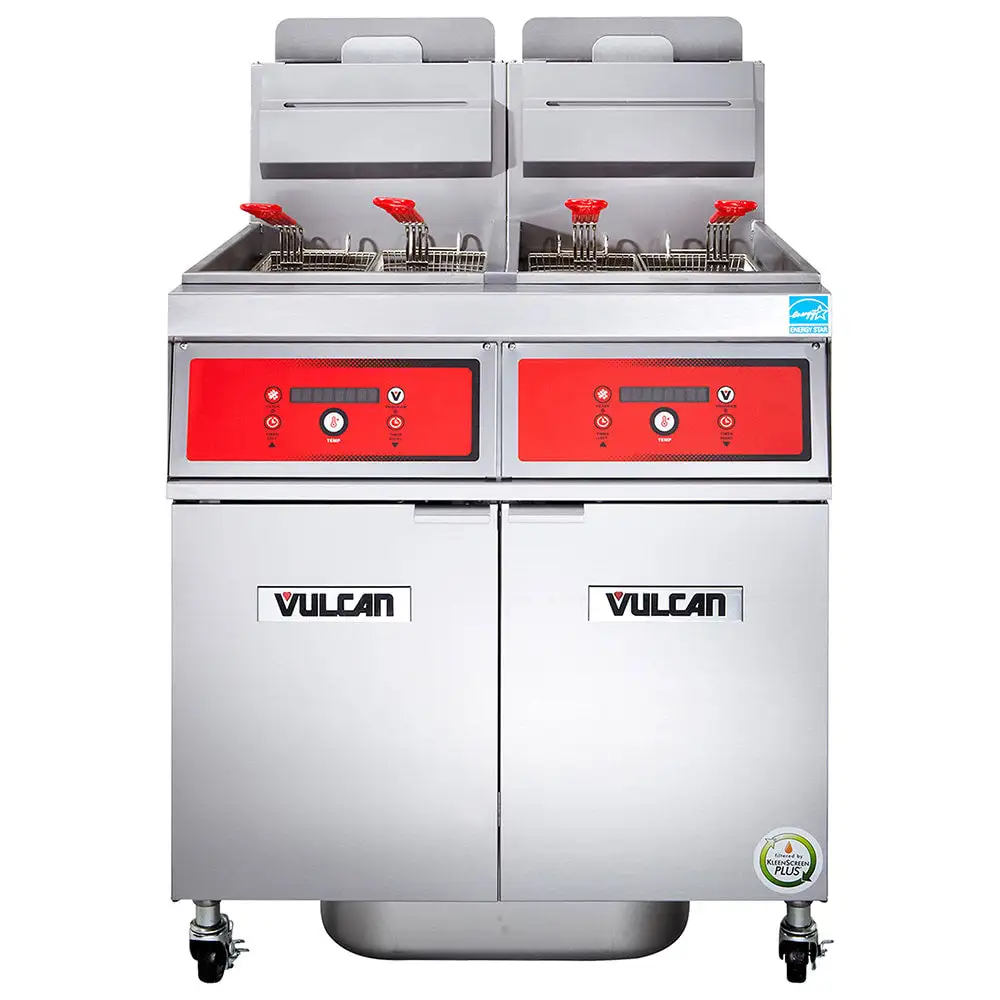

Vulcan 2VK65AF Gas Fryer - (2) 70 Lb Vats, Floor Model, Liquid Propane

Designed with two 65- to 70-pound capacity tanks, the Vulcan 2VK65AF PowerFry® fryer is suitable for cooking large quantities of chicken wings, fries, and onion rings. This freestanding configuration sits at a 36 1/4-inch working height for comfortable use, and these tanks and cabinets are constructed of durable stainless steel to withstand rigorous use in demanding kitchens. Its twin fry baskets' handles are coated with plastic to minimize heat transfer and reduce user burns. Because of its FivePass® heat transfer system, heat is evenly spread throughout the oil, enabling quick recovery after cold or frozen foods are dropped. This system yields 68 percent cooking and 78 percent thermal efficiency. Built with a V-shaped cold zone, sediment can be collected without burning and scrubbed out with the included clean-out rod.
To prolong oil life, this unit's SoftStart® ignition system operates at 70,000 BTUs per hour during startup and gradually increases to 160,000 BTUs. During slow hours, it sits at an idle rate of 9,604 BTUs, while its hi-limit shut-off reduces fire risks by reducing gas flow when the fryers get too hot. The solid-state analog controls are placed behind the cabinet door and can set temperatures between 200 to 390 degrees Fahrenheit. Its user-selectable fat melt modes can heat the fry tanks slowly and liquify solid shortening.
The Vulcan 2VK65AF gas fryer features a 1 1/4-inch full-port ball-type drain valve with an interlock switch, which turns off gas burners when the valve is opened. Its Kleenscreen Plus® filtration system's filter pan is constructed of seamless, 18-gauge stainless steel that weighs 20 1/2 pounds. Its stainless steel mesh filter screen strains from two sides for optimal filtration. Overall, this unit measures 42 inches wide by 30 1/8 inches deep by 47 1/4 inches high and is placed on four 6-inch casters, easing mobility for maintenance and cleaning; two casters lock for stationary use.

Product Details





Part of the PowerFry5 VK65 series
Tank capacity: (2) 65 to 70 lb.
Twin fry baskets feature plastic-coated handles for user safety
Freestanding structure
Tank and cabinet are stainless steel
FivePass heat transfer system evenly distributes heat for quick recovery
V-shaped cold zone
Yields 68 percent cooking and 78 percent thermal efficiency
SoftStart ignition system uses 70,000 BTU/hr. to extend oil life during start up
9,604 BTU/hr. idle rate
160,000 BTU/hr. input
Hi-limit shut off
Tank brush and clean-out rod included
(4) 6-in. adjustable casters (2 locking)
36 1/4-in. working height
1 1/4-in. full-port ball-type drain valve
Requires 6-in. clearance at both sides and rear to combustible construction
Requires 16-in. clearance to open-top burners

Solid-state Analog Control





Knob control behind door
Maintains temperatures between 200 to 390 degrees F
User-selectable fat melt modes
Two countdown timers can use compensating or real time
Digital temperature displays can show Fahrenheit and Celsius
Electronic ignition

Kleenscreen Plus Filtration System





Drain valve interlock switch automatically turns off gas burners when draining oil
Seamless 18-ga. stainless steel filter pan
110-lb. frying compound capacity 2. Stainless steel mesh filter screen filters from two sides

270-sq.-in. filter area
Pumps at 8 gal./min.
One-touch push-button switch engages pump and motor
6-in. high-temperature discard hose
20 1/2-lb. filter pan

Dimensions & Utilities





Overall: 42 in. W x 30 1/8 in. D x 47 1/4 in. H
LP gas
7 A, 1/3 HP
115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
140

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
140

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
696.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 140
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 140
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 696.00
