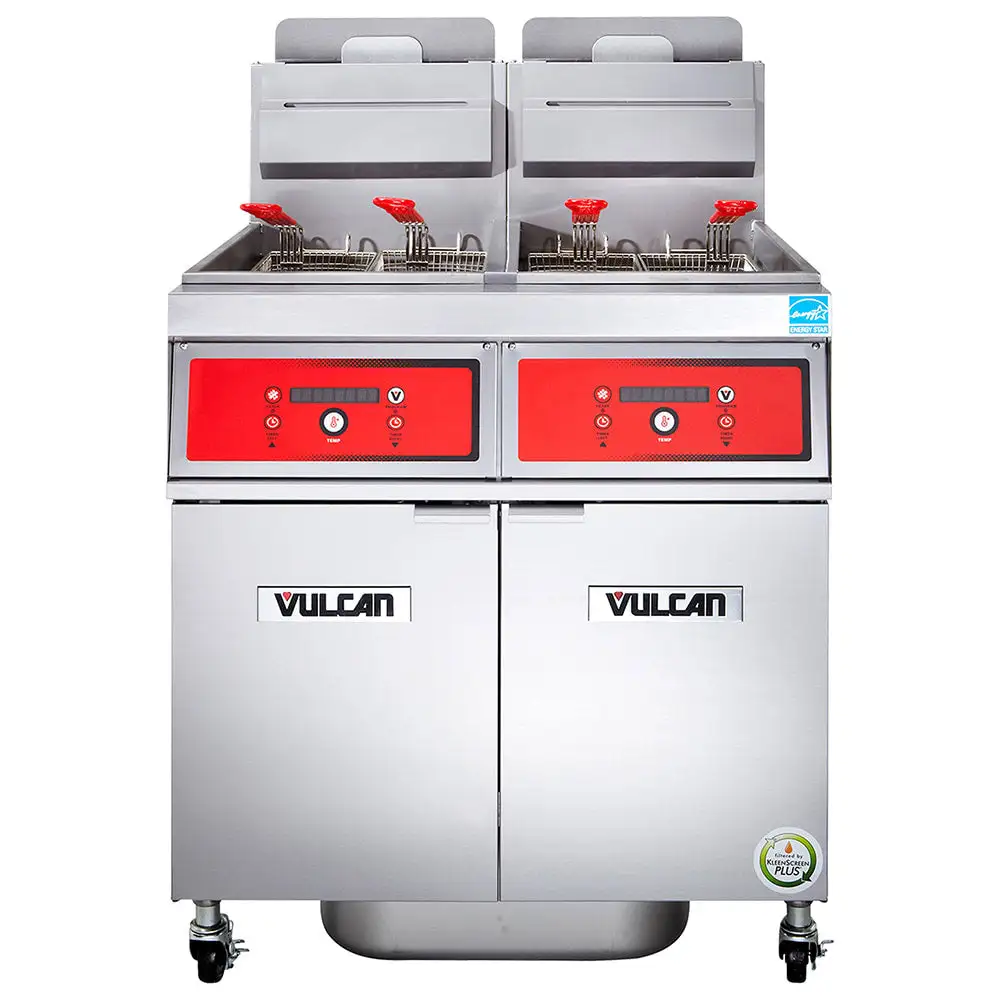

Vulcan 2VK85AF Gas Fryer - (2) 90 Lb Vats, Floor Model, Liquid Propane

Designed as a floor model, the Vulcan 2VK85DF gas fryer sits at a 36 1/4-inch working height for user comfort. It flaunts two tanks, each capable of holding 85 to 90 pounds of oil, and twin fryer baskets with plastic-coated handles to minimize heat transfer. For durability, it's constructed of stainless steel. The included tank brush scrubs underneath the burners as the clean-out rod cleans sediment out of its V-shaped cold zone to simplify cleaning.
The Vulcan 2VK85DF PowerFry5® fryer uses the FivePass® heat transfer system to evenly distribute heat throughout the oil for fast temperature recovery. It yields 65 percent cooking and 78 percent thermal efficiency. During startup, the SoftStart® ignition system operates at 90,000 BTU per hour and slowly increases to 180,000 BTUs to extend oil life. When not in use, it can sit idle at 12,595 BTUs per hour. If the oil gets too hot, operators can use the hi-limit shut off to turn off the gas burners for reduced fire risks. To ease mobility, it's placed on four 6-inch casters, two of which are lockable for stationary use.
This unit can be used with solid-state analog controls; its knob control can be found behind the cabinet door. These controls regulate temperatures between 200 and 390 degrees Fahrenheit and offer user-selectable fat melt molds for melting solid shortening. Its 1 1/4-inch drain valve sports an interlock switch that turns off the gas burners automatically when draining oil. It comes with a seamless 18-gauge filter pan and a stainless steel mesh screen that filters from two sides. This floor model measures 42 inches wide by 34 3/8 inches deep by 47 1/8 inches high and operates with liquid propane.

Product Details





Part of the PowerFry5 VK85 series
Tank capacity: (2) 85 to 90 lb.
Twin fry baskets sport plastic-coated handles for user safety
Freestanding configuration
Stainless steel cabinet and tank
FivePass heat transfer system evenly distributes heat for quick recovery
V-shaped cold zone collects sediment
Yields 65 percent cooking and 78 percent thermal efficiency
SoftStart ignition system uses 90,000 BTU/hr. to extend oil life during start up
Idle rate of 12,596 BTU/hr.
Outputs 180,000 BTU/hr.
Hi-limit shut off turns off gas if oil gets too hot
Includes tank brush and clean-out rod
(4) 6-in. adjustable casters (2 locking)
36 1/4-in. working height
1 1/4-in. full-port ball-type drain valve
Requires 6-in. clearance at both sides and rear adjacent to combustible construction
16-in. required clearance from open-top burners

Solid-state Analog Control





Knob control behind door
Can be set between 200 and 390 degrees F
Digital temperature display offers Celsius and Fahrenheit readouts
Timers can count in compensating time or real time
User-selectable fat melt modes
Electronic ignition

Kleenscreen Plus Filtration System





Drain valve interlock switch automatically turns off gas burners when draining oil
Seamless 18-ga. stainless steel filter pan
110-lb. frying compound capacity 2. Stainless steel mesh filter screen filters from two sides

270-sq.-in. filter area
Pumps at 8 gal./min.
One-touch push-button switch engages pump and motor
6-in. high-temperature discard hose
20 1/2-lb. filter pan

Dimensions & Utilities





Overall: 42 in. W x 34 3/8 in. D x 47 1/8 in. H
LP gas
7 A, 1/3 HP
115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
180

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
180

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
700.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 180
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 180
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 700.00
