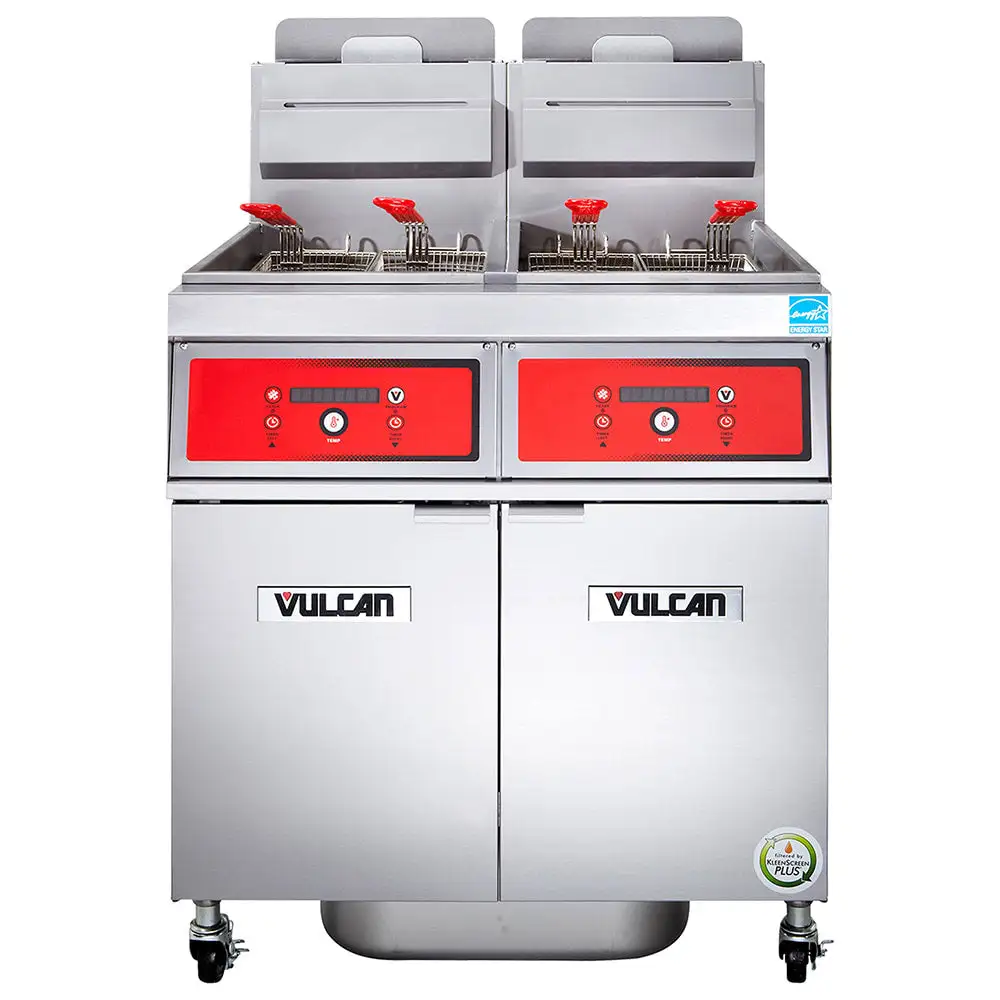

Vulcan 2VK65DF Gas Fryer - (2) 70 Lb Vats, Floor Model, Liquid Propane

The Vulcan 2VK65D PowerFry5® fryer measures 42 inches wide by 30 1/8 inches deep by 47 1/8 inches high and sits at a 36 1/4-inch working height that enables comfortable use. It features two tanks, each with a 65- to 70-pound capacity, and twin fry baskets with plastic-coated handles that reduce burn risks. Its stainless steel cabinet and tank are durable enough to withstand high-demand kitchen use, while its V-shaped cold zone obtains sediments without burning them to prolong oil life. Designed with a FivePass® heat transfer system, oil can be evenly heated, yielding 68 percent cooking and 78 percent thermal efficiency.
To reduce fire risks, the Vulcan 2VK65D flaunts a hi-limit shut off that stops the flow of gas when the oil gets too hot. It operates with liquid propane, and when powered on, its SoftStart® ignition system starts at 70,000 BTU per hour and gradually increases to 160,000 BTU per hour. To save energy during off-peak hours, it can sit at an idle rate of 9,604 BTU. For simple cleaning, operators can use the included clean-out rod to clean sediment out of the cold zone and the tank brush to safely scrub the undersides of the burner. Because this model sits on four 6-inch casters, users can easily move it for cleaning and maintenance. The temperature controls enable it to be set to a temperature between 200 and 390 degrees Fahrenheit and offer quick temperature recovery after dropping cold or frozen foods into the vats. It has an electronic ignition, two countdown timers, three melt modes, and an auto boil-out mode to streamline operation.

Product Details





Featured in the PowerFry5 VK65 line
Vat capacity: (2) 65 to 70 lb.
2 battery setup
Freestanding
Tank and cabinet made of rigid stainless steel
FivePass heat transfer system creates consistent temperatures
Yields 68 percent cooking and 78 percent thermal efficiency
Twin fry baskets featuring plastic-coated handles
V-shaped cold zone collects sediment without burning
Hi-limit shut off stops gas flow when oil gets too hot
36 1/4-in. working height
6-in. clearance from combustible construction required at both sides and rear
Requires 16-in. clearance to open-top burners
Includes clean-out rod and tank brush
(4) 6-in. adjustable casters (2 locking)
SoftStart ignition system operates with 70,000 BTU/hr. during startup to prolong oil life
Idle rate: 9,604 BTU/hr.
Overall output: 160,000 BTU/hr.
1 1/4-in. full-port ball-type drain valve

Temperature Control





Temperature range: 200-390 degrees F
Quick temperature recovery
Electronic ignition
3 melt modes
Digital temperature display offers Celsius or Fahrenheit readouts
2 countdown timers can use compensating or actual time
Auto boil-out mode eases cleaning

Kleenscreen Plus Filtration System





Drain valve interlock switch automatically powers off gas burners if drain valve is opened
Seamless filter pan made of 18-ga. stainless steel
Frying compound capacity: 110 lb. 2. Stainless steel mesh filter screen filters from two sides

270-sq.-in. filter area
Pumps at 8 gal./min.
One-touch push button engages pump and motor
6-in. high-temperature discard hose
Filter pan weight: 20 1/2 lb.

Dimensions & Utilities





Overall: 42 in. W x 30 1/8 in. D x 47 1/8 in. H
LP gas
7 A, 1/3 HP
115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
140

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
140

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
696.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 140
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 140
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 696.00
