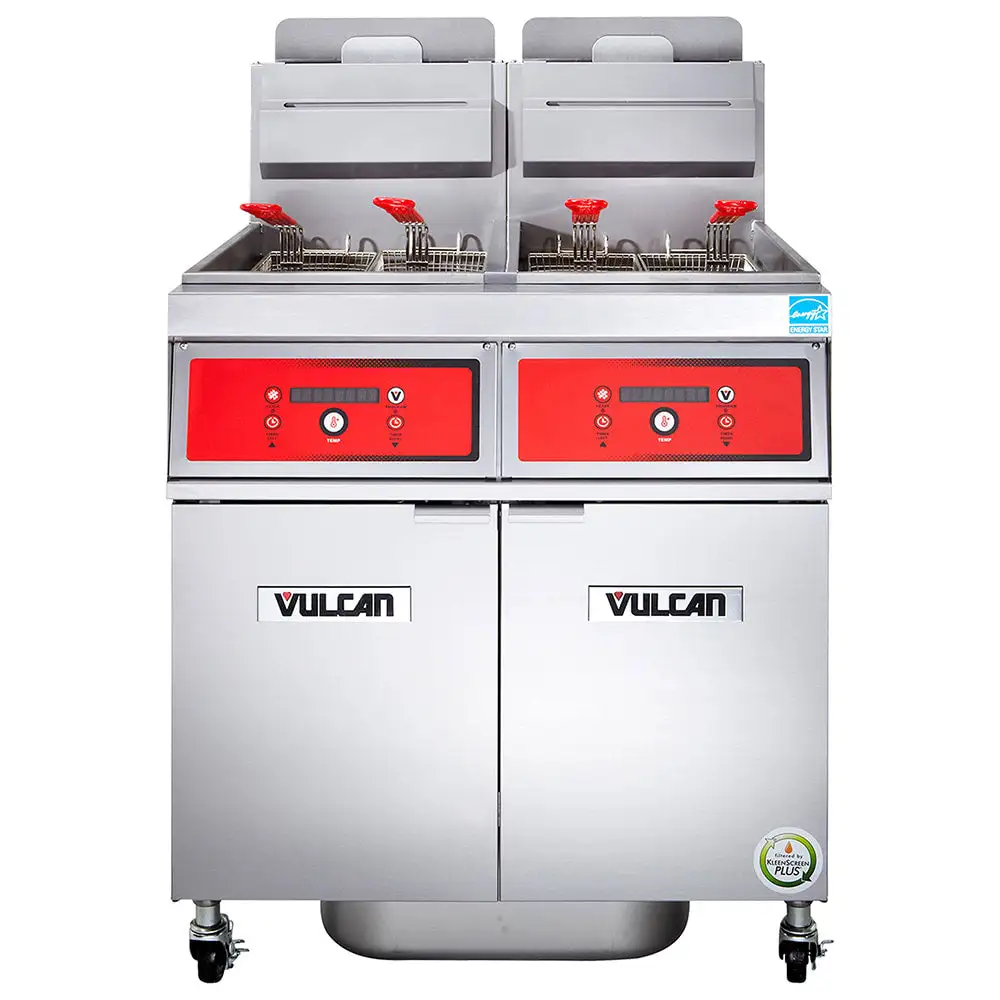

Vulcan 2VK65DF Gas Fryer - (2) 70 Lb Vats, Floor Model, Natural Gas

The Vulcan 2VK65DF gas fryer's temperature control includes quick recovery, electronic ignition, three melt modes, two countdown timers, and an auto boil-out mode to ease cleaning. It uses a FivePass® heat transfer system that yields 68 percent cooking and 78 percent thermal efficiency for even heat distribution. Durable enough to withstand rigorous kitchen use, the tank and cabinet are constructed of stainless steel. It features two vats that each hold as much as 65 to 70 pounds of oila€”great for frying large quantities of chicken, french fries, and mozzarella sticks. Because it has a V-shaped cold zone, sediment can be collected before it burns. This unit sits at a 36 1/4-inch working height for comfortable use and comes with twin fry baskets with plastic handles that reduce heat transfer from metal to skin.
Designed with a SoftStart® ignition system, the Vulcan 2VK65DF PowerFry5® fryer starts at 70,000 BTU when powered on and slowly increases to 160,000 BTU per hour to conserve energy; during slow or off-peak hours, it maintains heat by outputting 9,604 BTU per hour. Operators can move this unit for maintenance or cleaning since it sits on four 6-inch castersa€”two casters lock for stationary use. Designed with the Kleenscreen Plus® filtration system, this unit's 1 1/4-inch, ball-type drain valve includes an interlock switch that automatically turns off the gas burners when draining. It comes with an 18-gauge stainless steel seamless filter and a stainless steel mesh filter, which filters from two sides. For simple cleaning, it includes a clean-out rod and tank brush. Overall, it measures 42 inches wide by 30 1/8 inches deep by 47 1/8 inches high.

Product Details





Featured in the PowerFry5 series
65- to 70-lb. capacity per tank
FivePass heat transfer system evenly distributes heat through the oil
Yields 68 percent cooking and 78 percent thermal efficiency
Stainless steel tank and cabinet
2 batteries
V-shaped cold zone prevents burnt sediment
Freestanding
Hi-limit shut off turns off gas flow when oil gets too hot
Plastic-coated handles on twin fry baskets
36 1/4-in. working height
1 1/4-in. full-port ball-type drain valve
Requires 6-in. clearance at both sides and rear to combustible construction
16-in. required clearance from open-top burners
Clean-out rod and tank brush included
(4) 6-in. adjustable casters (2 locking)
SoftStart ignition system operates with 70,000 BTU/hr. at startup to prolong oil life
Idle rate: 9,604 BTU/hr.
Overall input: 160,000 BTU/hr.

Temperature Control





Operates with temperatures between 200 to 390 degrees F
Quick temperature recovery
Electronic ignition
3 melt modes
Digital temperature display in Celsius or Fahrenheit
2 countdown timers can be set to compensating or actual time
Auto boil-out mode eases cleaning

Kleenscreen Plus Filtration System





Drain valve interlock switch automatically powers off gas burners if drain valve is opened
Seamless filter pan constructed of 18-ga. stainless steel
110-lb. frying compound capacity 2. Stainless steel mesh filter screen filters from two sides

270-sq.-in. filter area
8 gal./min. pump rate
One-touch push button starts cycle
Temperature discard hose is 6 inches high
Filter pan weight: 20 1/2-lbs.

Dimensions & Utilities





Overall: 42 in. W x 30 1/8 in. D x 47 1/8 in. H
Tank: 19 1/2 in. W x 14 in. D
Natural gas
7 A, 1/3 HP
115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
140

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
140

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
696.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 140
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 140
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 696.00
