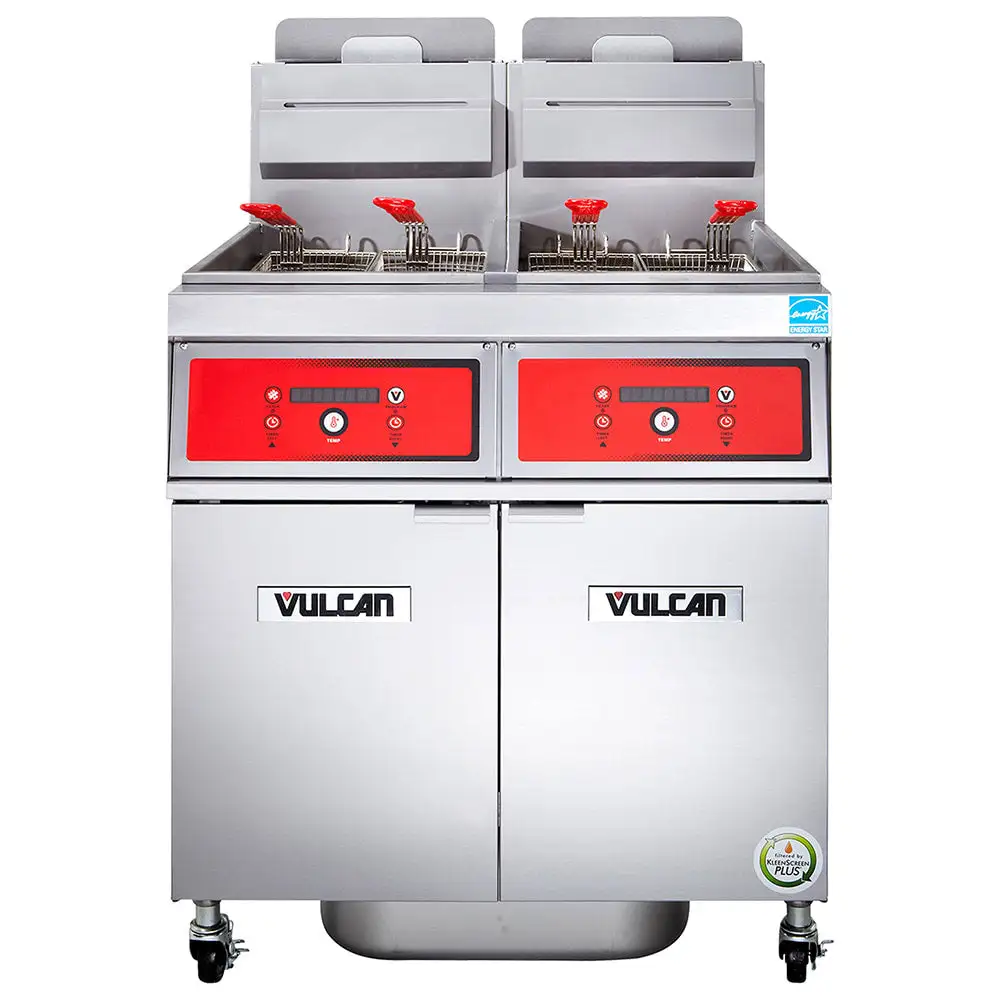

Vulcan 2VK85DF Gas Fryer - (2) 90 Lb Vats, Floor Model, Natural Gas

Constructed of stainless steel, the Vulcan 2VK85DF PowerFry5® floor model fryer is durable enough to endure frequent use in demanding kitchens. Great for cooking larger quantities of wings, chicken tenders, and french fries, it features two vats with 85- to 90-pound capacities. The twin fry baskets' handles are coated in plastic to minimize heat transfer and reduce user burns. To gather sediment before it burns, the cold zone is V-shaped. Built with a FivePass® heat transfer system, heat is evenly dispersed through the oil, enabling quick temperature recovery after dropping cold or frozen items. When the oil gets too hot, the hi-limit shut off stops the gas flow, and for simple movement for cleaning or maintenance, it sits on four 6-inch castersa€”two of which are lockable for static placement.
This unit uses a SoftStart® ignition system that starts with a 90,000-BTU-per-hour rate and slowly preheats to 180,000 BTUs to prolong oil life. To reduce energy consumption during off-peak hours, it can sit at an idle rate of 12,596 BTU. Its temperature control maintains temperatures between 200 to 390 degrees Fahrenheit, has three melt modes to soften solid shortening, two countdown timers, and an auto boil-out mode that simplifies tank cleaning. Overall, this unit measures 42 inches wide by 34 3/8 inches deep by 47 1/4 inches high and operates with natural gas.
The Vulcan 2VK85DF gas fryer operates with the Kleenscreen Plus® filtration system to extend its oil life, enabling reuse without flavor transfer. When draining, its 1 1/4-inch drain valve's interlock system automatically turns off the gas burners, reducing fire hazards. It features a 20 1/2-pound seamless, 18-gauge stainless steel pan with a stainless steel mesh filter screen that covers 270 square inches. It has a 110-pound frying compound capacity and can filter 8 gallons of oil per minute. For simplicity, its one-touch push button facilitates the filter pump controls. When oil is ready to be changed, it can flow through its 6-inch temperature discard hose.

Product Details





Featured in the PowerFry5 VK85 line
Vat capacity: (2) 85 to 90 lb.
2 battery setup
Freestanding
Tank and cabinet are rigid stainless steel
FivePass heat transfer system spreads heat evenly through oil
Yields 66 percent cooking and 78 percent thermal efficiency
Twin fry baskets feature plastic-coated handles
V-shaped cold zone collects sediment
Hi-limit shut off stops gas flow when oil gets too hot
36 1/4-in. working height
6-in. clearance from combustible construction is required at both sides and rear
16-in clearance required from open-top burners
Comes with clean-out rod and tank brush
(4) 6-in. adjustable casters (2 locking)
SoftStart ignition system operates with 90,000 BTU/hr. during startup to prolong oil life
Idle rate: 12,596 BTU/hr.
Overall output: 180,000 BTU/hr.
1 1/4-in. full-port ball-type drain valve

Temperature Control





Operates with temperatures between 200 to 390 degrees F
Quick temperature recovery
Digital display in Fahrenheit or Celsius
Electronic ignition
3 melt modes
2 countdown timers can use compensating or actual time
Auto boil-out mode eases cleaning

Kleenscreen Plus Filtration System





Drain valve interlock switch automatically turns off gas burners if drain valve is opened
20 1/2-lb., seamless filter pan made of 18-ga. stainless steel
270-sq-in. stainless steel mesh filter screen is double sided
Filter pan and screen are dishwasher safe
Pan has lift handles and is placed on drawer slides
110-lb. frying compound capacity 2. Motor and pump circulates oil at 8 gallons per minute

One-touch push-button switch activates filter pump controls
6-in. high-temperature discard hose

Dimensions & Utilities





Overall: 42 in. W x 34 3/8 in. D x 47 1/4 in. H
Natural gas
7 A, 1/3 HP
115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
180

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
180

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
700.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 180
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 180
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 700.00
