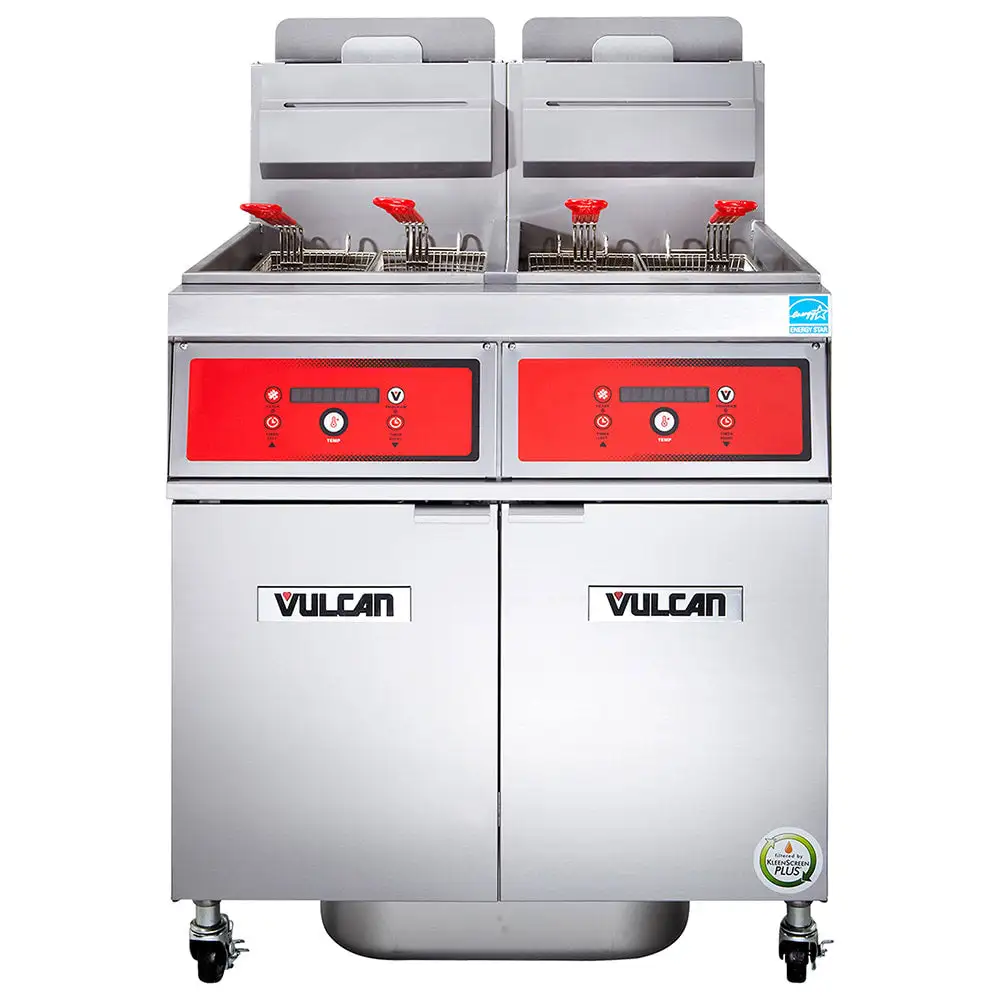

Vulcan 2VK85DF Gas Fryer - (2) 90 Lb Vats, Floor Model, Liquid Propane

The Vulcan 2VK85DF PowerFry5® fryer uses a FivePass® heat transfer system that evenly spreads heat throughout the oil, enabling fast recovery from cold and frozen foods. It yields 65 percent cooking and 78 percent thermal efficiency. The two vats each accommodate 85 to 90 pounds of oil for cooking large baskets and include twin fry baskets for simple product loading and unloading. This durable piece's cabinet and tank are constructed of stainless steel, while its V-shaped cold zone gathers sediment to prevent it from burning and affecting flavor. When the oil gets too hot, the hi-limit shut off will stop gas intake, reducing the fire risk. For comfortable use, it sits at a 36 1/4-inch working height.
Designed with the Kleenscreen Plus® filtration system, this unit prolongs its oil life while reducing the need for oil top offs. Its 1 1/4-inch drain valve features an interlock switch, automatically turning off the gas burners when draining. Its 20 1/4-pound filter pan is constructed of durable, 18-gauge stainless steel and a 270-square-inch stainless steel mesh screen. This screen filters sediment out of used oil, enabling reuse without flavor transfer. This filtration is activated by a one-touch push button and circulates oil at 8 gallons per minute; for simple cleaning, this model comes with a clean-out rod and tank brush.
Built with the SoftStart® ignition system, this unit starts at 90,000 BTUs per hour and slowly preheats to 180,000 degrees. When not in use, it maintains temperatures with 12,596 BTUs to reduce energy consumption. The temperature controls on this equipment maintain temperatures between 200 and 390 degrees Fahrenheit and includes an electronic ignition and two countdown timers. It offers three melt modes to liquify solid shortening to a usable consistency and an auto boil-out mode that simplifies cleaning. Overall, it measures 42 inches wide by 34 3/8 inches deep by 47 1/8 inches high and operates with liquid propane.

Product Details





Featured in the PowerFry5 VK85 line
Vat capacity: (2) 85 to 90 lb.
2-battery setup
Freestanding
Tank and cabinet are rigid stainless steel
FivePass heat transfer system heats oil evenly
Yields 65 percent cooking and 78 percent thermal efficiency
Twin fry baskets with plastic-coated handles
V-shaped cold zone collects loose sediment
Hi-limit shut off stops gas flow when oil gets too hot
36 1/4-in. working height
6-in. clearance from combustible construction is required at both sides and rear
Must be placed at least 16-in. from open-top burners
Includes clean-out rod and tank brush
(4) 6-in. adjustable casters (2 locking)
SoftStart ignition system operates with 90,000 BTU/hr. during startup to prolong oil life
Idle rate: 12,596 BTU/hr.
Overall output: 180,000 BTU/hr.
1 1/4-in. full-port ball-type drain valve

Temperature Control





Operates with temperatures between 200 and 390 degrees F
Digital display shows temperature in Fahrenheit or Celsius
Quick temperature recovery
Electronic ignition
3 melt modes
2 countdown timers can use compensating or real time
Auto boil-out mode eases cleaning

Kleenscreen Plus Filtration System





Drain valve interlock switch automatically turns off gas burners if drain valve is opened
20 1/2-lb., seamless filter pan made of 18-ga. stainless steel
270-sq-in. stainless steel mesh filter screen filters from two sides
Dishwasher-safe filter pan and screen
Pan has lift handles and is placed on drawer slides
110-lb. frying compound capacity 2. Motor and pump circulates oil at 8 GPM

One-touch push-button switch activates filter pump controls
6-in. high-temperature discard hose

Dimensions & Utilities





Overall: 42 in. W x 34 3/8 in. D x 47 1/8 in. H
LP gas
7 A, 1/3 HP
115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
180

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
180

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
700.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 180
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 180
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 700.00
