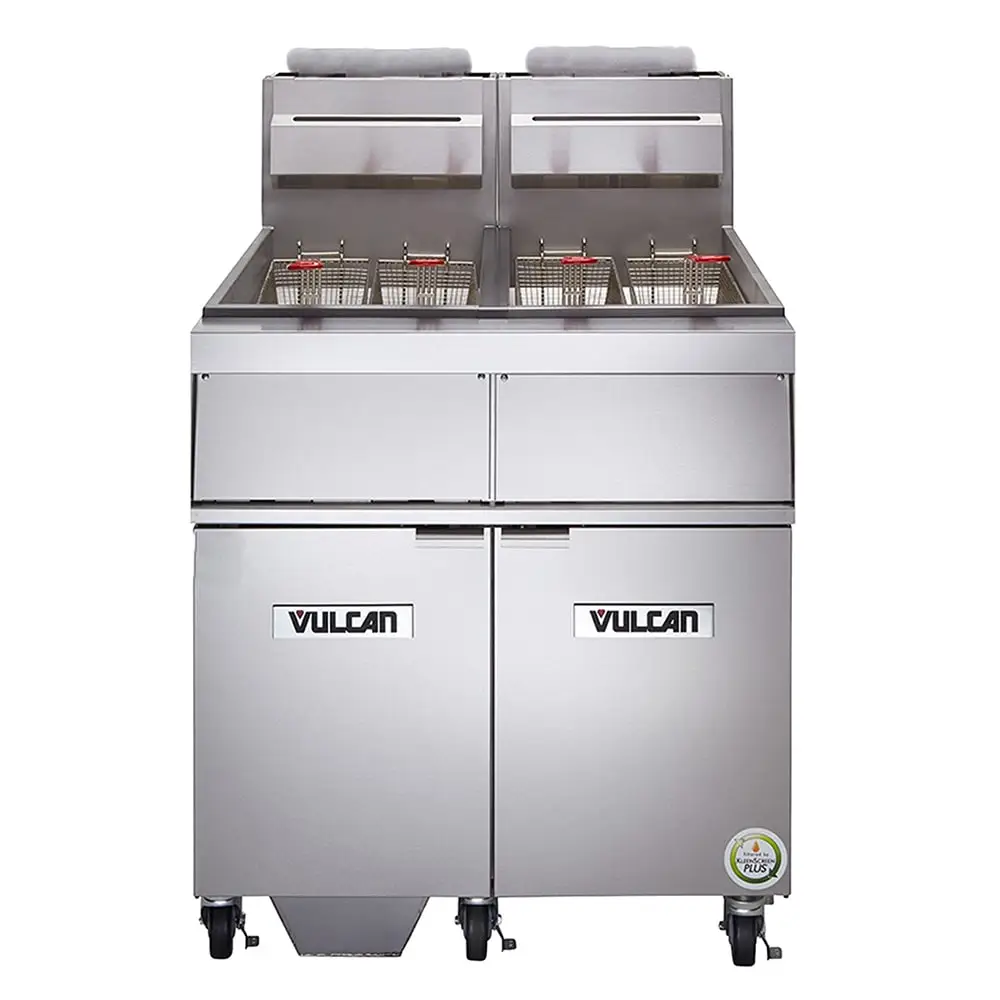

Vulcan 3GR65MF Gas Fryer - (3) 70 Lb Vats, Floor Model, Liquid Propane

Because the Vulcan 3GR65MF freestanding gas fryer has three batteries that can each hold 65 to 70 pounds, operators can reduce flavor transfer while cooking large quantities of breaded fish, chicken, or fries. It features five heat exchanger tubes that evenly disperse heat throughout the held oil for optimal cooking results, and for durability, its tank and cabinet are made of durable stainless steel. To ease product loading and unloading, twin fry baskets include plastic-coated handles to minimize heat transfer. Designed with a V-shaped cold zone, loose sediment gathers at the bottom of the vat so it does not burn and affect flavor. This oil can reach temperatures between 200 and 400 degrees Fahrenheit due to its millivolt thermostat controls. For simple cleaning, this model includes a tank brush, clean-out rod, and stainless steel crumb scoop and sits on four 6-inch casters to ease mobility for cleanup and maintenance.
The Vulcan 3GR65M commercial deep fryer provides simple cleaning because of its Boil Out ByPass® system, which boils water and solution in the vat and drains out the liquids without affecting additional components. To enable the reuse of oil, its Kleenscreen Plus® filtration system filters oil through its 270-square-inch stainless steel screen, removing particulates and reducing flavor transfer. It also includes an 18-gauge stainless steel filter pan, which has handles and is placed on drawer slides for simple handling. Fire risks can be minimized with its hi-limit shut off, which turns off the burners when oil gets too hot. This liquid-propane-operated piece operates at 450,000 BTUs per hour and includes a combination gas shut-off valve and pilot safety system. Overall, it measures 63 inches wide by 30 1/8 inches deep by 46 1/2 inches high.

Product Details





Vat capacity: 65 to 70 lb.
3 batteries
Freestanding
Plastic-coated handles on twin fry baskets
Cabinet and tank are constructed of stainless steel
V-shaped cold zone gathers loose sediment
5 heat exchanger tubes placed for simple cleaning
(4) 6-in. casters (2 lockable)
Hi-limit shut off turns off gas when oil is too hot
Millivolt thermostat control temperature range: 200 to 400 degrees F
Combination gas shut-off valve and pilot safety system
1 1/4-in. full-port, ball-type drain valve
Includes tank brush, stainless steel crumb scoop, and clean-out rod
450,000 BTU

Kleenscreen Plus Filtration System





Drain valve interlock switch automatically powers off gas burners when valve is opened
20 1/2-lb. 18-ga. stainless steel filter pan is seamless
270-sq-in. stainless steel mesh filter screen filters is double sided
Boil Out ByPass removes boil-out solution from vat
Filter pan and screen are dishwasher safe
Pan has lift handles and is placed on drawer slides for simple handling
70-lb. frying compound capacity 2. Motor and pump circulates oil at 8 gallons per minute

One-touch push-button switch activates filter pump controls
High-temperature discard hose

Dimensions & Utilities





Overall: 63 in. W x 30 1/8 in. D x 46 1/4 in. H
LP gas
1/2-in. ID and 3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
150000

Capacity (lbs)
210

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
3

Oil Capacity (lb)
210

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
3GR65M Series

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
63

Weight
904.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 150000
Capacity (lbs): 210
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 3
Oil Capacity (lb): 210
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 3GR65M Series
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 63
Weight: 904.00
