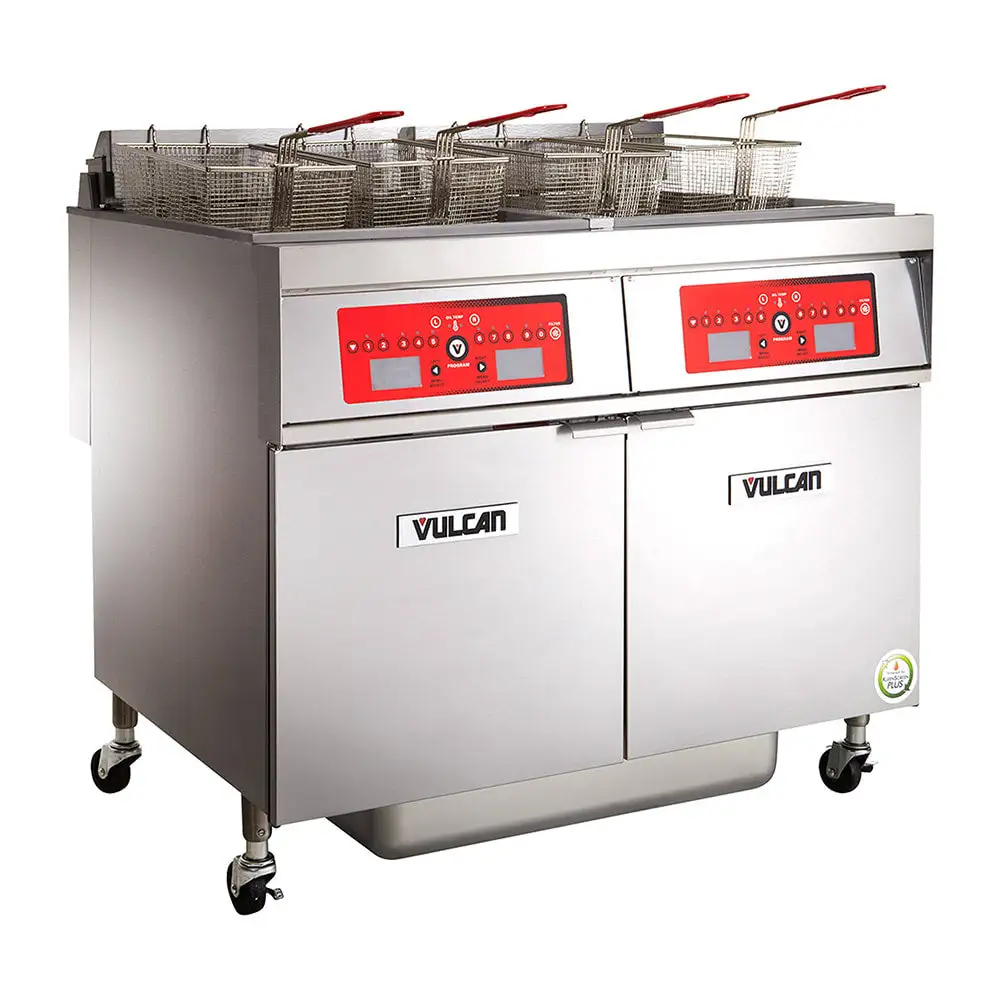

Vulcan 3VK45AF Gas Fryer - (3) 50 Lb Vats, Floor Model, Liquid Propane

Comprised of three 50-pound-capacity vats, the Vulcan 3VK45AF PowerFry5® commercial floor fryer can cook large volumes of shrimp, fish, chicken, and potatoes. Each frypot comes with twin fryer baskets that securely contain foods during frying. To reduce heat transfer, the baskets' handles are coated with plastic. Users can set temperatures from 200 to 390 degrees Fahrenheit with the solid-state analog knob controls and initiate one of three melt cycles if using solid shortening. By efficiently distributing heat throughout the oil, the FivePass® heat transfer system reduces cook time, decreases lag time for recovery, and yields 78 percent thermal efficiency and 66 percent cooking efficiency. To reduce the risk of scorching oil, the SoftStart® ignition system heats oil by outputting 35,000 BTUs per hour. The idle temperature mode maintains heat by only outputting 4,251 BTUs per hour to save energy, and to maintain a comfortable working environment, the flue will remain below 500 degrees Fahrenheit at maximum production rate.
The KleenScreen PLUS® filtration unit is built into the bottom of the Vulcan 3VK45AF efficient gas fryer; because it operates with the push of a button, it promotes frequent filtering. This system is designed to be used twice per day, and its motor and pump circulate 8 gallons of oil per minute to expedite the process. Its seamless stainless steel oil pan can hold 70 pounds of oil, while its stainless steel mesh filter screen filters from two sides, establishing a 270-to-350-square-inch filtration area. To minimize time-consuming manual tasks, the oil-return tube adds filtered shortening back to the frypots when the drawer is closed. This 46 1/2-inch-wide by 30 1/8-inch-deep by 47 1/8-inch-tall unit is built to endure high-volume back-of-house use because it's made of scratch-, rust-, and dent-resistant stainless steel. It's positioned on four castersa€”two of which can lock for stabilitya€”so operators can transport the unit for maintenance or cleaning and secure it in place as needed.

Product Details





Part of the PowerFry5 series
(3) 50-lb. fry tanks
Stainless steel construction for long-term durability
6 fryer baskets with plastic-coated handles (2 per frypot)
(4) 6-in. adjustable casters (2 locking)
SoftStart ignition system warms oil by outputting 35,000 BTUs
FivePass heat transfer system enhances thermal and cooking efficiency
Idle temperature mode maintains set heat at 4,251 BTUs per hour
Flue temperature doesn't exceed 500 degrees F at maximum production rate
Hi-limit shutoff mechanism
Includes tank brush and clean-out rod
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(3) 70,000 BTU

Solid-state Analog Knob Controls





Separate solid-state analog knob controls for each fry tank
Located behind the cabinet doors
Electronic ignition
Operating temperature range: 200-390 degrees F
Fat-melt mode can be user selected

Filtration System Details





Seamless, lightweight 18-ga. stainless steel filtration pan with 70-lb. oil capacity
Stainless steel mesh filter with 270-350-sq.-in. filtration area
Pump and motor circulate oil at 8 GPM
1-touch button initiates filtration cycle
Drain valve interlock switch
Hands-free oil-return tube

Dimensions & Utilities





46 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
150

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
3

Oil Capacity (lb)
150

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
46.5

Weight
717.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 150
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 3
Oil Capacity (lb): 150
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 46.5
Weight: 717.00
