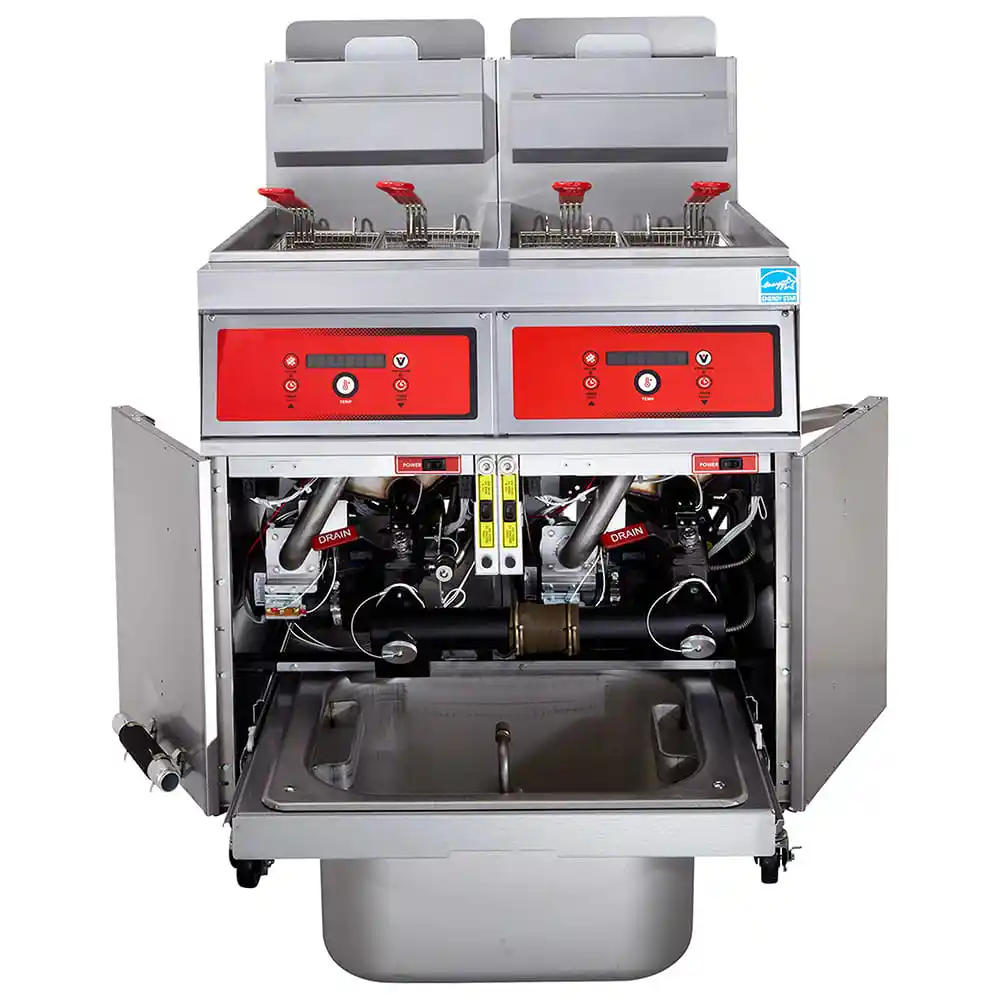

Vulcan 3VK45CF Gas Fryer - (3) 50 Lb Vats, Floor Model, Liquid Propane

Because the Vulcan 3VK45CF PowerFry5® gas fryer is built with three 50-pound-capacity frypots, it's great for cooking large amounts of breaded foods simultaneously without transferring flavors. All three vats come with twin fryer baskets that keep chicken, shrimp, fish, potatoes, and dumplings contained as they cook. To reduce heat transfer, their handles are coated with plastic. By using the independent computer controls for each frypot, staff can adjust the temperatures from 200 to 390 degrees Fahrenheit; once set, a digital display provides a readout of the vat's temperature so users can gauge the heating process. Employees can also initiate fat-melt modes, choose to cook with compensating or actual time, and upload common menu items to program 10 menu timers for streamlined frying.
Once the temperature is set, the SoftStart® ignition system outputs 35,000 BTUs per hour to quickly warm the oil while conserving energy. For enhanced thermal and cooking efficiency, the FivePass® heat transfer system effectively guides heat throughout the oil, resulting in quick cooking and recovery times. Once it reaches the set temperature, the idle temperature mode retains heat at just 4,251 BTUs per hour. The KleenScreen PLUS® filtration system built into the unit's base promotes frequent oil filtration because it operates with the push of a button. Designed to be used twice a day, this mechanism's pump and motor circulate oil at 8 gallons per minute; the stainless steel mesh filter screen collects debris from two sides. Its seamless stainless steel filter pan can hold 70 pounds of oil, and filtered oil can be directed back to the frypots with the oil-return tube.
To match other back-of-house equipment and provide long-term durability, the Vulcan 3VK45CF high-efficiency gas fryer is made of rust-, dent-, and scratch-resistant stainless steel. This 46 1/2-inch-wide by 30 1/8-inch-deep by 47 1/8-inch-tall unit is positioned on four 6-inch casters that roll smoothly. Two of the casters can be locked to stabilize the unit in place during maintenance and operation, and for enhanced staff comfort, it establishes a 36 1/4-inch working height.

Product Details





Part of the PowerFry5 series
3-battery freestanding floor model with (3) 50-lb. fry tanks
SoftStart ignition system saves energy while preserving oil quality during initial heating
FivePass heat transfer system yields 66 percent cooking efficiency and 78 percent thermal efficiency
Idle temperature mode outputs only 4,251 BTUs per hour to maintain set heat
Flue temperature remains below 500 degrees F at maximum production rate
Hi-limit shutoff mechanism
Made of durable stainless steel
2 fryer baskets with plastic-coated handles per frypot (6 baskets total)
(4) 6-in. adjustable casters (2 with locks)
Includes clean-out rod for drain and tank brush
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(3) 70,000 BTU

Computer Controls





Electronic ignition
Operating temperature range: 200-390 degrees F
3 melt modes
Fahrenheit or Celsius digital display
Can cook with compensating time or actual time
10 menu timers display product name and cook time
Items can be programmed offline using USB interface (software included)

Filtration System Details





Seamless, lightweight 18-ga. stainless steel filtration pan with 70-lb. oil capacity
Stainless steel mesh filter establishes 270-350-sq.-in. filtration area
Pump and motor circulate oil at 8 GPM
1-touch button initiates filtration cycle
Drain valve interlock switch
Hands-free oil-return tube

Dimensions & Utilities





46 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
150

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
3

Oil Capacity (lb)
150

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
46.5

Weight
717.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 150
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 3
Oil Capacity (lb): 150
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 46.5
Weight: 717.00
