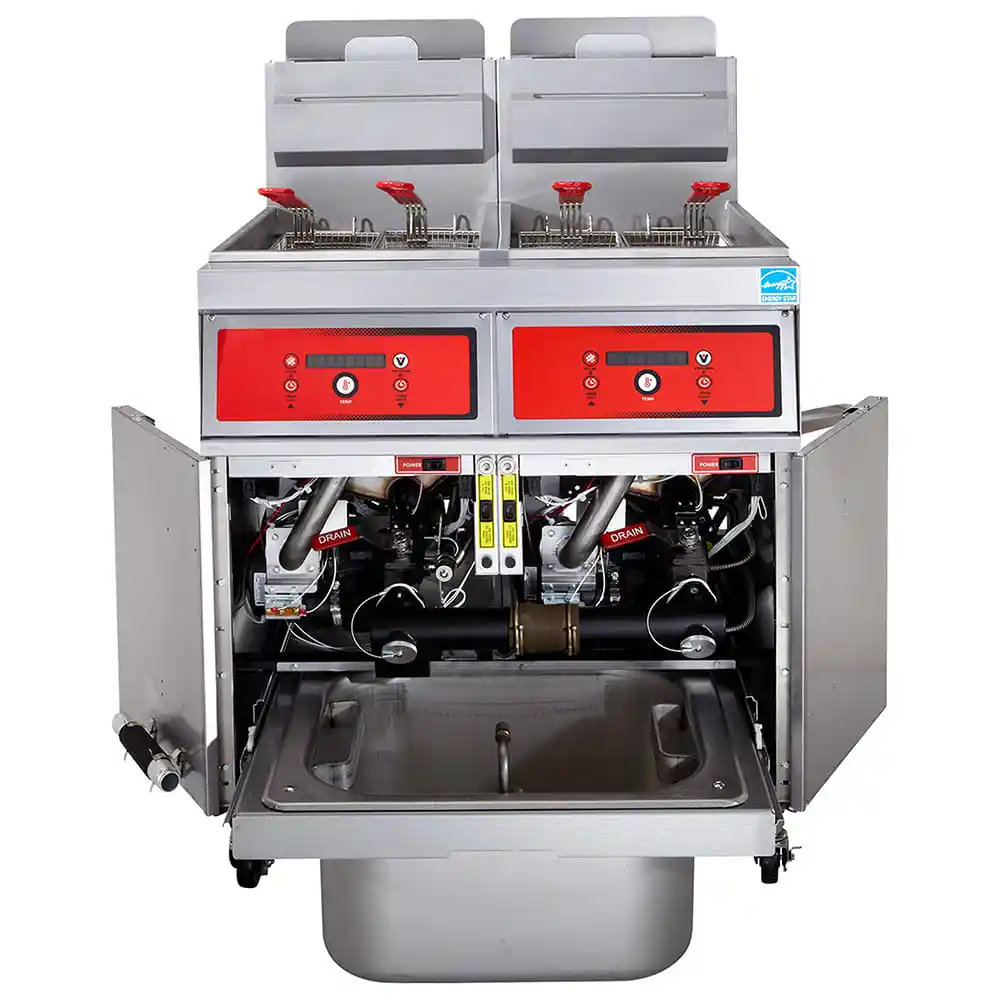

Vulcan 3VK65CF Gas Fryer - (3) 70 Lb Vats, Floor Model, Natural Gas

Powered by natural gas, the Vulcan 3VK65CF PowerFry5® commercial gas fryer can output 240,000 BTUs per hour. To minimize energy usage, it's built with the FivePass® heat transfer system evenly disperses heat throughout the oil, yielding 68 percent cooking efficiency and 78 percent thermal efficiency. Operators can set each of the three frypot's between 200 and 390 degrees Fahrenheit, program 10 menu timers, choose from three melt modes, and select compensating time or actual time for cooking. The SoftStart® ignition system outputs 40,000 BTUs per hour while quickly heating oil after the temperature is set. When the frypot reaches the set temperature, the idle temperature setting maintains heat by outputting just 4,802 BTUs per hour.
Staff can work comfortably at this 63-inch-wide by 30 1/8-inch-deep by 47 1/8-inch-tall fryer because it creates a 36 1/4-inch working height. Users can lower and lift breaded contents with the included fryer baskets, which feature plastic-coated handles that reduce heat transfer for user safety. The KleenScreen PLUS® filtration system is built into the unit's base on an accessible pull-out drawer. Intended for use twice a day, its filtration cycle can be activated with the push of a button. Its 1/3-horsepower motor and pump circulate oil at 8 gallons per minute, while the stainless steel mesh screen filters from two sides. Its oil-return tube can guide filtered oil back into the frypots once the filter drawer is closed. For lasting durability and smooth transport, this unit is made of stainless steel and mounted on four 6-inch casters; two casters can be locked to secure the unit in place.

Product Details





Part of the PowerFry5 series
3-battery freestanding unit
(3) 70-lb. frypots
Stainless steel cabinet, frypots, and baskets
6 fryer baskets with plastic-coated handles (2 baskets per frypot)
36 1/4-in. working height
(4) 6-in. adjustable casters (2 with locks)
FivePass heat transfer system yields 68 percent cooking efficiency and 78 percent thermal efficiency
SoftStart ignition system heats oil quickly while saving energy
Idle temperature mode maintains set temperature at just 4,802 BTUs per hour
Flue temperature doesn't exceed 500 degrees F at maximum production rate
Hi-limit shutoff
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(3) 80,000 BTU

Computer Controls





Operating temperature range: 200-390 degrees F
Fahrenheit or Celsius digital character display
10 menu timers display product name and cook time
Items can be programmed offline with USB interface (software included)
Electronic ignition
Can cook with compensating time or actual time
3 melt modes

Filtration System Details





Pull-out drawer assembly for simple access
110-lb.-capacity stainless steel filter pan
Stainless steel mesh filter screen establishes filter area from 270-350 sq. in.
1-touch button activation
Pump and motor circulate oil at 8 GPM
Drain valve interlock switch automatically turns off burners during oil draining
Hands-free oil-return tube adds oil back to tanks

Dimensions & Utilities





63 in. W x 30 1/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
210

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
3

Oil Capacity (lb)
210

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
63

Weight
916.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 210
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 3
Oil Capacity (lb): 210
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 63
Weight: 916.00
