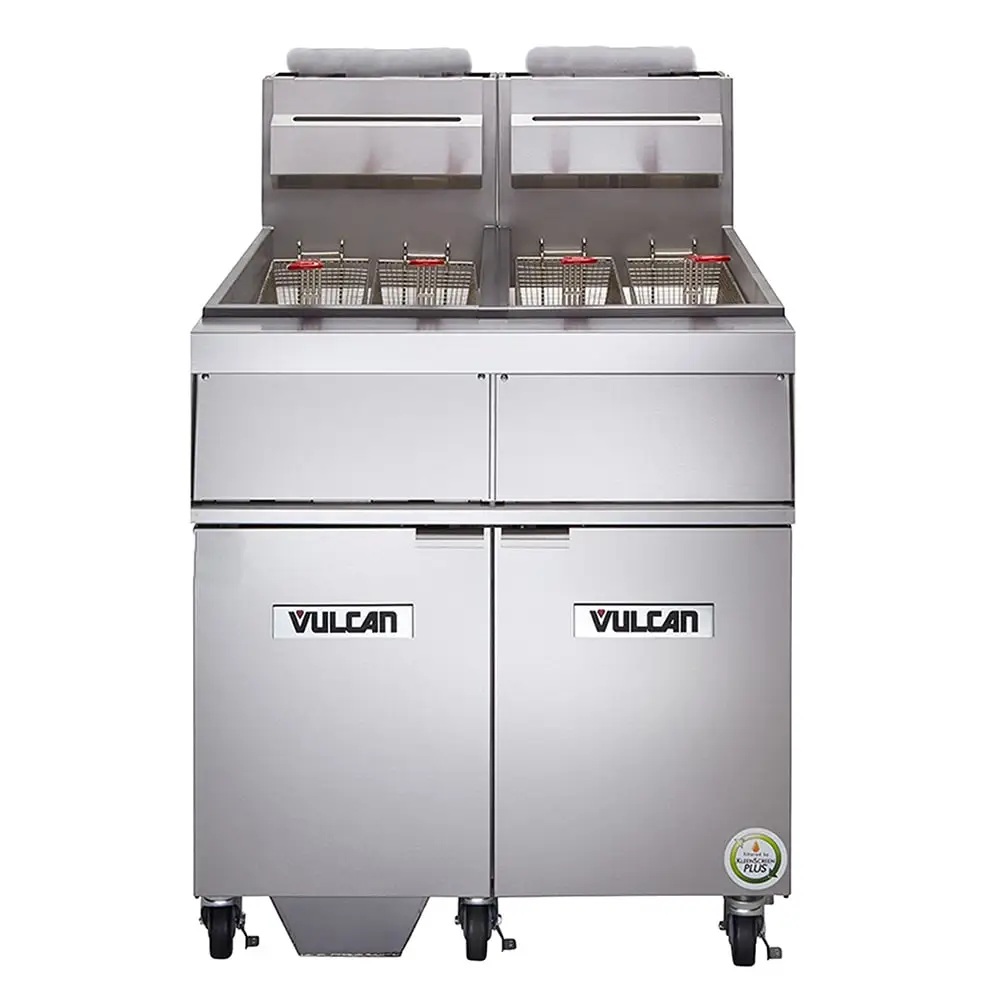

Vulcan 4GR45MF Gas Fryer - (4) 50 Lb Vats, Floor Model, Natural Gas

The Vulcan 4GR45MF gas fryer measures 62 inches wide by 30 1/4 inches deep by 46 1/4 high and comes mounted on four 6-inch casters to simplify placement in existing equipment lineups. This four-battery unit features four 14-inch-wide by 14-inch-deep vats that hold 45 to 50 pounds of oil each. Each tank fits 6 1/2-inch-wide by 13 1/4-inch-deep by 6-inch-high twin baskets, which minimize burn risks with their plastic-coated handles. Its tank and cabinet are made of stainless steel, so this unit is both durable and corrosion resistant to prolong service life.
To adjust temperatures between 200 and 390 degrees Fahrenheit, the Vulcan 4GR45MF gas fryer features a millivolt thermostat control behind the cabinet door to prevent inadvertent temperature changes. For even, thorough heating, each vat has four heat exchanger tubes. If this fryer unit exceeds its maximum temperature, it activates its hi-limit shut-off system, and in case of emergency, its gas shut-off valve and pilot safety system are combined. With its KleenScreen PLUS® filtration systema€”which circulates frying compounds at 8 gallons per minutea€”the oil maintains quality to reduce premature replacement and flavor transfer. To streamline cleaning after operation, its Boil Out ByPass® function removes boil-out solution without contacting the drain manifold, filter pan, motor, or pump, and it ships with a tank brush, stainless steel crumb scoop, and clean-out rod.

Product Details





Part of the 1GR45 series
4 frypots
(4) 50-lb.-capacity vats
Temperature range: 200-400 degrees F
Twin baskets feature plastic-coated handles (2 per frypot)
Millivolt thermostat controls located behind door
Includes tank brush, stainless steel crumb scoop, and clean-out rod
Hi-limit shut off
Combination gas shut-off valve and pilot system
36 1/4 in. working height
1 1/4-in. full port ball-type drain valve
Includes tank brush, stainless steel crumb scoop, and clean-out rod
(4) 6-in. swivel casters (2 locking & 2 non-locking)
Stainless steel cabinet and fry tank

KleenScreen PLUS filtration system





1/3-horsepower motor and pump circulate compound at 8 gal. per minute
18-ga. stainless steel filter pan holds 70 lb. of oil
Stainless steel filter mesh screen
Boil Out ByPass function
Includes high-temperature discard hose

Dimensions & Utilities





Twin baskets: 6 1/2 in. W x 13 1/4 in. D x 6 in. H
Fry tanks: 14 in. W x 14 in. D
Overall: 62 in. W x 30 1/4 in. D x 46 1/4 in. H
6.0 A, 1/3 HP
120 V/60 Hz/ 1 ph - Natural gas
480,000 BTU

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
120000

Capacity (lbs)
200

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
200

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
4GR45M Series

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
62

Weight
927.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 120000
Capacity (lbs): 200
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 200
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 4GR45M Series
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 62
Weight: 927.00
