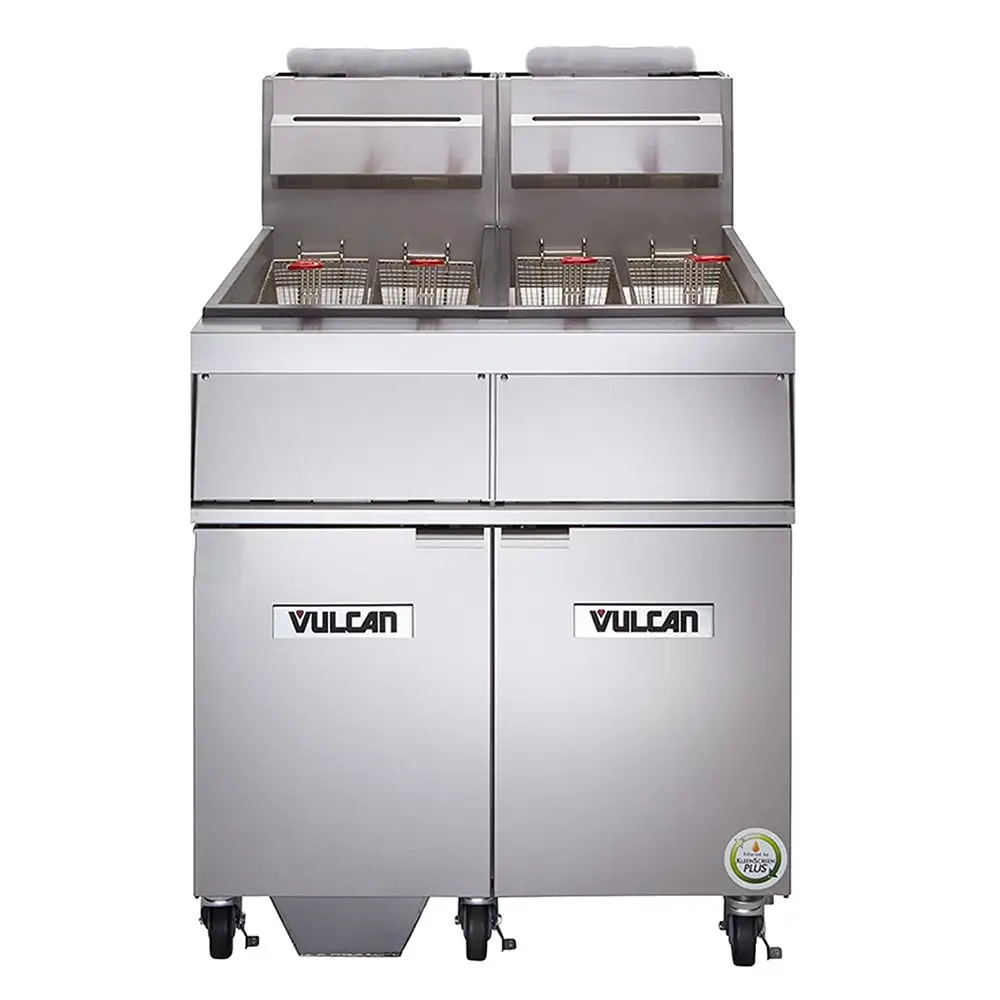

Vulcan 4GR45MF Gas Fryer - (4) 50 Lb Vats, Floor Model, Liquid Propane

The Vulcan 4GR45MF gas fryer is part of the 1GR45 series and features four vats that each have a 45- to 50-pound oil capacity. Each tank measures 14 inches wide by 14 inches deep to hold the included 6 1/2-inch-wide by 13 1/4-inch-deep by 6-inch-high twin fryer baskets; these baskets feature plastic-coated handles to decrease burn risks. For high-intensity use, it's made of durable stainless steel that resists corrosion. Overall, this heavy-duty unit measures 62 inches wide by 30 13/100 inches deep by 46 1/4 inches high and sits on four 6-inch swivel castersa€”two of which locka€”to simplify transport.
To simplify and streamline frying of high-volumes of breaded meats or vegetables, this fryer's behind-the-door millivolt controls can be adjusted to set temperatures between 200 and 390 degrees Fahrenheit. This unit's heat exchanger tubes are designed to distribute heat evenly throughout the oil, and if temperatures become too hot, it has a hi-limit shutoff to minimize fire risks. For additional safety, this unit has a combination gas shut-off valve and pilot safety system.
To extend oil life, the Vulcan 4GR45MF gas fryer is installed with the KleenScreen PLUS® filtration system, which is capable of removing miniscule particulate by sifting oil through a duel-sided filter that establishes a 270-350-square-inch filter area. Its 1/3-horsepower motor and pump can circulate 8 gallons of frying compound per minute, while its 1 1/4-inch ball-type drain valve facilitates oil drainage. To further streamline cleaning, this unit includes a tank brush and clean-out rod.

Product Details





Part of the 1GR45 series
(4) 45-50-lb.-capacity fry vats
Temperature range: 200-400 degrees F
Includes 2 twin baskets with plastic-coated handles per frypot (8 total)
(4) 6-in. swivel casters (2 locking, 2 non-locking)
Stainless steel cabinet and fry tank
36 1/4-in. working height
Millivolt thermostat controls located behind door
Combination gas shut-off valve and pilot system
Hi-limit shut off
Includes tank brush, stainless steel crumb scoop, and clean-out rod
1 1/4-in. full port ball-type drain valve

KleenScreen PLUS filtration system





1/3-horsepower motor and pump circulate compound at 8 gal. per minute
18-ga. stainless steel filter pan holds 70 lb. of oil
Stainless steel filter mesh screen
Boil Out ByPass® function removes boil-out solution without contacting drain manifold, filter pan, motor, or pump
Includes high-temperature discard hose

Dimensions & Utilities





Twin baskets: 6 1/2 in. W x 13 1/4 in. D x 6 in. H
Fry tanks: (4) 4 in. W x 14 in. D
Overall: 62 in. W x 30 1/4 in. D x 46 1/4 in. H
6.0 A, 1/3 HP
Requires 120 V/60 Hz/1 ph power supply
480,000 BTU
LP gas

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
120000

Capacity (lbs)
200

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
200

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
4GR45M Series

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
62

Weight
927.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 120000
Capacity (lbs): 200
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 200
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 4GR45M Series
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 62
Weight: 927.00
