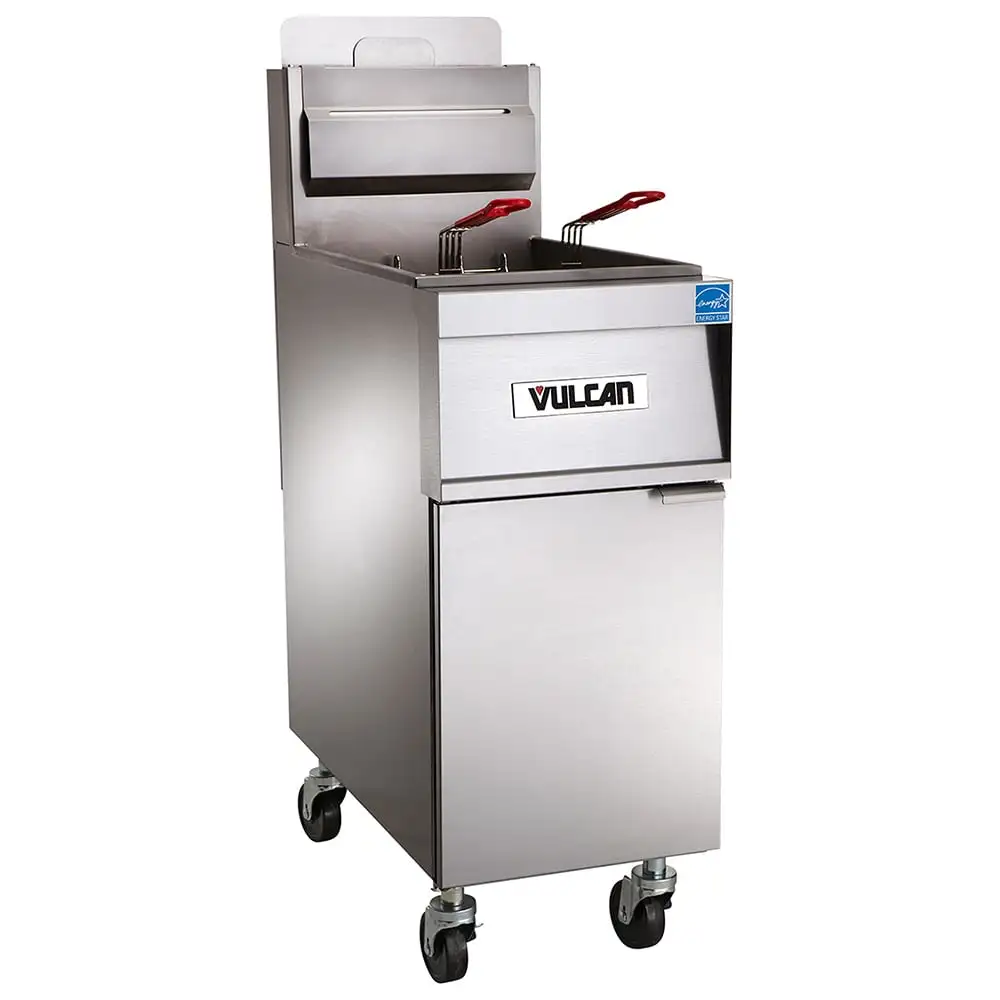

Vulcan 4TR45AF Gas Fryer - (4) 50 Lb Vats, Floor Model, Liquid Propane

The Vulcan 4TR45AF gas fryer outputs 280,000 BTU overall; with its SoftStart® ignition system, it can heat oil quickly while outputting 140,000 BTU an hour. When the oil reaches set temps and the unit is idle, each vat needs just 4,318 BTU per hour to maintain the cooking temperature. This unit can be set between 200 and 390 degrees Fahrenheit with its solid-state digital controls, while its user-selectable fat melt modes can accommodate various shortening types. Should the fryer's oil exceed safe temperatures, this unit features a hi-limit shut-off to minimize fire risks.
This fryer measures 62 inches wide by 30 1/8 inches deep by 47 1/8 inches high. It's equipped with four fry tanks that measure 14 inches wide by 14 inches deep and can hold 45 to 50 pounds of oil each. Each fry tank can hold two 6 1/2-inch-wide by 13 1/4-inch-deep by 6-inch-high twin baskets that feature plastic-coated handles to reduce heat transfer to operators' palms. To extend its service life, the cabinet and tank are constructed of durable stainless steel.
The Vulcan 4TR45AF gas fryer prolongs oil quality with the KleenScreen PLUS® filtration system, which circulates 8 gallons of frying compound per minute with its 1/3-horsepower motor. This system sifts oil through both sides of a stainless steel mesh screen to remove sediment. When oil needs to be replaced, it can be removed through the 1 1/4-inch drain valve and into the 18-gauge stainless steel filter pan, which can hold 70 pounds of oil. To further simplify cleaning, it includes a tank brush and clean-out rod.

Product Details





Part of the PowerFry3® series
4 frypots with 50-lb. oil capacity
Temperature range: 200-390 degrees F
Solid-state analog knob control behind door
User-selectable fat melt modes
ThreePass® heat transfer system offers 72 percent thermal efficiency and 60.9 percent cooking efficiency
SoftStart electronic ignition system uses 140,000 BTUs
Twin baskets feature plastic-coated handles (2 per frypot)
Stainless steel cabinet and fry tank
(4) 6-in. casters (2 locking and 2 non-locking)
Hi-limit shut-off
1 1/4-in. port ball-type drain valve

KleenScreen PLUS Filtration System





18-ga. stainless steel filter pan with 70-lb. oil capacity
Stainless steel filter mesh screen
Circulates frying compound at 8 gallons per minute
Push-button activated
1 1/4-in. port ball type drain valve
Drain valve interlock switch automatically turns off gas burners
Includes high-temperature discard hose

Dimensions & Utilities





Twin baskets: 6 1/2 in. W x 13 1/4 in. D x 6 in. H
Fry tanks: 14 in. W x 14 in. D
Overall: 62 in. W x 30 1/8 in. D x 47 1/8 in. H
6 A, 1/3 HP motor
120 V/60 Hz/ 1 ph
LP gas powered
280,000 BTU

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
200

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
200

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
62

Weight
871.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 200
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 200
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 62
Weight: 871.00
