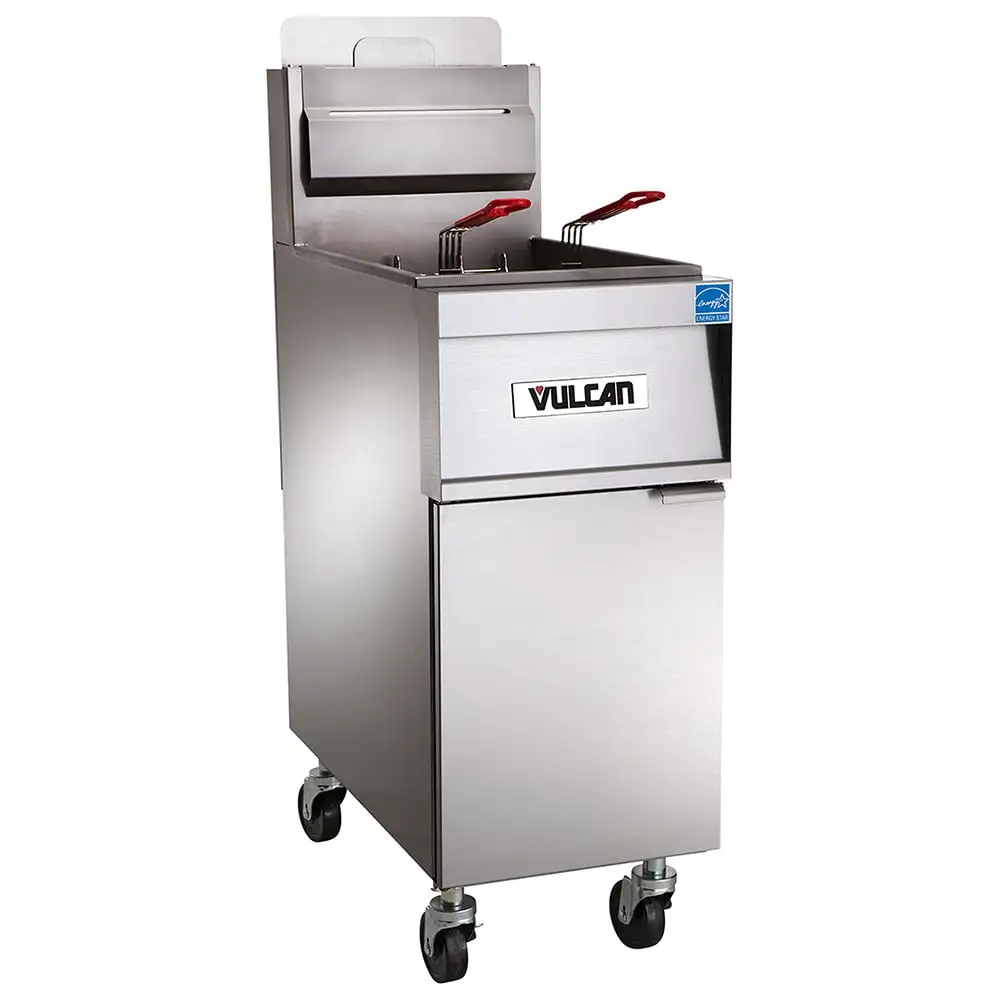

Vulcan 4TR65AF Gas Fryer - (4) 70 Lb Vats, Floor Model, Liquid Propane

The Vulcan 4TR65AF PowerFry3® gas fryer is built with four 70-pound-capacity frypots to maximize throughput and streamline frying multiple foods at once. Each vat comes with twin fryer baskets to lower contents into the tanks and lift them from the hot oil; for user safety, the baskets' handles are coated with plastic. Staff can independently adjust the vats' controls using the solid-state analog knobs; each frypot's temperature can be set from 200 to 390 degrees Fahrenheit, and users can select a fat-melt mode when using solid shortening. This LP-gas-powered unit features a ThreePass® heat transfer mechanism that effectively distributes heat throughout oil, yielding 60 percent cooking efficiency and 72 percent thermal efficiency in medium- and high-volume operations. To save energy while quickly heating oil upon startup, the SoftStart® ignition system outputs only 40,000 BTUs per hour, or half the unit's maximum hourly BTU output. The idle temperature setting can maintain set temperatures while outputting only 5,083 BTUs per hour.
This 84-inch-wide by 30 1/8-inch-deep by 47 1/4-inch-tall fryer establishes a comfortable 36 1/4-inch working height and is positioned on four 6-inch casters that provide smooth mobility for cleaning or maintenance. For stability during use, two of the casters can be locked. To endure the rigors of extensive back-of-house use, its vats and cabinet are made of durable, rust-resistant stainless steel.
To extend oil life, users can activate the Vulcan 4TR65AF commercial fryer's integrated KleenScreen PLUS® filtration system with the push of a button. While its pump and motor circulate hot oil at 8 gallons per minute, its stainless steel mesh filter screen catches debris from two sides, establishing a filtration area as large as 350 square inches. For enhanced safety, the drain interlock switch automatically turns off the gas burners as oil drains. The seamless stainless steel filtration pan accommodates 110 pounds and can be removed and emptied when desired. To eliminate manual tasks, the oil-return tube directs filtered shortening back to the frypots when the filtration drawer is closed.

Product Details





Part of the PowerFry3 and TR65 series
(4) 70-lb. frypots
SoftStart ignition system outputs 40,000 BTUs per hour to save energy while increasing oil temperature
ThreePass mechanism yields 60 percent cooking efficiency and 72 percent thermal efficiency
Idle temperature setting maintains set temperatures at 5,083 BTUs per hour
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff mechanism
Freestanding unit with 4 batteries
Stainless steel cabinet and frypots
8 fryer baskets (2 per frypot) with plastic-coated handles to minimize heat transfer
Tank brush and clean-out rod included
1 1/4-in. full-port ball-type drain valve
(4) 6-in. adjustable casters (2 with locks)
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(4) 80,000 BTU

Solid-state Analog Knob Controls





Electronic ignition
Operating temperature range: 200-390 degrees F
User-selectable fat-melt modes

Filtration System Details





Stainless steel mesh filter screen filters from 2 sides to establish a 270-350-sq.-in. filter area
1-touch button activates motor and pump
Drain valve interlock switch shuts off burners when drain valve is opened
Seamless 18-ga. stainless steel filter pan with 110-lb. oil capacity
8-GPM motor and pump
Hands-free oil-return tube

Dimensions & Utilities





84 in. W x 30 1/8 in. D x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
280

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
280

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1136.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 280
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 280
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1136.00
