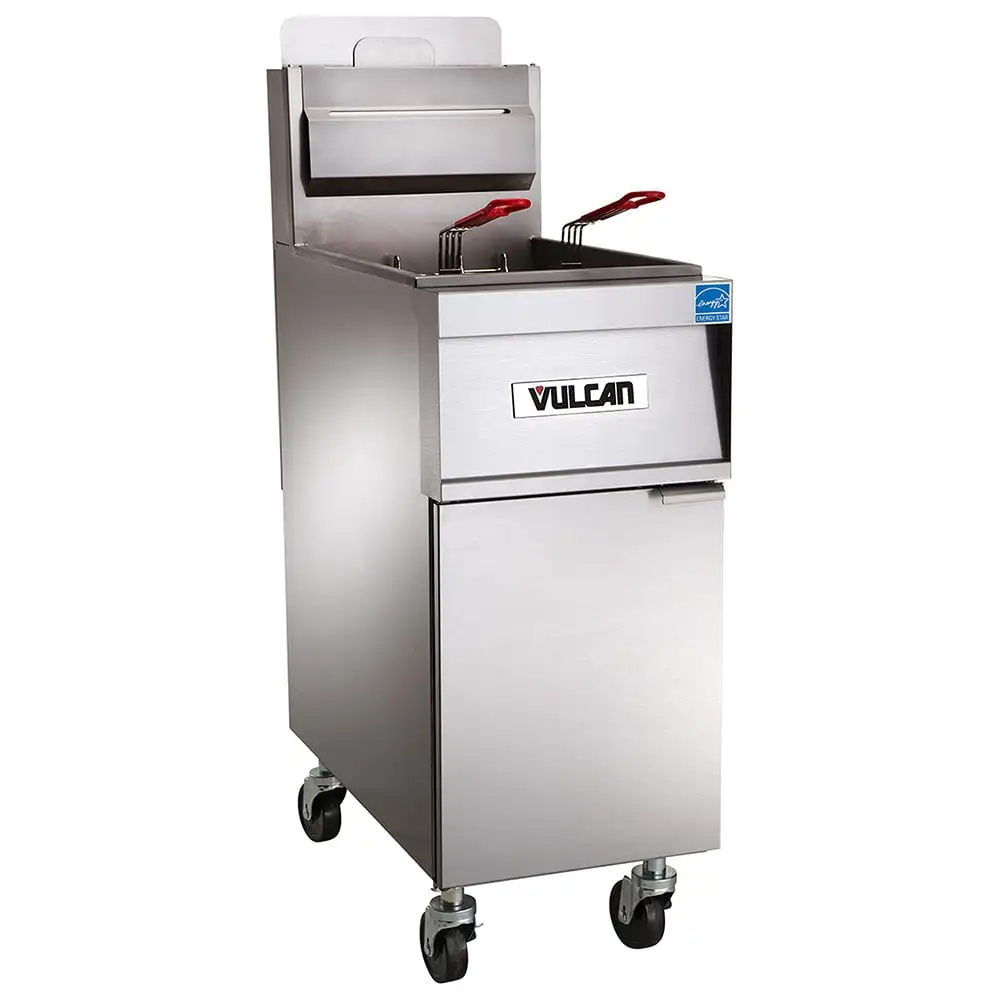

Vulcan 4TR65CF Gas Fryer - (4) 70 Lb Vats, Floor Model, Natural Gas

Powered by natural gas, the Vulcan 4TR65CF commercial fryer can output 320,000 BTUs per hour, or 80,000 BTUs for each of its four frypots. To minimize energy usage, it's part of the PowerFry3® series, which uses the ThreePass® heat transfer system, yielding 60 percent cooking efficiency and 72 percent thermal efficiency. When initially heating oil, its SoftStart® ignition system outputs only 40,000 BTUs per hour to save energy. The idle temperature setting maintains oil temperature during slow periods by reducing energy consumption to 5,083 BTUs per hour. To streamline setup, each vat has a corresponding computer control system with 10 menu timers, temperature controls from 200 to 390 degrees Fahrenheit, USB programming capabilities, the option to cook with compensating or actual time, and three melt modes. A digital character display provides accurate temperature readouts in Fahrenheit or Celsius so users can ensure each frypot is programmed to the right setting.
Each vat in this 84-inch-wide by 30 1/8-inch-deep by 47 1/4-inch-tall fryer can hold 70 pounds of oila€”ideal for frying a range of foods simultaneously without risking flavor transfer. Users can lower and lift foods using the eight included fryer baskets, and their plastic-coated handles minimize heat transfer for staff safety. This unit is fitted with four 6-inch casters to simplify repositioning, and two of the casters can be locked for transport. To withstand long-term back-of-house use, its cabinet and vats are made of durable, rust-, bend-, and scratch-resistant stainless steel.
To uphold oil quality, the Vulcan 4TR65CF high-efficiency fryer's KleenScreen PLUS® filtration system can be engaged with the push of a button. As oil drains, the drain interlock switch automatically turns off the burners. The motor and pump circulate hot shortening at 8 gallons per minute, and the stainless steel mesh filter screen filters from two sides, creating a filtration area between 270 and 350 square inches. The stainless steel filter pan can hold 110 pounds and is simple to remove, empty, and clean as needed. Once oil is filtered, the oil-return tube can direct it back to the vats when the filtration drawer is closed.

Product Details





Part of the PowerFry3 and TR65 series
4-battery freestanding configuration with (4) 70-lb.-capacity frypots
36 1/4-in. working height
Stainless steel cabinet and frypots
8 fryer baskets with plastic-coated handles (2 fryer baskets per frypot)
SoftStart ignition system outputs 40,000 BTUs per hour while quickly heating oil
ThreePass mechanism enhances energy efficiency by uniformly distributing heat
Idle temperature setting outputs 5,083 BTUs per hour during slow periods
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
Tank brush and clean-out rod included
1 1/4-in. full-port ball-type drain valve
(4) 6-in. adjustable casters (2 with locks)
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(4) 80,000 BTU

Computer Controls





Electronic ignition
Can cook with compensating time or actual time
10 menu timers display product name and cook time
Items can be programmed offline using a USB interface (software included)
Operating temperature range: 200-390 degrees F
Digital character display can be set to Fahrenheit or Celsius
3 melt modes

Filtration System Details





Mounted on a pull-out base drawer
110-lb.-capacity seamless 18-ga. stainless steel filter pan
1-touch activation button
Motor and pump circulate oil at 8 GPM
Stainless steel mesh screen filters from 2 sides
270-350-sq.-in. filtration area
Drain valve interlock switch shuts burners down during oil draining
Hands-free oil-return tube

Dimensions & Utilities





84 in. W x 30 1/8 in. D x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
280

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
280

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1136.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 280
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 280
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1136.00
