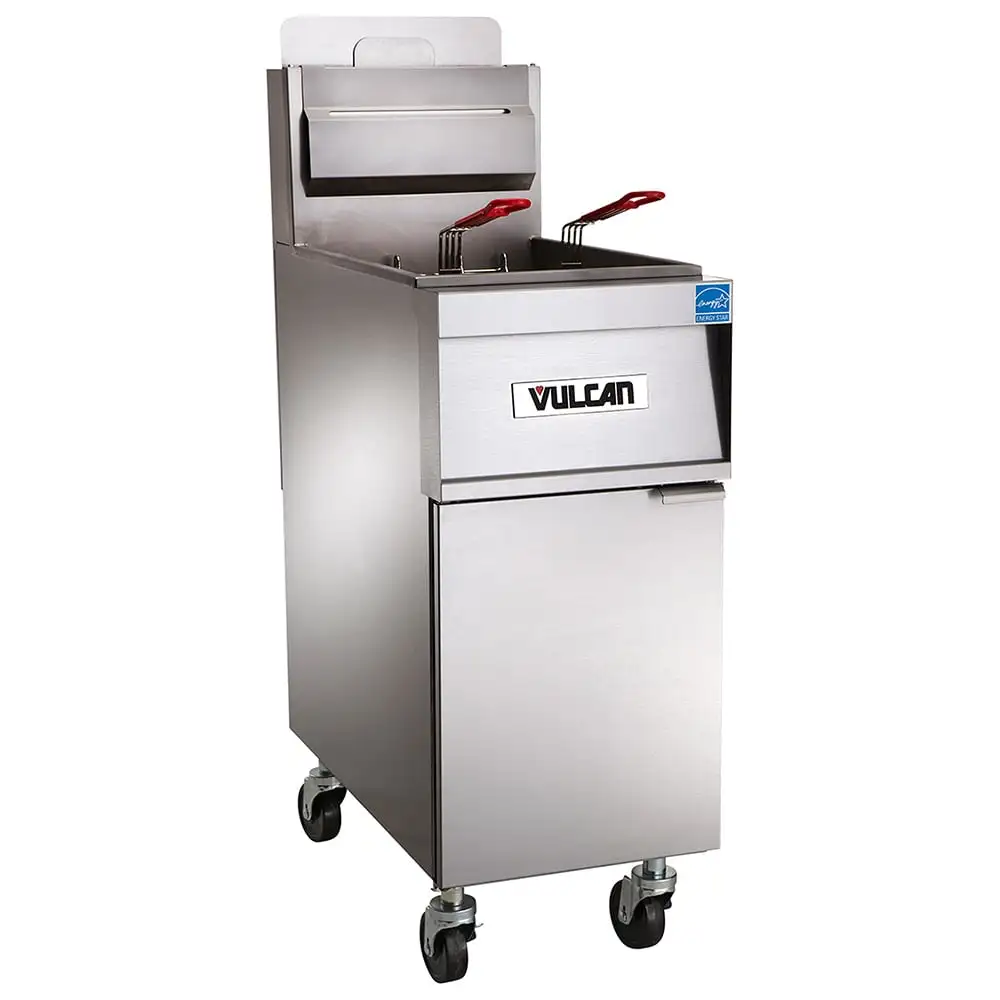

Vulcan 4TR65AF Gas Fryer - (4) 70 Lb Vats, Floor Model, Natural Gas

Equipped for medium- and high-volume applications, the Vulcan 4TR65AF PowerFry3® high-efficiency gas fryer is built with four 70-pound-capacity fry tanks. This unit is powered by natural gas and can output 320,000 BTUs per hour, or 80,000 BTUs per hour for each frypot. Once users set temperatures between 200 and 390 degrees Fahrenheit with the solid-state analog control knobs, the ThreePass® heat transfer system uniformly directs heat throughout the oil to enhance thermal and cooking efficiency. To further save energy and reduce lag time, the SoftStart® ignition system outputs 40,000 BTUs per hour to quickly warm oil upon startup. The idle temperature setting outputs only 5,083 BTUs per hour to maintain the desired temperature.
A KleenScreen PLUS® filtration system is built into the unit's base to promote frequent filtering. Designed to activate filtration cycles twice per day, this system can be engaged with the push of a button. The drain interlock switch automatically shuts down the burners as oil drain. While its stainless steel mesh filter screen establishes a 350-square-inch filtration area, its pump and motor circulate oil at 8 gallons per minute. Its seamless stainless steel filtration pan boasts a 110-pound capacity,and is simple to remove as needed. The oil-return tube can guide filtered oil back to the vats once the filtration drawer is shut.
Employees can work comfortably at the Vulcan 4TR65AF commercial gas fryer because its 84-inch-wide by 30 1/8-inch-deep by 47 1/4-inch-tall fryer creates a 36 1/4-inch working height. To reduce the risk of burns when lowering and lifting food, the included fryer baskets' handles are coated with plastic that minimizes heat transfer. The vats and cabinet are made of durable stainless steel for lasting rust, corrosion, dent, and scratch resistance; these surfaces are also simple to wipe clean to maintain a sanitary workspace. Because this fryer is mounted on four 6-inch casters, it can be repositioned for cleaning or maintenance, and two of the casters can be locked in place for stability during use.

Product Details





Featured in the PowerFry3 and TR65 collection
Freestanding 4-battery unit with (4) 70-lb. frypots
36 1/4-in. working height
Stainless steel cabinet and frypots
8 fryer baskets with plastic-coated handles (2 per frypot)
SoftStart ignition system outputs 40,000 BTUs per hour while heating oil
ThreePass mechanism enhances thermal and cooking efficiency in high-volume operations
Idle temperature setting maintains set temperatures by outputting 5,083 BTUs per hour
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff feature
Tank brush and clean-out rod included
1 1/4-in. full-port ball-type drain valve
(4) 6-in. adjustable casters (2 with locks)
6-in. clearance required at sides and rear
16-in. minimum clearance to adjacent open-top burner units
(4) 80,000 BTU

Solid-state Analog Knob Controls





Electronic matchless ignition
Operating temperature range: 200-390 degrees F
User-selectable fat-melt modes

Filtration System Details





Positioned on a pull-out drawer assembly
1-touch button activates motor and pump
Motor and pump circulate oil at 8 GPM
Stainless steel mesh filter establishes a filtration area as large as 350 sq. in.
Drain valve interlock switch shuts off burners when drain valve is opened
Seamless 18-ga. stainless steel filter pan can hold 110 lb. of oil
Hands-free oil-return tube

Dimensions & Utilities





84 in. W x 30 1/8 in. D x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
280

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
280

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1136.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 280
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 280
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1136.00
