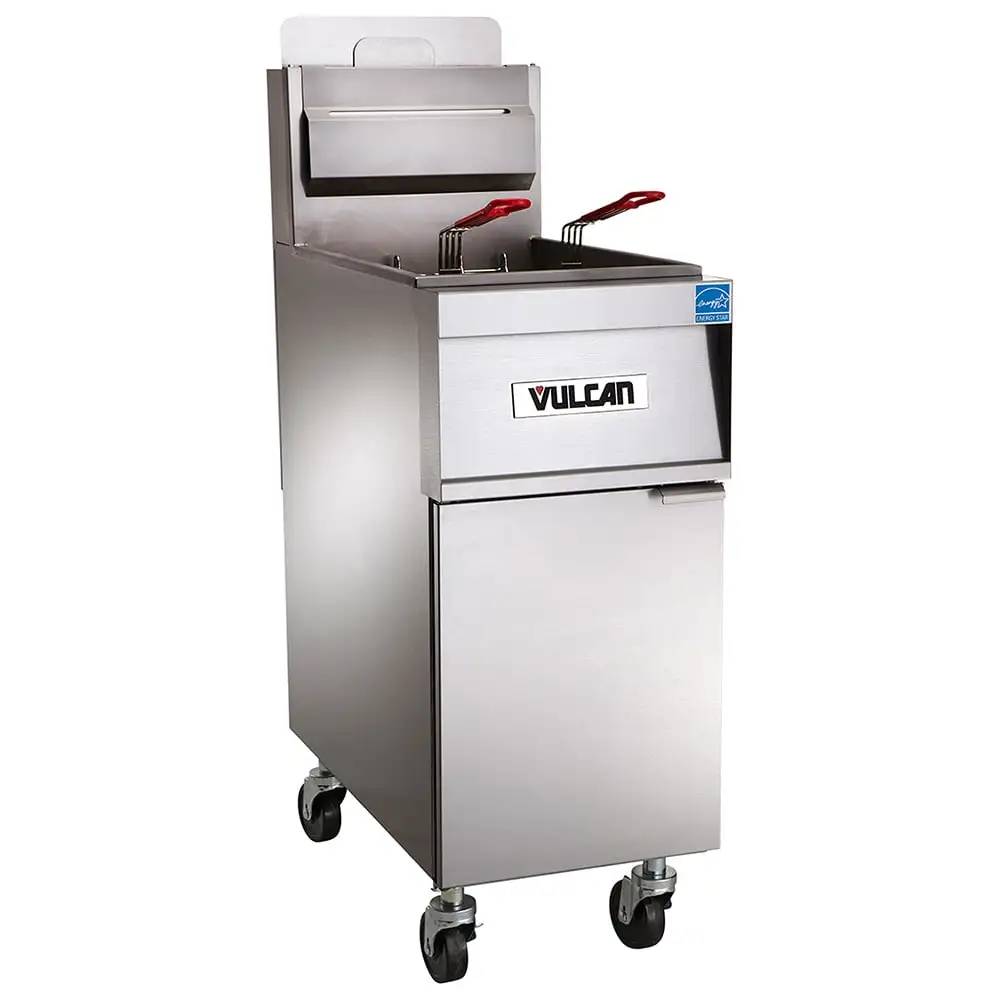

Vulcan 4TR85CF Gas Fryer - (4) 90 Lb Vats, Floor Model, Liquid Propane

The Vulcan 4TR85CF PowerFry3® commercial gas fryer is a four-battery unit comprised of four 90-pound-capacity vats to streamline frying different products while maximizing output. Each vat comes with twin fryer baskets to simplify lowering and lifting breaded products, while their plastic-coated handles protect hands from heat transfer. For comfort throughout frying, this 84-inch-wide by 34 3/8-inch-deep by 47 1/4-inch-tall unit establishes an ergonomic 36 1/4-inch working height. This unit is mounted on four 6-inch casters that provide smooth mobility for repositioning, and for lasting durability in fast-paced kitchens, the vats and cabinet are made of dent-, scratch-, and rust-resistant stainless steel.
Staff can use the computer controls to adjust each vat's temperature from 200 to 390 degrees Fahrenheit, select from 10 menu timers, use one of three melt modes, and choose to cook with actual or compensating time. To save time setting up the vats for common menu items, users can program the required temperature and cook time for foods offline with the USB interface. The digital display provides accurate temperature readouts in Fahrenheit or Celsius; in total, this LP-gas-powered unit can output 360,000 BTUs per hour, or 90,000 BTUs per hour for each frypot. To enhance energy efficiency, its ThreePass® heat transfer system yields 72 percent thermal efficiency and 60 percent cooking efficiency, while the SoftStart® ignition system quickly heats oil while outputting only 45,000 BTUs per hour for each vat; the idle temperature setting maintains set temperatures by outputting 5,575 BTUs per vat every hour.
The KleenScreen PLUS® filtration system is integrated on a pull-out drawer in the Vulcan 4TR85CF commercial fryer's cabinet base. A filtration cycle can be initiated with the push of a button, while the drain valve interlock switch turns off the gas burners as oil drains. Its 1/3-horsepower pump and motor circulate oil 8 gallons of oil per minute to expedite filtration, while the stainless steel mesh screen filter removes debris and particulates from two sides. The included stainless steel filtration pan can hold 110 pounds of oil and can be removed with ease to streamline emptying and cleaning; as the filtration drawer is pushed in, the oil-return tube self-seals to guide filtered shortening back to the four vats.

Product Details





Part of the PowerFry3 VK85 series
4-battery freestanding unit
(4) 90-lb. frypots
36 1/4-in. working height
Stainless steel cabinet and frypots
8 stainless steel fryer baskets featuring plastic-coated handles (2 per frypot)
Rests on (4) 6-in. adjustable casters (2 with locks)
ThreePass heat transfer system yields 60 percent cooking efficiency and 72 percent thermal efficiency
SoftStart ignition system outputs 45,000 BTUs per hour to quickly heat oil
Idle temperature mode outputs 5,575 BTUs per hour to maintain set temperature
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff system
Tank brush and clean-out rod included
1 1/4-in. full-port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(4) 90,000 BTU

Computer Controls





Electronic ignition
10 menu timers display product name and cook time
Items can be programmed offline using USB interface (software included)
Operating temperature range: 200-390 degrees F
Digital character display can be set to Fahrenheit or Celsius
3 melt modes
Provides choice to cook with compensating time or actual time

Filtration System Details





Pull-out base drawer assembly
Seamless, lightweight stainless steel filter pan can hold 110 lb. of oil
Stainless steel mesh filter screen creates filtration area from 270 to 350 sq. in.
1-touch push button engages pump and motor
Pump and motor boast 8-GPM circulation rate
Drain valve interlock switch automatically turns off burners as oil is drained
Hands-free oil-return tube directs filtered oil back to the tanks

Dimensions & Utilities





84 in. W x 34 3/8 in. D x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
360

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
360

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1236.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 360
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 360
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1236.00
