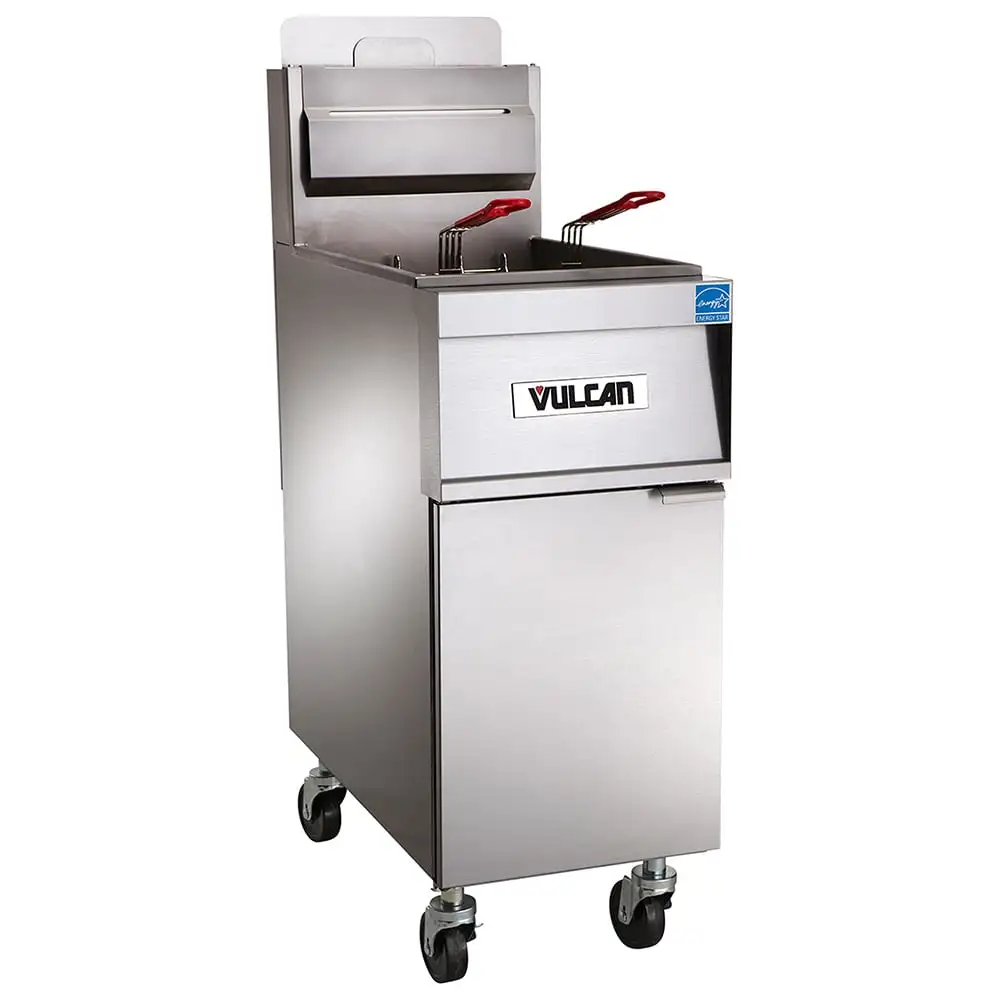

Vulcan 4TR85CF Gas Fryer - (4) 90 Lb Vats, Floor Model, Natural Gas

Powered by natural gas, the Vulcan 4TR85CF high-efficiency commercial fryer can output 360,000 BTUs per houra€”90,000 BTUs per hour for each of its four 90-pound-capacity frypots. Each vat is equipped with individual corresponding computer controls comprised of 10 menu timers, temperature control from 200 to 390 degrees Fahrenheit, the option to cook with compensating or actual time, three melt modes, and digital displays that provide Fahrenheit or Celsius readouts. Once each vat is programmed, they quickly heat oil with the SoftStart® ignition system, which outputs 45,000 BTUs per hour for each vat. The ThreePass® heat transfer system evenly distributes heat throughout the oil to establish 72 percent thermal efficiency and 60 percent cooking efficiency. To maintain the set temperature, the idle temperature setting outputs as much as 5,575 BTUs per hour to further save energy.
To prolong oil life, a KleenScreen PLUS® filtration system is built into the unit's base on a pull-out drawer. Its seamless, 18-gauge stainless steel filter pan can hold 110 pounds of oil, and to expedite filtration, the pump and motor can be activated with the push of a button. The drain valve interlock switch automatically turns off the burners when oil drains. As the pump and motor circulate 8 gallons of hot oil per minute, the stainless steel mesh filter screen removes particulates from two sides, creating a filtration area as large as 350 square inches. Once filtration is complete, users can close the filter drawer to self-seal the oil-return tube so it can properly add oil back to the vats.
Overall, the Vulcan 4TR85CF freestanding gas fryer measures 84 inches wide by 34 3/8 inches deep by 47 1/4 inches tall and is fitted with four 6-inch-diameter casters for cleaning and maintenance movement; two of these casters can be locked in place for stability during use. The cabinet and vats are made of stainless steela€”rust-, dent-, and scratch-resistant metal that's simple to wipe clean and durable enough to withstand high-volume back-of-house use. To streamline frying, each frypot is equipped with twin fryer baskets capped by plastic-coated handles that protect staff from burns when lifting breaded foods from vats of hot oil.

Product Details





Part of the PowerFry3 VK85 collection
Freestanding unit with 4 batteries
(4) 90-lb.-capacity frypots
36 1/4-in. working height
Rust-resistant stainless steel frypots and cabinet
2 stainless steel fryer baskets with plastic-coated handles per frypot (8 total)
Positioned on (4) 6-in. adjustable casters (2 locking)
ThreePass heat transfer system enhances cooking and thermal efficiency
SoftStart ignition system quickly heats oil while outputting 45,000 BTUs per hour for each vat
Idle temperature mode can output 5,575 BTUs per hour to maintain set temperature
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff mechanism
Includes tank brushes and clean-out rods
1 1/4-in. full-port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(4) 90,000 BTU

Computer Controls





Electronic ignition
10 menu timers display product name and cook time
Items can be programmed offline with USB interface (software included)
Operating temperature range: 200-390 degrees F
Digital character display can be set to Fahrenheit or Celsius
3 melt modes
Choice to cook with compensating time or actual time

Filtration System Details





Fitted on pull-out base drawer
110-lb.-capacity stainless steel filter pan
Stainless steel mesh filter screen eliminates debris from 2 sides
1-touch push-button-activated pump and motor
8-GPM oil circulation rate
Drain valve interlock switch automatically shuts burners off as oil drains
Hands-free oil-return tube

Dimensions & Utilities





84 in. W x 34 3/8 in. D x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
360

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
360

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1236.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 360
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 360
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1236.00
