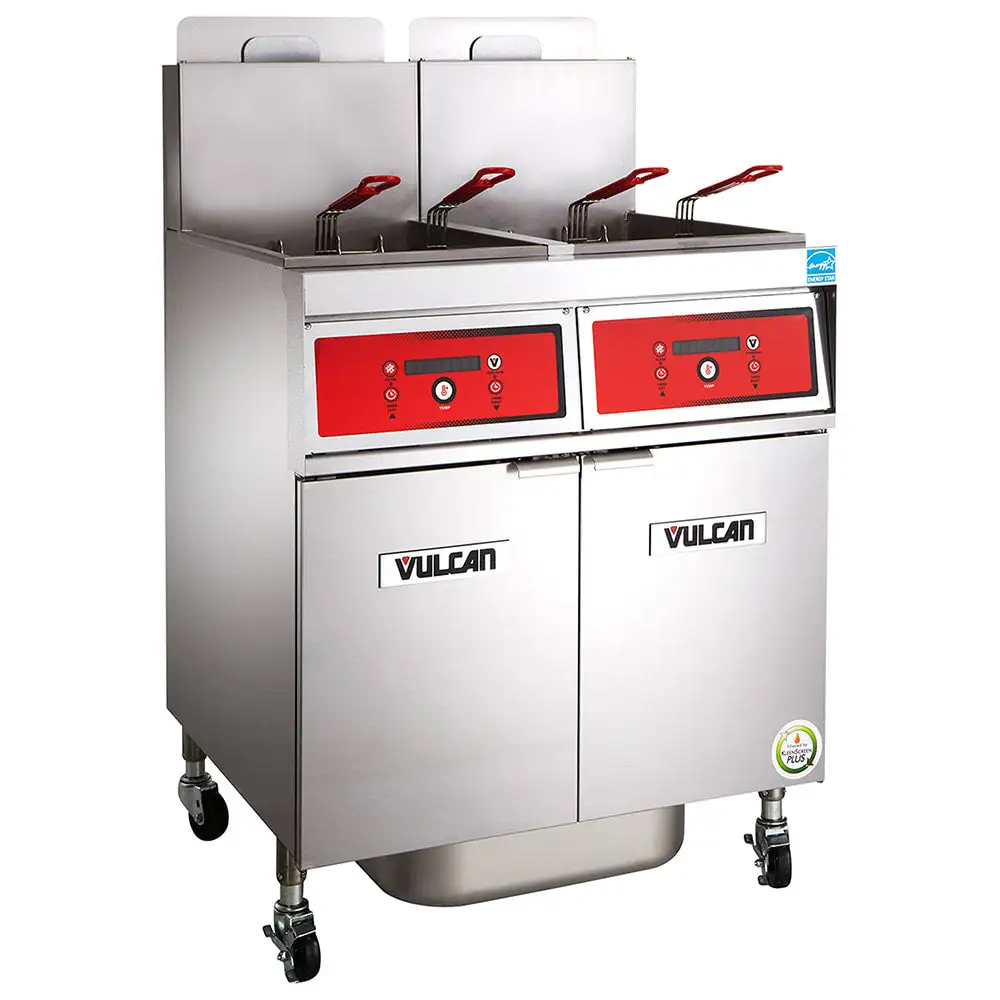

Vulcan 4VK45DF Gas Fryer - (4) 50 Lb Vats, Floor Model, Liquid Propane

The Vulcan 4VK45DF LP gas fryer features an electronic ignition system imbued with SoftStart® technology; this system heats oil gradually at startup to save energy and reduce chances of overheating. For high-temperature protection, it has a hi-limit shut-off system; meanwhile, a "V"-shaped cold zone catches loose sediments to further minimize burning risk. To preserve the oil's taste and color, the Kleenscreen Plus® filtration system traps fine particulates. While its stainless steel mesh screen provides filtration from two sides, the motor and pump circulate oil at 8 gallons per minute at the touch of a button. The stainless steel filter pan can collect as much as 70 pounds of polluted compound, which can be disposed through the 6-foot, high-temperature discard hose. Users should activate the drain valve interlock switch to disconnect the gas before draining.
To ensure foods are cooked thoroughly with minimal heat lag, this fryer has a 200-to-390-degree-Fahrenheit temperature range generated by a FivePass® heating system. Users can monitor fluctuations through the digital thermostat, which offers readouts in Fahrenheit or Celsius. Staff can use the two countdown timers to account for compensating time, and for restaurants with solid shortening, this unit has three melt modes. During idle periods it drops to 4,251 BTUs to reduce operating costs without shutting down the fryer.
Part of the PowerFry5® collection, the Vulcan 4VK45DF fryer boasts four fry tanks and a base cabinet, all of which are constructed of sturdy stainless steel. These fry tanks can hold as much as 50 pounds of frying compound each and boasts a 36 1/4-inch working height for straightforward, comfortable access to the cooking area. Eight fryer baskets effectively contain breaded product during frying, and to reduce heat transfer as users handle the baskets, they feature plastic-coated handles. After hours, users can clear the tank through the 1 1/4-inch full-port, ball-type drain valve and use the tank brush and clean-out rod to scrub all contaminated parts. For efficient cleaning, staff can run the boil-out solution through the tank and remove it with the automatic boil-out mode. The unit's mounted on four 6-inch swivel casters so staff can transport it as needed; two of these casters have locks that can be engaged to hold the fryer in place. Overall, it measures 62 inches wide by 30 1/8 inches deep by 47 1/8 inches high.

Product Details





Part of the PowerFry5 series
45-50-lb. individual frypot capacity
4 frypots
Cabinet and fry tank constructed of stainless steel
4 sets of twin fry baskets (8 baskets total)
Plastic-coated basket handles minimize risk of burns
36 1/4-in. working height
Temperature range: 200-390 degrees F
Rapid heat recovery
Electronic ignition
SoftStart ignition conserves energy and extends oil life
Hi-limit shut off
FivePass® heat transfer system yields 66 percent cooking and 78 percent thermal efficiency
Idle temperature setting saves energy by outputting only 4,251 BTU
"V"-shaped cold zone catches loose particulates and debris
1 1/4-in. full-port, ball-type drain valve
4 adjustable 6-in. casters (2 locking and 2 non-locking)
Includes tank brush and clean-out rod
(4) 70,000 BTUs per hour

Digital Control System





Digital thermostat displays readouts in Fahrenheit or Celsius
2 countdown timers ease operation
3 melt modes for solid compounds
Auto boil-out mode
Option to cook with compensating time or actual time

Filtration System





70-lb. filter pan capacity
Stainless steel filter pan
KleenScreen PLUS filtration system preserves oil taste and color
2-sided stainless steel mesh filter
Drain valve interlock switch
1/3-HP motor and pump circulates frying compound at 8 GPM
Motor and pump engaged by push button
6-ft. high-temperature discard hose streamlines oil removal

Dimensions and Utilities





62 in. W x 30 1/8 in. D x 47 1/8 in. H
115-120 V/ 60 Hz/ 1 ph with NEMA 5-15P plug
7 A, 1/3 HP motor
Powered by LP gas
1 1/4-in. rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
200

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
200

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
62

Weight
871.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 200
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 200
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 62
Weight: 871.00
