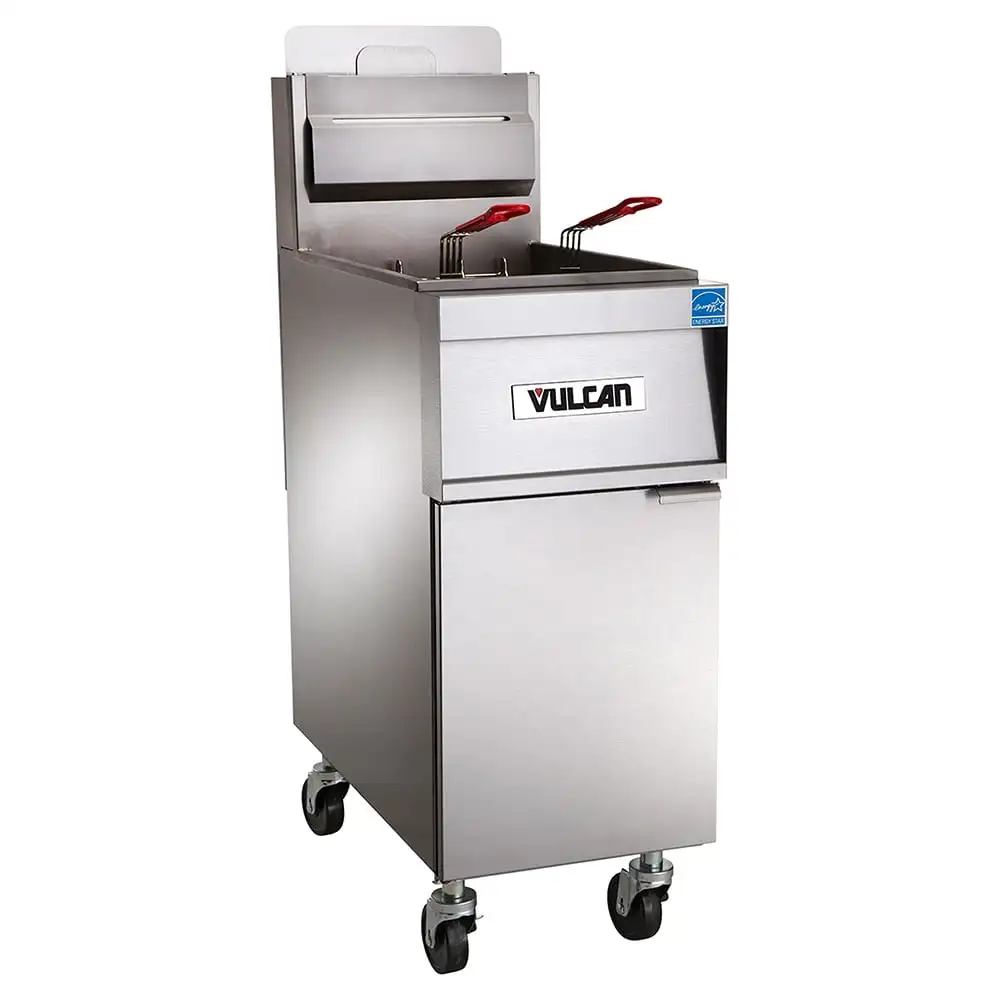

Vulcan 4TR85DF Gas Fryer - (4) 90 Lb Vats, Floor Model, Natural Gas

Great for frying large volumes of fish, chicken, dumplings, mozzarella sticks, and other breaded favorites, the Vulcan 4TR85DF floor-model gas fryer is a four-battery unit featuring four 90-pound-capacity frypots. Each fry tank comes with a fryer basket that secures food as it's lowered, fried, and lifted; these baskets feature plastic-coated handles to protect users from becoming scalded because of heat transfer. This 84-inch-wide by 34 3/8-inch-deep by 47 1/4-inch-tall unit establishes a 36 1/4-inch working height and is made of durable stainless steel for scratch, dent, and rust resistance. Because it's positioned on four 6-inch-diameter casters, it can be transported short distances when cleaning or servicing is required. Two of these casters can be locked to secure the unit in place during operation.
To accommodate the various cooking requirements of different products, the frypots have individual digital solid-state controls. Staff can set each vat's temperature between 200 and 390 degrees Fahrenheit, choose from three melt modes, set two countdown timers, select to cook with actual or compensating time, and start an auto boil-out cycle. Once settings are programmed, the digital display provides an accurate readout in Fahrenheit or Celsius. The SoftStart® ignition system only outputs 45,000 BTUs per hour for each vata€”half of each vat's maximum hourly BTU outputa€”to expedite initial oil heating. To yield 60 percent cooking efficiency and 72 percent thermal efficiency, the ThreePass® heat transfer system effectively guides heat throughout the oil. Once the set temperature is reached, the idle setting maintains it by outputting only 5,575 BTUs per hour for each fry tank.
Designed to be used twice per day, the Vulcan 4TR85DF high-efficiency freestanding fryer's KleenScreen PLUS® filtration system can be engaged with the push of a button. The 1/3-horsepower motor and pump circulate 8 gallons of shortening per minute, while the stainless steel mesh filter screen removes debris from two sides. As much as 110 pounds of oil can be drained into the seamless, 18-gauge stainless steel pan, which is positioned on a heavy-duty drawer assembly; users can empty this pan by lifting the large handles. To return filtered oil back to the frypots, the filtration drawer can be closed, sealing the oil-return tube.

Product Details





Part of Vulcan's PowerFry3 VK85 series
Freestanding model creates 36 1/4-in. working height
4-battery configuration comprised of (4) 90-lb.-capacity vats
ThreePass heat transfer system yields 72 percent thermal efficiency and 60 percent cooking efficiency
SoftStart ignition system outputs 45,000 BTUs per hour for each frypot
Idle temperature mode only outputs 5,575 BTUs per hour to maintain set temperature
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff mechanism
Made of durable rust-, dent-, and scratch-resistant stainless steel
8 stainless steel fryer baskets with plastic-coated handles (2 baskets per vat)
Fitted with (4) 6-in. adjustable casters (2 with locks)
Includes tank brushes and clean-out rods
1 1/4-in. full-port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(4) 90,000 BTU

Solid-state Digital Controls





Electronic matchless ignition
Digital character display provides Fahrenheit or Celsius readouts
Operating temperature range: 200-390 degrees F
3 melt modes
2 countdown timers
Automatic boil-out mode
Compensating time or actual time options

Filtration System Details





110-lb.-capacity 18-ga. stainless steel filter pan on a heavy-duty drawer assembly
Stainless steel mesh filter screen establishes filtration area as large as 350 sq. in.
1-touch push-button activates pump and motor
Motor and pump circulate oil at 8 GPM
Drain valve interlock switch automatically turns off burners when oil drains
Hands-free oil-return tube self-seals when the filter drawer is closed

Dimensions & Utilities





84 in. W x 34 3/8 in. D x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
360

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
360

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1236.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 360
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 360
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1236.00
