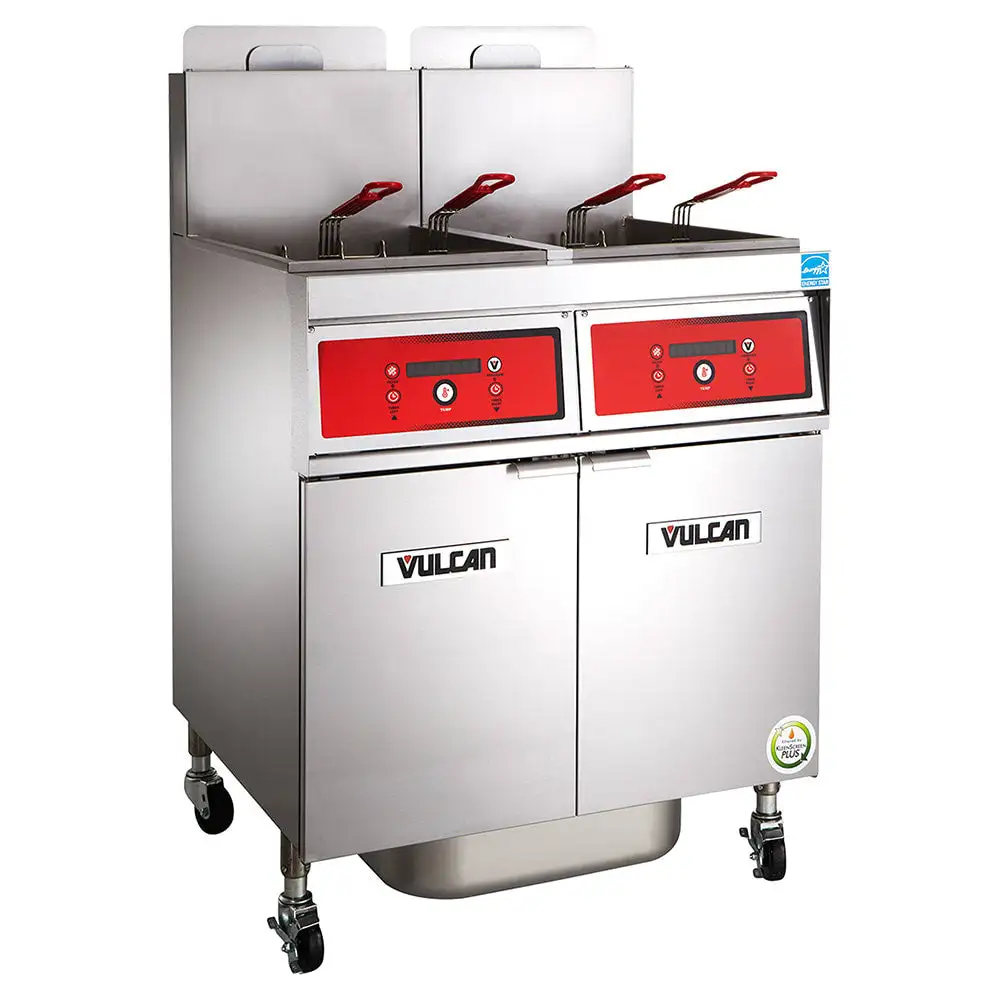

Vulcan 4VK45CF Gas Fryer - (4) 50 Lb Vats, Floor Model, Natural Gas

The Vulcan 4VK45CF PowerFry5® high-efficiency gas fryer is built with four 50-pound-capacity gas fryers, enabling staff to fry shrimp, chicken, dumplings, and potatoes simultaneously to streamline operation. Each frypot comes with two fryer baskets that contain contents during frying, and their plastic-coated handles protect users' hands from burns as they retrieve the baskets from hot oil. To accommodate specific cooking requirements, the vats have individual computer controls that can be programmed to store as many as 10 menu timers. Users can also use these controls to set temperatures from 200 to 390 degrees Fahrenheit, initiate one of three melt modes, and cook with actual or compensating time. Digital screens provide easy-to-read Celsius or Fahrenheit displays.
As a PowerFry5 VK45 unit, this fryer is built with the FivePass® heat transfer systema€”a mechanism that disperses high temperatures throughout oil to yield 78 percent thermal efficiency and 60 percent cooking efficiency. The SoftStart® ignition system only outputs 35,000 BTUs per hour for each frypot to initially heat oil and maintain oil quality. To maintain the desired temperature, the idle temperature setting has to output just 4,251 BTUs per hour. The base-mounted KleenScreen PLUS® filtration system further extends oil life by promoting frequent oil filtration; operators can initiate a filtration cycle with the push of a button. While the motor and pump circulate 8 gallons of oil per minute, the stainless steel mesh filter screen efficiently removes particulates from two sides. Oil drains into the 70-pound-capacity filter pan, and the filtration drawer can be shut to seal the oil-return tube, enabling it to recycle filtered oil back to the frypots.
Overall, the Vulcan 4VK45CF commercial freestanding fryer measures 62 inches wide by 30 1/8 inches deep by 47 1/4 inches deep and creates an ergonomic 36 1/4-inch working height. Its base is positioned on four 6-inch casters that provide smooth mobility when movement is needed for cleaning or maintenance. During use, two of the casters can be locked. All frypots and cabinets are made of durable, rust- and corrosion-resistant stainless steel to match other back-of-house equipment, simplify cleaning, and withstand high-volume use.

Product Details





Part of the PowerFry5 VK45 series
4-battery freestanding model with (4) 50-lb.-capacity frypots
36 1/4-in. working height
Durable stainless steel construction
8 stainless steel fryer baskets feature plastic-coated handles (8 fryer baskets per vat)
(4) 6-in. adjustable casters (2 locking)
FivePass heat transfer system yields 78 percent thermal efficiency and 66 percent cooking efficiency by uniformly dispersing heat
SoftStart ignition system outputs 35,000 BTUs per hour for each frypot while quickly heating oil
Idle temperature mode outputs just 4,251 BTUs per hour to maintain set temperature
Flue temperature doesn't exceed 500 degrees F at maximum production rate
Hi-limit shutoff mechanism
Includes tank brushes and clean-out rods
1 1/4-in. full-port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(4) 70,000 BTU

Computer Controls





Electronic ignition
10 menu timers display product name and cook time
Items can be programmed offline with USB interface (software included)
Operating temperature range: 200-390 degrees F
Digital character display can be set to Fahrenheit or Celsius
Compensating time or actual time cooking options
3 melt modes

Filtration System Details





Heavy-duty drawer assembly located in unit's base
Removable 70-lb.-capacity stainless steel filter pan
2-sided stainless steel mesh filter screen removes debris
Filtration area: 270 to 350 sq. in.
1-touch push-button-activated pump and motor
Motor and pump circulate oil at 8 GPM
Drain valve interlock switch
Self-sealing oil-return tube

Dimensions & Utilities





62 in. W x 30 1/8 in. D x 47 1/4 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
200

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
200

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
62

Weight
871.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 200
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 200
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 62
Weight: 871.00
