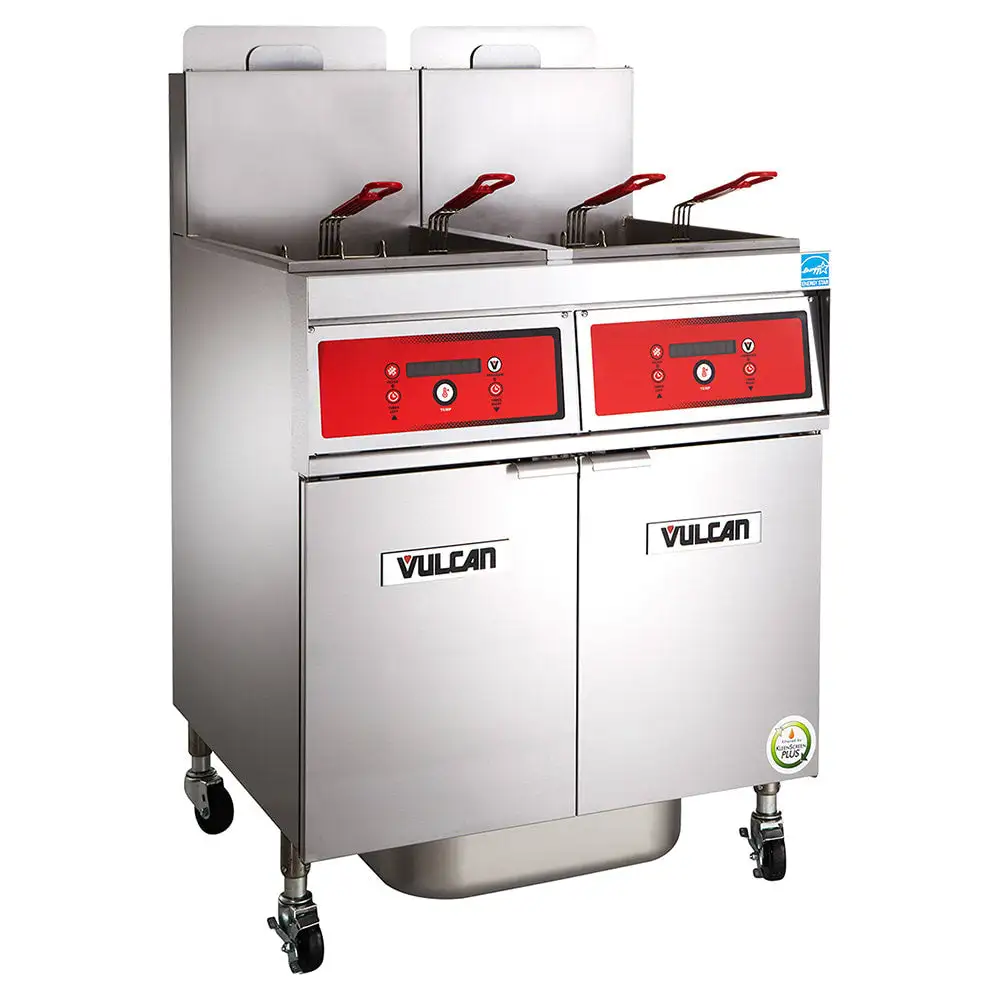

Vulcan 4VK65AF Gas Fryer - (4) 70 Lb Vats, Floor Model, Natural Gas

Featured in the PowerFry5® series, the Vulcan 4VK65AF fryer has four stainless steel fry tanks, each of which can hold 65 to 70 pounds, and a stainless steel base. The unit establishes a 36 1/4-inch working height for comfortable access to the frying area's eight fry baskets. To protect users' hands from burns, these baskets feature handles that have been coated in plastic. For cleaning, users can use the 1 1/4-inch full-port, ball-type drain valve, tank brush, and clean-out rod. Its automatic boil-out mode streamlines boil-out solution removal. For transportation, it's mounted on four 6-inch swivel casters; two casters have locks for stability during use. Overall, this fryer measures 84 inches wide by 30 1/8 inches deep by 47 1/8 inches high.
This unit can be set to temperatures between 200 and 390 degrees Fahrenheit, and this heat is evenly distributed through the oil with the FivePass® heating system. Temperatures can be set with the solid-state analog control knob, which can be accessed through the cabinet door. This fryer features multiple melt modes so staff can use solid frying compounds with ease, and during slow periods, its idle temperature mode uses 4,802 BTU per hour to maintain set temperatures.
This Vulcan 4VK65AF fryer operates with natural gas and features an electronic SoftStart® ignition system. So the unit doesn't exceed the maximum temperature setting, it boasts hi-limit shut-off technology. Its "V"-shaped cold zone traps debris that could otherwise burn and impact oil taste and color, while its Kleenscreen Plus® filtration system further extends oil life by trapping particulates 40 to 60 times smaller than paper filters. While a stainless steel mesh screen catches debris from two sides, the push-button-activated motor and pump circulate oil at 8 gallons per minute for thorough filtration. The stainless steel filter pan collects as much as 110 pounds of waste, which can then be emptied through the 6-foot, high-temperature discard hose. Before draining, users should engage the drain valve interlock switch to disconnect the gas channel.

Product Details





Part of the PowerFry5 series
65-70-lb. capacity per vat
4 frypots
Stainless steel base and fry tanks
8 fry baskets feature plastic-coated handles (2 baskets per tank)
36 1/4-in. working height
Temperature range: 200-390 degrees F
Fast heat recovery
Electronic ignition
SoftStart ignition saves energy during initial use
Idle temperature setting saves energy by outputting just 4,802 BTU
Hi-limit shut off minimizes risk of overheating
FivePass® heat transfer system yields 68 percent cooking and 78 percent thermal efficiency
"V"-shaped cold zone
1 1/4-in. full-port, ball-type drain valve
4 adjustable 6-in. casters (2 with locks)
Tank brush and clean-out rod streamline cleaning
(4) 80,000 BTU per hour

Analog Controls





Independent solid-state analog control knobs can be accessed through cabinet doors
Multiple melt modes for solid oil and shortening

Filtration System





110-lb. filter pan capacity
Stainless steel filter pan
KleenScreen PLUS filtration system lengthens oil life
Stainless steel mesh screen filters from 2 sides
Drain valve interlock switch
1/3-HP motor and pump circulates frying compound at 8 GPM
One-touch switch activates motor and pump with push of a button
6-ft. high-temperature discard hose

Dimensions and Utilities





84 in. W x 30 1/8 in. D x 47 1/8 in. H
115-120 V/60 Hz/1 ph, with NEMA 5-15P plug
7 A, 1/3 HP motor
Powered by natural gas
1 1/4-in. rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
320000

Capacity (lbs)
280

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
280

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1136.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 320000
Capacity (lbs): 280
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 280
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1136.00
