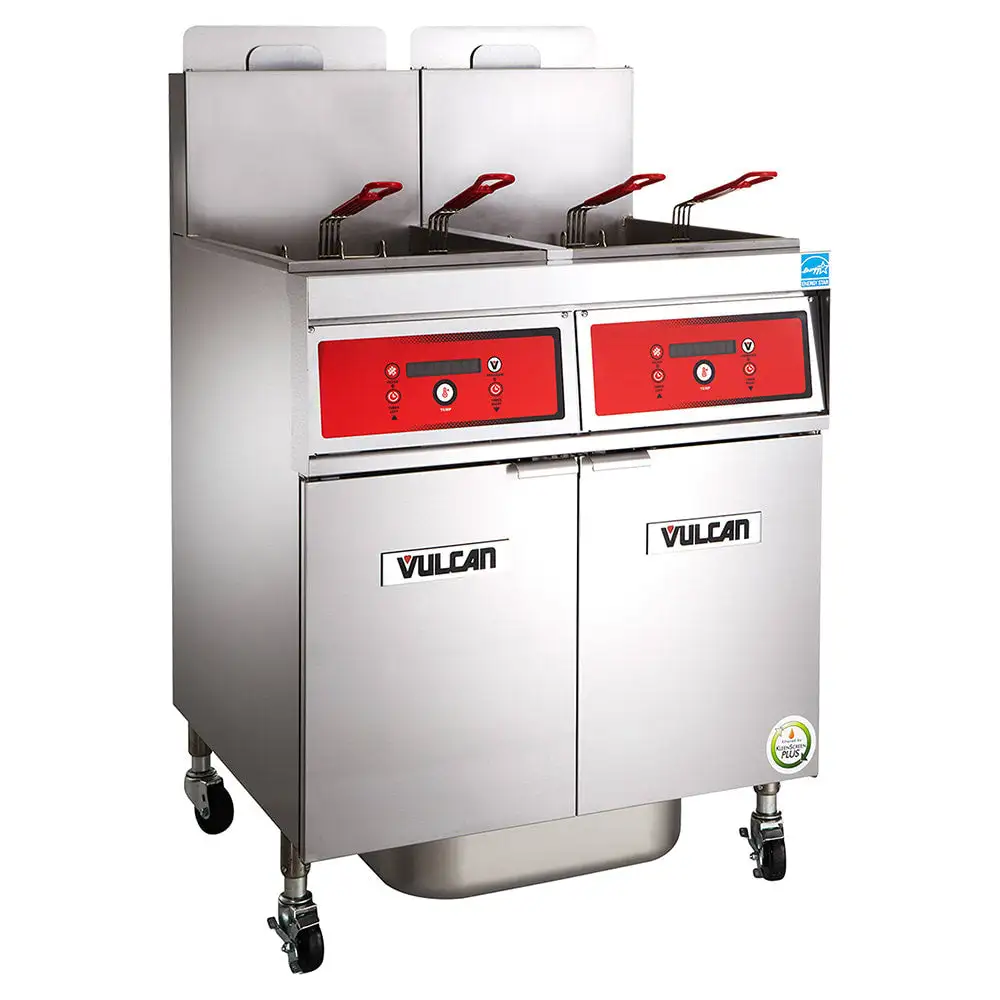

Vulcan 4VK65AF Gas Fryer - (4) 70 Lb Vats, Floor Model, Liquid Propane

Featured in the PowerFry5® collection, the Vulcan 4VK65AF fryer's four fry tanks and base cabinets are constructed of sturdy stainless steel. Each vat can hold 70 pounds of oil and establishes a 36 1/4-inch working height for comfortable access to the frying area. To protect users from burns, the eight fry basketsa€”two per frypota€”have plastic-coated handles. After hours, users can clear the tank through the 1 1/4-inch full-port, ball-type drain valve and use the tank brush and clean-out rod to clean the interior as needed. An automatic boil-out mode further streamlines cleaning by removing boil-out solution. So staff can transport the unit as needed, it's mounted on four swivel casters. Overall, it measures 84 inches wide by 30 1/8 inches deep by 47 1/8 inches high.
For even heating and quick thermal recovery, this fryer's FivePass® heating system generates set temperatures between 200 and 390 degrees Fahrenheit. These temperatures can be set and adjusted using the independent solid-state analog controls located behind the cabinet door. To dissolve solid compounds, users can select from multiple melt modes, and to conserve energy during downtime, this unit drops to 4,802 BTU.
The Vulcan 4VK65AF gas fryer features an electronic ignition system configured with SoftStart® technology; this system heats oil at startup to minimize scorching and save energy. For high-temperature protection it has a hi-limit shut-off system. A "V"-shaped cold zone catches loose sediments to further reduce burn risk. To preserve oil taste and color, the Kleenscreen Plus® filtration system features a stainless steel mesh screen that filters two sides; it also features a motor and pump that circulate oil at 8 gallons per minute with the press of a button. The stainless steel filter pan collects as much as 110 pounds of waste, which can be discarded through the 6-foot, high-temperature hose. For enhanced safety, users should activate the drain valve interlock switch before draining to disconnect the gas.

Product Details





Part of the PowerFry5 series
65-70-lb. capacity per frypot
4 frypots
Fry tank and base cabinet constructed of stainless steel
2 fry baskets with plastic-coated handles per vat
36 1/4-in. working height
Temperature range: 200-390 degrees F
Rapid heat recovery minimizes thermal lag
Electronic ignition system
SoftStart ignition saves energy at startup
Idle temperature setting saves energy by outputting only 4,802 BTU
Hi-limit shut off enhances safety
FivePass heat transfer system yields 68 percent cooking and 78 percent thermal efficiency
"V"-shaped cold zone preserves oil taste and color
1 1/4-in. full-port, ball-type drain valve
2 of 4 adjustable 6-in. casters feature brakes
Includes tank brush and clean-out rod
(4) 80,000 BTUs per hour

Analog Controls





Solid-state analog control knob located behind door
User-selectable melt modes accommodate solid frying compounds

Filtration System





Stainless steel filter pan with 110-lb. capacity
KleenScreen PLUS filtration system extends oil life
Stainless steel mesh screen filters from 2 sides
Drain valve interlock switch
1/3-HP motor and pump circulates frying compound at 8 GPM
Pump and motor triggered by 1-touch, push-button
6-ft. high-temperature discard hose

Dimensions and Utilities





84 in. W x 30 1/8 in. D x 47 1/8 in. H
115-120 V/60 Hz/1 ph, with NEMA 5-15P plug
7 A, 1/3 HP motor
Powered by LP gas
1 1/4-in. rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
320000

Capacity (lbs)
280

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
280

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1136.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 320000
Capacity (lbs): 280
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 280
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1136.00
