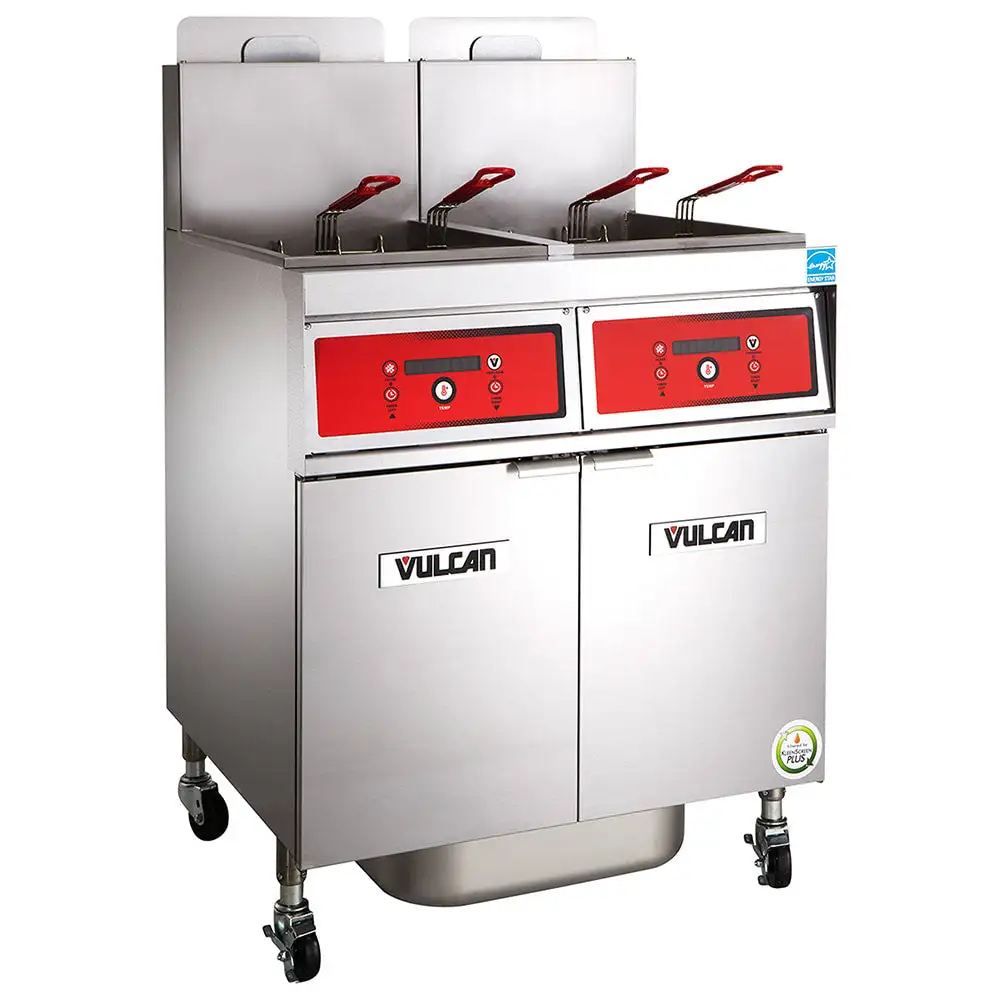

Vulcan 4VK45DF Gas Fryer - (4) 50 Lb Vats, Floor Model, Natural Gas

The Vulcan 4VK45DF natural gas fryer is designed with four stainless steel fry tanks and a stainless steel base cabinet. Each tank can hold 45 to 50 pounds of oil, and to facilitate oil removal after hours, it features a 1 1/4-inch full-port, ball-type drain valve. An included tank brush and clean-out rod further ease cleaning, and for high-volume service, it has eight fryer baskets with plastic-coated handles. So staff can access the vats, this unit creates a 36 1/4-inch working height; so it can be moved out of the way for maintenance, it's mounted on four adjustable 6-inch swivel casters. Overall, this unit measures 62 inches wide by 30 1/8 inches deep by 47 1/8 inches high.
For consistent heating and quick recovery, this fryer boasts a FivePass® heat transfer system. Its electronic, matchless ignition system is imbued with SoftStart® technology, which warms frying compounds at half the regular BTUs to minimize operating costs. The unit's "V"-shaped cold zone further maintains oil taste and color by trapping small sediments that could otherwise burn. During idle periods, it conserves energy by dropping to a 4,251 BTU hourly rate. Its high-limit shut-off system caps the maximum temperature for reduced risk of burns or fires.
Users can monitor temperature fluctuations using the Vulcan 4VK45DF freestanding fryer's digital thermostat, which displays readouts in either Celsius or Fahrenheit; temperatures can be set between 200 and 390 degrees Fahrenheit. Cook times can be monitored with the two countdown timers; to dissolve solid frying compound, it also features three melt modes. This fryer's KleenScreen PLUS® filtration system effectively catches fine particulates using a stainless steel mesh screen and push-button-activated motor and pumpa€”which circulate frying compound at 8 gallons per minute. As much as 70 pounds of waste can be collected in the stainless steel filter pan and disposed through the 6-foot, high-temperature discard hose. Before draining dirty oil, staff must engage the drain valve interlock switch to disconnect the gas channel. An automatic boil-out mode streamlines boil-out solution removal during cleaning.

Product Details





Part of the PowerFry5® series
45-50-lb. capacity
Stainless steel fry tank and base cabinet
4 sets of twin fry baskets with plastic-coated handles (8 baskets in total)
36 1/4-in. working height
Temperature range: 200-390 degrees F
Rapid heat recovery
Electronic matchless ignition
SoftStart ignition extends oil life and conserves energy
Idle temperature setting saves energy by outputting 4,251 BTU
Hi-limit shut off
FivePass heat transfer system yields 66 percent cooking and 78 percent thermal efficiency
"V"-shaped cold zone traps loose particulates
1 1/4-in. full-port, ball-type drain valve
4 adjustable 6-in. casters (2 locking and 2 non-locking)
Tank brush and clean-out rod included
(4) 70,000 BTU per hour

Digital Control System





Digital thermostat provides readouts in Celsius or Fahrenheit
2 countdown timers
3 melt modes for solid shortening
Auto boil-out mode streamlines cleaning
Users can cook with compensating time or actual time

Filtration System





Stainless steel filter pan boasts 70-lb. capacity
KleenScreen PLUS filtration system preserves oil quality
Stainless steel mesh screen filters from 2 sides
Drain valve interlock switch disconnects gas channel during draining
1/3-HP motor and pump circulates frying compound at 8 GPM
Push button engages motor and pump with 1 touch
6-ft. high-temperature discard hose streamlines oil removal

Dimensions and Utilities





62 in. W x 30 1/8 in. D x 47 1/8 in. H
115-120 V/ 60 Hz/ 1 ph with NEMA 5-15P plug
7 A, 1/3 HP motor
Powered by natural gas
1 1/4-in. rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
200

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
200

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
62

Weight
871.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 200
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 200
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 62
Weight: 871.00
