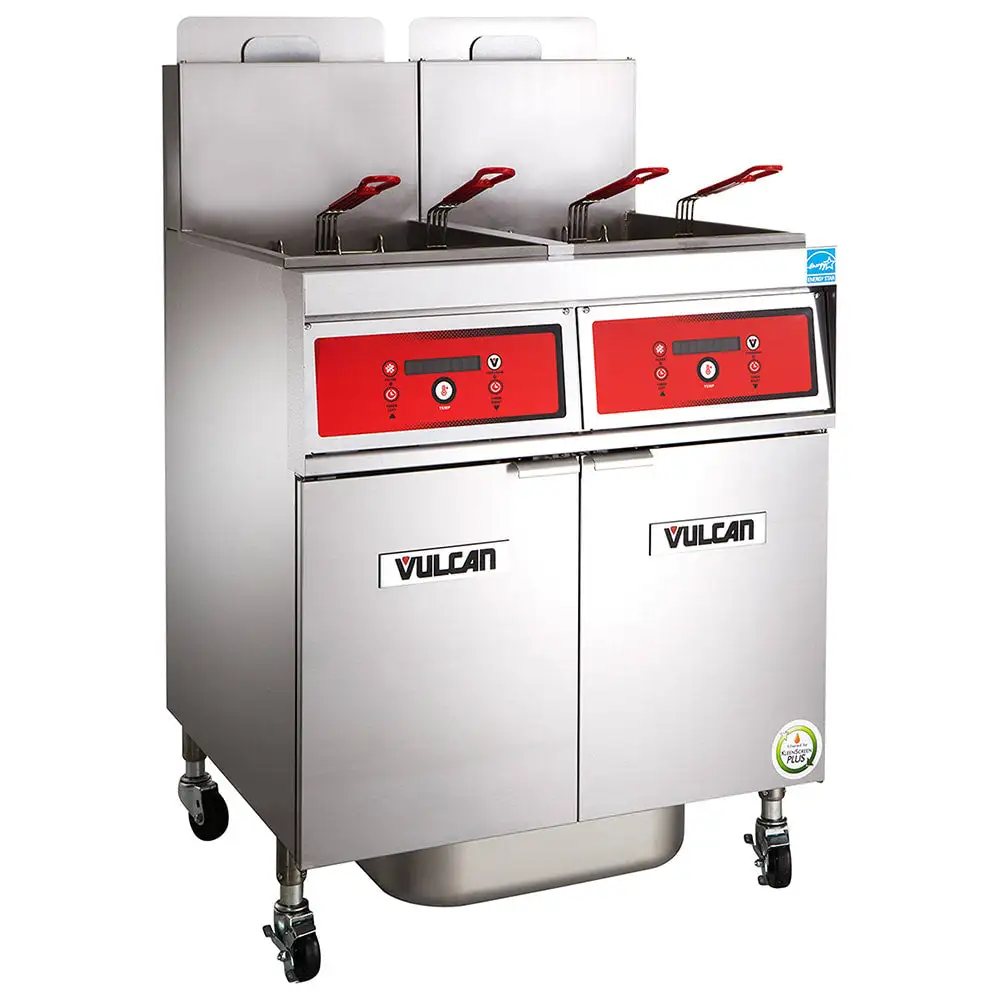

Vulcan 4VK65DF Gas Fryer - (4) 70 Lb Vats, Floor Model, Natural Gas

The Vulcan 4VK65DF floor model gas fryer is a four-battery unit powered by natural gas and featuring an integrated KleenScreen Plus® filtration system. Each vat can hold 65 to 70 pounds of oil, and to extend oil life, it filtrates the frying compound at 8 gallons per minute. Its stainless steel mesh filter screens from two sides to cover 270 and 350 square inches, and once the oil is emptied through its 1 1/4-inch drain valve, the 18-gauge filter pan can hold 110 pounds. To clean the exterior, this unit includes a tank brush and clean-out rod.
Overall, this unit measures 84 inches wide by 30 1/8 inches deep by 47 1/4 inches high and is mounted on 6-inch casters, easing maneuvering on smooth or irregular floors alike. Its 19 1/2-inch-wide by 14-inch-deep fry tank is made of stainless steel for a durable and corrosion-resistant design. It comes with metal-constructed fry baskets (2 per frypot) that feature plastic-coated handles to reduce heat transfer to palms.
To cook high volumes of breaded meats or vegetables, the Vulcan 4VK65DF fryer unit upholds temperatures between 200 and 390 degrees Fahrenheit; for precise temperature control, it's operated with solid-state digital controls. If it exceeds its temperature limit, it has a hi-limit shutoff to reduce fire risks. It produces 320,000 BTUs total, but to conserve energy, its SoftStart® ignition heats the system at just half that rate. Meanwhile, its FivePass® heat transfer yields 78 percent thermal efficiency and 68 percent cooking efficiency.

Product Details





Part of the PowerFry5® series
4 vats with 65-70-lb. capacity
8 twin baskets with plastic handles (2 per frypot)
Stainless steel cabinet and fry tank
Adjustable casters (2 swivel locking & 2 non-locking)
1 1/4-in. full port ball type drain valve
Includes tank brush and clean-out rod
SoftStart ignition system quickly heats oil at half the normal BTUs
FivePass heat transfer system evenly heats oil
(4) 80,000 BTUs

Solid-state Digital Controls





Temperature control: 200-390 degrees F
Can cook with actual time or compensating time
Three fat melt modes
Hi-limit shutoff

KleenScreen PLUS Filtration System





Motor and pump circulate oil at 8 gal. per minute
18-ga. stainless steel filter pan
Two-sided stainless steel filter mesh screen
Boil-out bypass function
Interlock switch shuts off burners during filtration

Dimensions & Utilities





Tank size: (4) 19 1/2 in. W x 14 in. D
Baskets: (8) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 84 in. W x 30 1/8 in. D x 47 1/4 in. H
120 V/60 Hz/1 ph, with NEMA 5-15 P
7 A, 1/3-HP motor
1 1/4 NPT common rear gas connection
Powered by natural gas

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
320000

Capacity (lbs)
280

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
280

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1136.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 320000
Capacity (lbs): 280
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 280
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1136.00
