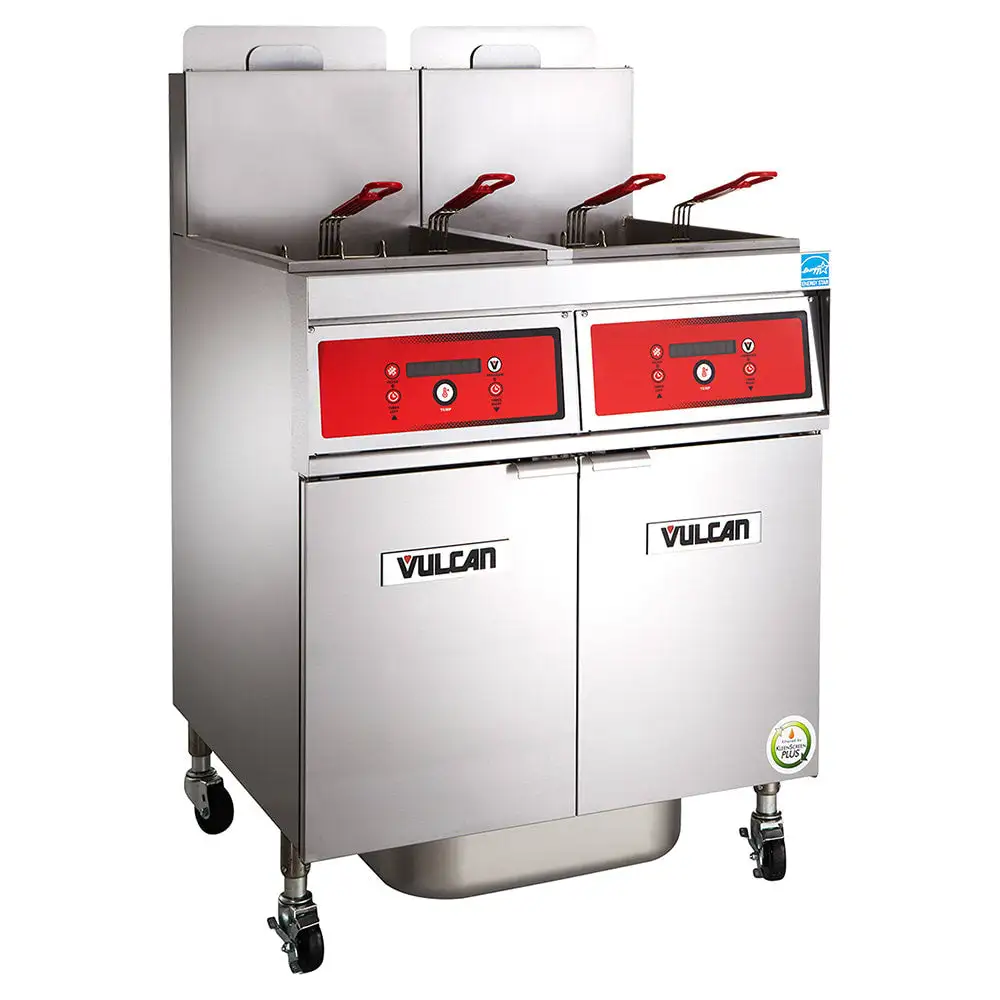

Vulcan 4VK85AF Gas Fryer - (4) 90 Lb Vats, Floor Model, Liquid Propane

For frying breaded meats and vegetables or preparing fries and mozzarella sticks, the Vulcan 4VK85AF gas fryer maintains temperatures between 200 and 390 degrees Fahrenheit. To conveniently adjust temperatures, it integrates solid-state analog controls, which feature user-selectable fat melt modes. This four-battery unit can hold 85 to 90 pounds of oil per vat, and to effectively heat the oil while conserving energy, its SoftStart® ignition system quickly heats the unit at half the normal BTUs. To evenly distribute the heat and reduce scalding or disintegration, its FivePass® heat transfer yields 65 percent cooking efficiency and 78 percent thermal efficiency; should it exceed temperature conditions, it has a hi-limit shutoff safety precaution.
To maintain quality oil and extends its life, the Vulcan 4VK85AF gas fryer features a KleenScreen Plus® filtration system. Its oil return line connection facilitates frying compound at 8 gallons per minute, and to simplify operation, it's activated with the push of a button. Filtration occurs from two sides to cover 270 to 350 square inches, and after business hours, its 1 1/4-inch drain valve can be used to circulate oil into the 18-gauge stainless steel filter pan. For thorough sanitation, its patented Boil Out Bypass® system removes solutions with minimal contact to the drain manifold, filter pan, and motor pump.

Overall, this fryer unit measures 84 inches wide by 34 3/8 inches deep by 47 1/4 inches high. Its cabinets and tanks are constructed of stainless steel to reduce damage to its structure. Each frypot measures 19 1/2 inches wide by 18 1/4 inches deep to hold twin metal baskets; because these baskets feature plastic-coated handles, they reduce scalding hazards. For smooth transportation, it sits on four 6-inch casters.

Product Details

Part of the PowerFry5® series

(4) 85-90-lb.-capacity vats
2 baskets with plastic-coated handles per frypot (8 total)
Stainless steel cabinet and fry tank
Adjustable casters (2 swivel locking & 2 non-locking)
1 1/4-in. full port ball type drain valve
Includes tank brush and clean-out rod
SoftStart ignition system quickly heats oil at 45,000 BTUs per frypot
FivePass heat transfer system
(4) 90,000 BTUs

Solid-state Analog Controls

Temperature range: 200-390 degrees F
User-selectable fat melt modes
Hi-limit shutoff

KleenScreen PLUS Filtration System

Motor and pump circulate oil at 8 gal. per minute
18-ga. stainless steel filter pan
Stainless steel filter mesh screen filters from two sides
Boil-out bypass
Interlock switch

Dimensions & Utilities

Tank size: (4) 19 1/2 in. W x 18 1/4 in. D
Baskets: (8) 8 3/4 in. W x 16 3/4 in. D x 6 in. H
Overall: 84 in. W x 34 3/8 in. D x 47 1/4 in. H
120 V/60 Hz/1 ph, with NEMA 5-15 P
7 A, 1/3-HP motor
1 1/4 NPT common rear gas connection
LP gas powered

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
360

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
360

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1236.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 360
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 360
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1236.00
