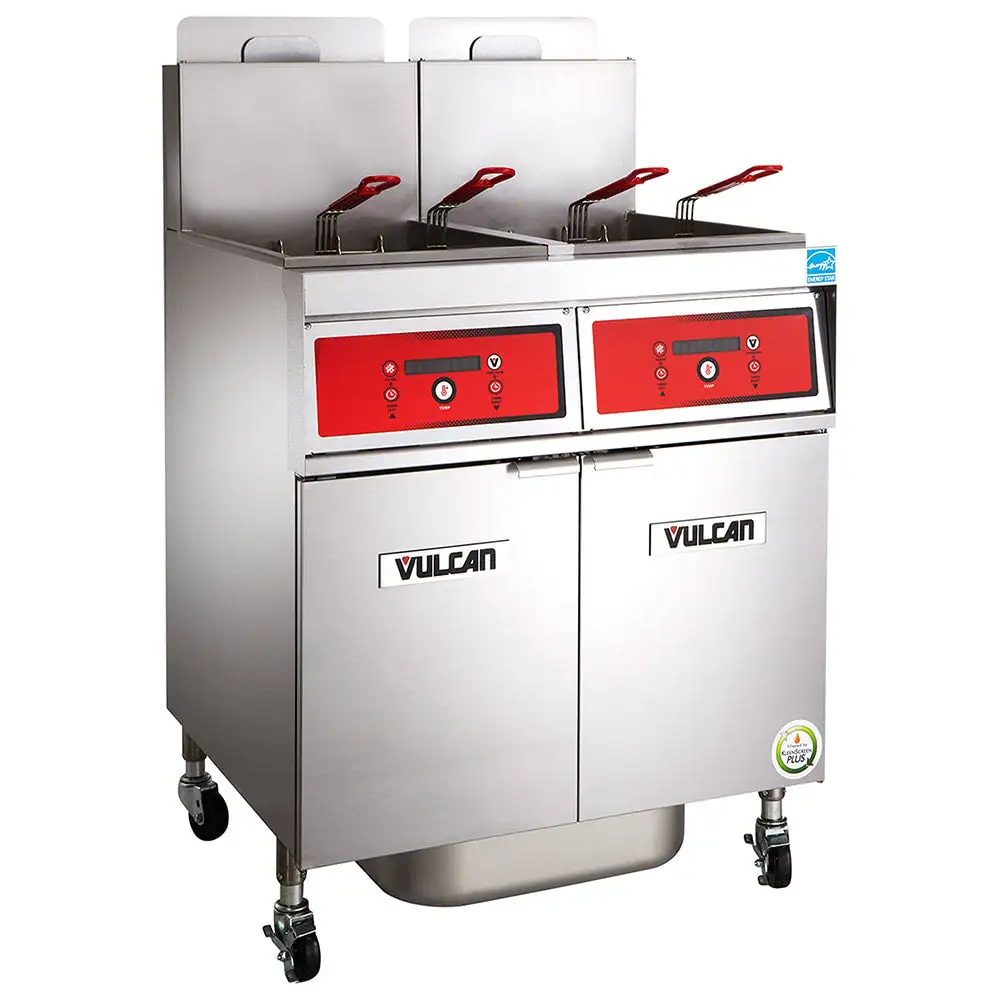

Vulcan 4VK65CF Gas Fryer - (4) 70 Lb Vats, Floor Model, Natural Gas

Part of the PowerFry5® series, the 4VK65CF gas fryer is a four-battery unit powered by natural gas and featuring an integrated KleenScreen Plus® filtration system. This high-efficiency fryer has four fry tanks that hold 65 to 70 pounds of oila€”to maintain oil quality throughout business hours, its filtration system pumps 8 gallons of oil per minute. For ample coverage and screening, its stainless steel mesh screen filters an area between 270 and 350 square inches. To streamline cleaning after back-to-back frying, it has a 1 1/4-inch drain valve, tank brush, and clean-out rod.
The Vulcan 4VK65CF gas fryer maintains temperatures between 200 and 390 degrees Fahrenheit, and to adjust these temperatures, it has programmable computer controls. For a quick startup that also conserves energy, its SoftStart® ignition quickly heats the frypot while compensating with a lower BTU rate. Once it reaches set conditions, idle temperatures are maintained with just 4,802 BTU an hour. Its FivePass® heat transference system yields 68 percent cooking and 78 thermal efficiency to produce high volumes of breaded goods while reducing operating costs. To minimize fires should this unit exceed its temperature range, it has a hi-limit shut off.

Product Details





Part of the PowerFry5 series
(4) 65-70-lb.-capacity vats
Twin baskets with plastic handles in each frypot (8 total)
Stainless steel cabinet and fry tank
Adjustable casters (2 swivel locking & 2 non-locking)
1 1/4-in. full port ball type drain valve
Includes tank brush and clean-out rod
47 1/8-in. working height
SoftStart ignition system
FivePass heat transfer system
(4) 80,000 BTUs

Programmable Computer Controls





Temperature control: 200-390 degrees F
10 menu timers
Offline USB programming
Digital display in Fahrenheit or Celsius
Hi-limit shutoff

KleenScreen PLUS Filtration System





Motor and pump circulate compound at 8 GPM
18-ga. stainless steel filter pan
Stainless steel filter mesh screen
Boil-out bypass function
Interlock switch shuts off burners when oil draining starts

Dimensions & Utilities





Tank size: (4) 19 1/2 in. W x 14 in. D
Baskets: (8) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 84 in. W x 30 1/8 in. D x 47 1/8 in. H
120 V/60 Hz/1 ph, with NEMA 5-15 P
7 A, 1/3 HP motor
Powered by natural gas
1 1/4 NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
320000

Capacity (lbs)
280

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
280

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1136.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 320000
Capacity (lbs): 280
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 280
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1136.00
