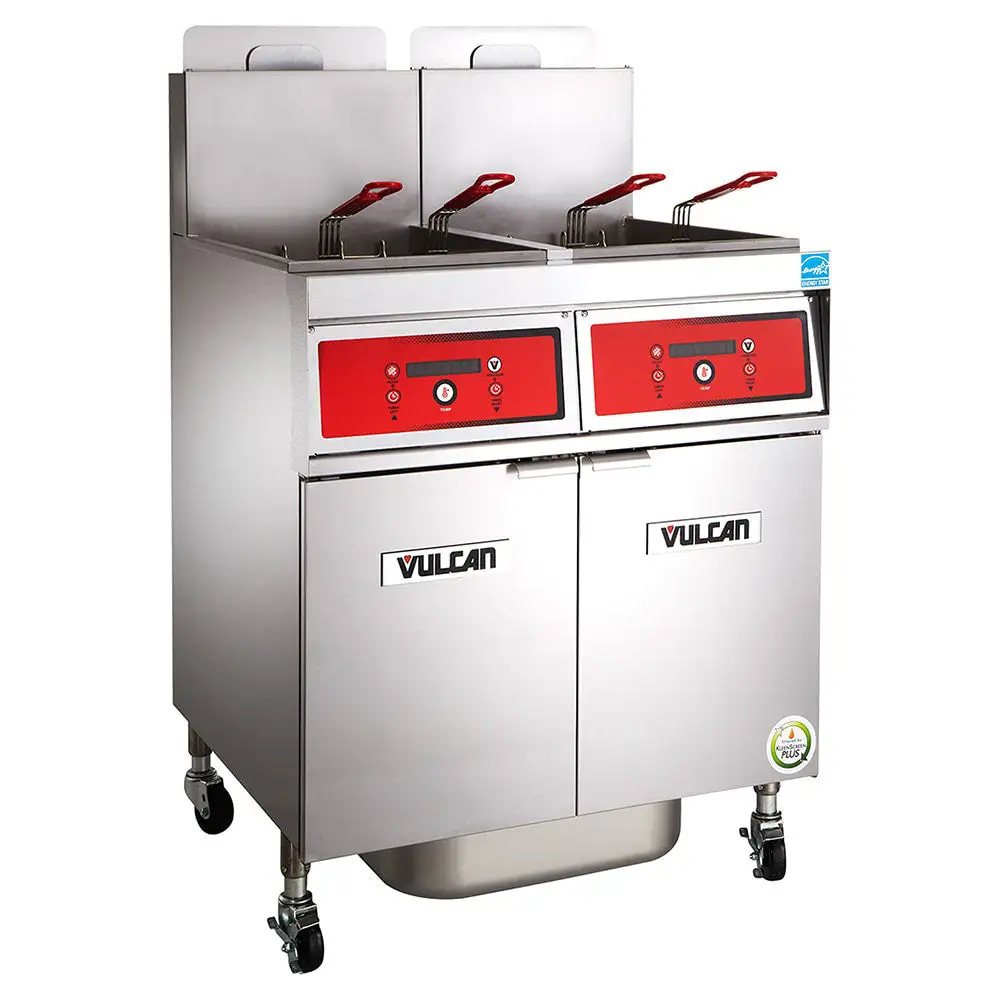

Vulcan 4VK85CF Gas Fryer - (4) 90 Lb Vats, Floor Model, Natural Gas

For high-volume frying of breaded chicken, fish, shrimp, pork loin, and other varieties, the Vulcan 4VK85CF gas fryer features four vats and is equipped with KleenScreen PLUS® filtration. This filtration system features a 1/3-horsepower motor and pump that circulate frying compound at 8 gallons per minute. To cover a wide area, its two-sided stainless steel mesh filter screen covers 270 to 350 square inches, and when the oil needs exchanged, its 1 1/4-inch drain valve can empty used oil into the 18-gauge stainless steel filter pan. This pan can hold 110 pounds of oil and features large lift handles to ease removal for cleaning. For precise sanitation, employees can use the included tank brush and clean-out rod.
This fryer maintains temperatures between 200 and 390 degrees Fahrenheit, which can be adjusted with the programmable computer controls. A total of ten menu timers can be programmed with an accurate digital display of the product names and their corresponding cook times. For quick heating with reduced energy usage, its SoftStart® ignition system quickly heats the oil while outputting 35,000 BTU an hour per frypot. To optimize production, its FivePass® heat transfer system yields 65 percent cooking and 78 percent thermal efficiency; as a safety precaution, if this unit exceeds its temperature limit, it boasts a hi-limit shutoff.
Overall, the Vulcan 4VK85CF gas fryer measures 84 inches wide by 34 3/8 deep by 47 1/4 inches high and is mounted on four 6-inch casters to encourage mobility. Its cabinet and fry tank are constructed of stainless steel to reduce corrosion and irregularities to the structure. For convenience, each tank includes two 8 3/4-inch-wide by 16 3/4-inch-deep metal fry baskets that feature plastic-coated handles to reduce heat transfer to hands.

Product Details





Part of the PowerFry5® series
(4) 85-90-lb.-capacity frypots
Twin baskets with plastic-coated handles (8 total)
Stainless steel cabinet and fry tank
Adjustable casters (2 swivel locking & 2 non-locking)
1 1/4-in. full port ball type drain valve
Includes tank brush and clean-out rod
SoftStart ignition system
FivePass heat transfer system
(4) 90,000 BTUs

Programmable Computer Controls





Temperature range: 200-390 degrees F
10 menu timers
Offers offline USB programming (software included)
Digital display can be set to Fahrenheit or Celsius
Hi-limit shutoff

KleenScreen PLUS Filtration System





Motor and pump circulate compound at 8 gal. per minute
18-ga. stainless steel filter pan
Two-sided stainless steel mesh filter screen
Boil-out bypass function
1 1/4-in. port ball type drain valve
Interlock switch shuts off burners during filtering process

Dimensions & Utilities





Tank size: (4) 19 1/2 in. W x 18 1/4 in. D
Baskets: (8) 8 3/4 in. W x 16 3/4 in. D x 6 in. H
Overall: 84 in. W x 34 3/8 in. D x 47 1/4 in. H
120 V/60 Hz/1 ph, with NEMA 5-15 P
7 A, 1/3-HP motor
1 1/4 NPT common rear gas connection
Natural gas powered

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
360

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
360

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1236.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 360
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 360
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1236.00
