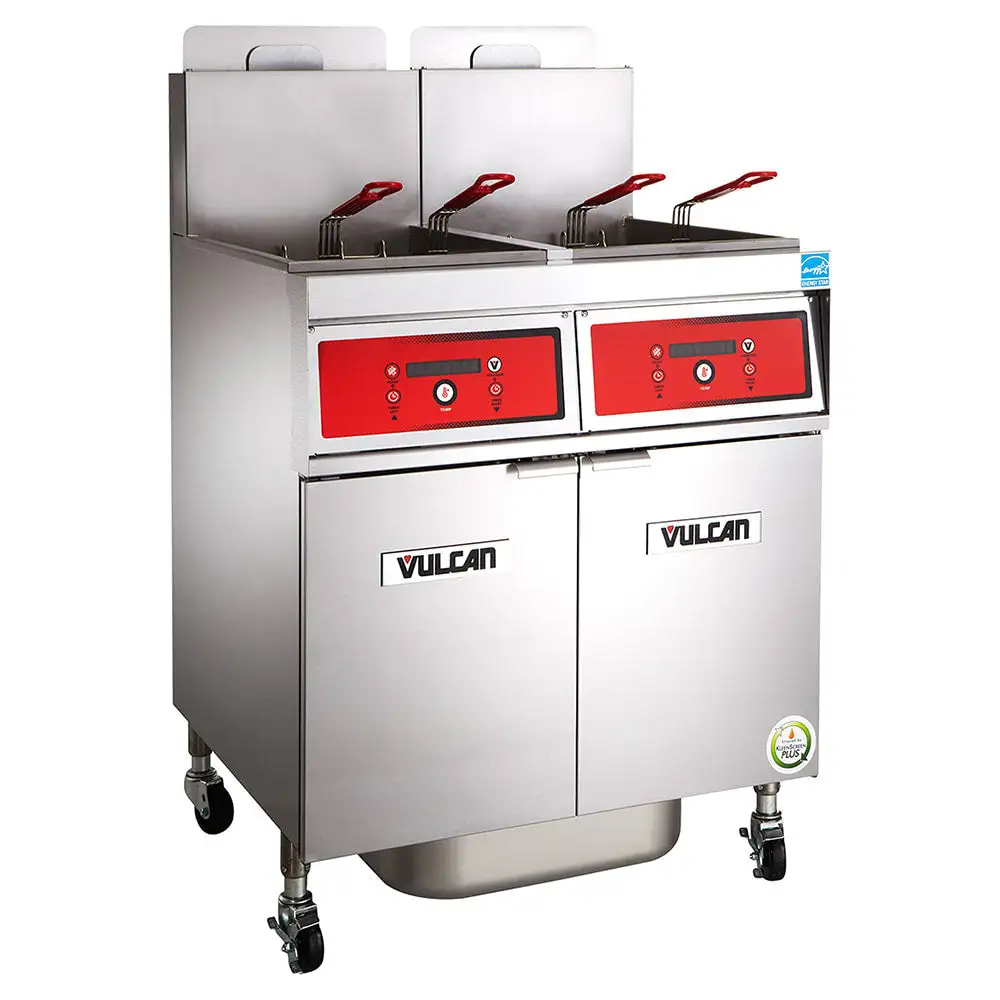

Vulcan 4VK85DF Gas Fryer - (4) 90 Lb Vats, Floor Model, Liquid Propane

The Vulcan 4VK85DF gas fryer is a four-battery frying unit with four frypots that accommodate 85 to 90 pounds of oil each. Each tank measures 19 1/2 inches wide by 18 1/4 inches deep and can hold two 8 3/4-inch-wide by 16 3/4-inch-deep by 6-inch-high metal fry baskets. Because each basket features plastic-coated handles, they ease the retrieval or insertion of breaded goods while reducing scalding hazards. The cabinet and tank are constructed of stainless steel that enables this unit to withstand aggressive applications to extend its service life; overall, it measures 84 inches wide by 34 3/8 inches deep by 47 1/4 high. Because it's mounted on 6-inch casters, it can be transported smoothly.
Powered by liquid propane, the Vulcan 4VK85DF gas fryer can be set to temperatures between 200 and 390 degrees Fahrenheit. For manual, yet convenient adjustments, it's operated with solid-state digital controls that feature three user-selectable melt cycles. It outputs 360,000 BTU per hour (90,000 BTUs per vat), but to reduce operation costs, its SoftStart® ignition system quickly heats the oil at a 35,000 BTU hourly rate per frypot. To optimize production, its FivePass® heat transference yields 65 percent cooking and 78 percent thermal efficiency. For additional upkeep of product quality, its incorporated KleenScreen Plus® filtration system circulates frying compound at 8 gallons per minute with its 1/3-horsepower motor and pump. A stainless steel mesh screen sifts oil from two sides to purify 270 square inches, and when the oil needs to be removed, users can open the 1 1/4-inch drain valve to empty contents into the 18-gauge filter pan below.

Product Details





Part of the PowerFry5® series
85-90-lb. capacity per vat
4 vats
Two baskets with plastic-coated handles per frypot (8 total)
Stainless steel cabinet and fry tank
Adjustable casters (2 swivel locking & 2 non-locking)
1 1/4-in. full port ball type drain valve
Includes tank brush and clean-out rod
SoftStart ignition system
FivePass heat transfer system
(4) 90,000 BTUs

Solid-state Digital Controls





Temperature range: 200-390 degrees F
Cooks with actual time or compensating time
Three fat-melt modes
Hi-limit shutoff

KleenScreen PLUS Filtration System Details





Motor and pump circulate compound at 8 gal. per minute
18-ga. stainless steel filter pan
Stainless steel mesh screen filters from 2 sides
Boil-out bypass function
1 1/4-in. port ball type drain valve
Interlock switch

Dimensions & Utilities





Tank size: (4) 19 1/2 in. W x 18 1/4 in. D
Baskets: (8) 8 3/4 in. W x 16 3/4 in. D x 6 in. H
Overall: 84 in. W x 34 3/8 in. D x 47 1/4 in. H
120 V/60 Hz/1 ph, with NEMA 5-15 P
7 A, 1/3-HP motor
1 1/4 NPT common rear gas connection
LP gas powered

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
360

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
4

Oil Capacity (lb)
360

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
84

Weight
1236.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 360
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 4
Oil Capacity (lb): 360
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 84
Weight: 1236.00
