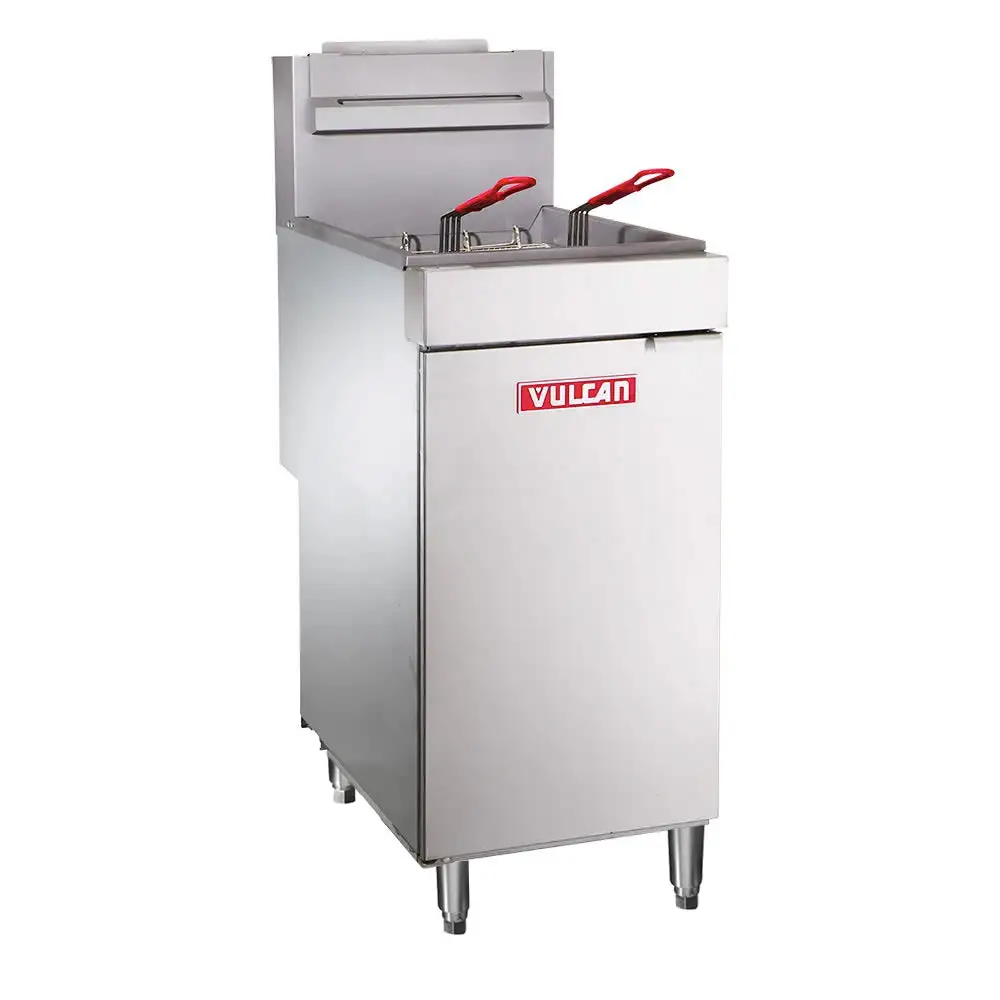

Vulcan LG500 Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

Heated by LP gas, the Vulcan LG500 floor-model fryer has a temperature range from 200 to 400 degrees Fahrenheit, and if temperatures exceed the safe level, a high-limit shut-off turns the gas flow off. A flue deflector is built in, and the millivolt system does not require an electrical hookup. In the tank, there is a large cold zone where food particles collect instead of sitting in the cooking area, where the oil would take on a burnt flavor and have a shorter life. When ready to clean out the sediment, employees can use the 1 1/4-inch full-port, ball-type drain valve.
For durability in commercial settings, this Vulcan LG500 gas fryer has a galvanized, corrosion-resistant back and sides with stainless steel components. A liner on the reinforced door increases its stability and strength. Nickel-plated legs are adjustable for uneven floors, and to help prevent injury, the twin fry baskets come with plastic-coated handles. The stainless steel basket hanger is removable for cleaning.

Product Details





65-70-lb. oil capacity
Stainless steel frypot is strong and straightforward to clean
Nickel-plated tube rack
Large cool zone holds settled debris out of the extremely hot oil
Twin fry baskets
Stainless steel basket hanger can be removed for cleaning
Temperature range: 200-400 degrees F
Millivolt thermostat control without electric hookup requirements
Built-in flue deflector sends heat and fumes to the ventilation hood
High-limit shut-off protector for the gas combination valve and pilot
Front, top, and door are made of durable stainless steel
Corrosion-resistant galvanized sides and back
1 1/4-in. drain valve
Freestanding, floor-model design
150,000 BTU
Specify installation elevation if over 3,500 ft. by calling customer care at (855) 530-5570

Dimensions & Utilities





Frying area: 19.5 in. x 14 in.
Overall: 21 in. W x 29 3/4 in. D x 47 5/8 in. H
Powered by LP gas
1/2-in. and 3/4-in. rear gas connections
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
150000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
LG Series

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 5-year Fry Tank

Width (in)
21

Weight
270.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 150000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: LG Series
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 5-year Fry Tank
Width (in): 21
Weight: 270.00
