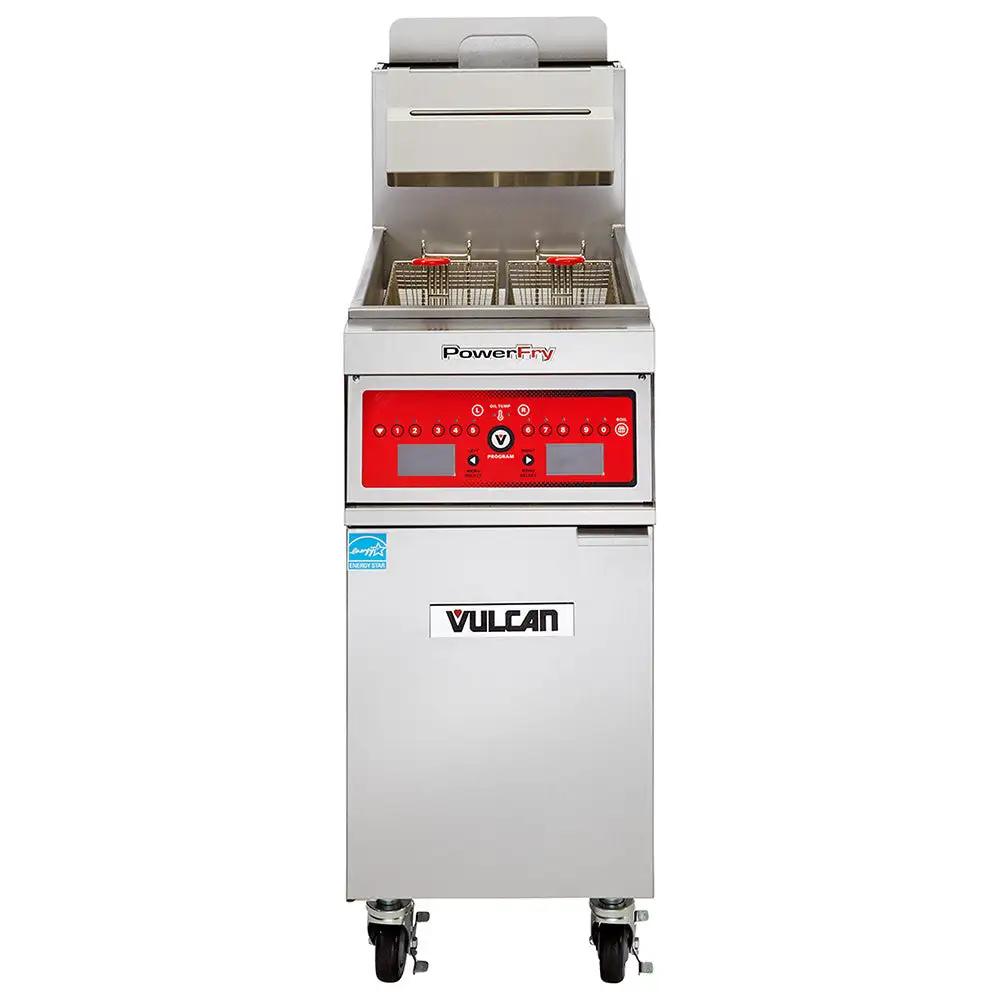

Vulcan VFRY18 Gas Fryer - (1) 50 Lb Vat, Floor Model, Liquid Propane

For small kitchens with few frying requirements, the Vulcan VFRY18 V-Series fryer measures 18 inches wide by 40 inches deep by 48 3/8 inches high and has one fry tank with a 50-pound oil capacity. Its front, front top ledge, sides, tank, base, and stub back are constructed of stainless steel for durability and rust resistance, and to elevate its base from the floor, it's mounted on 6-inch legs. So users can access the vat comfortably, it has a 36-inch working height. Users can transport product to and from the frying compound using the twin set of fry baskets, which have plastic-coated handles to ease carrying and reduce burn risk.
To provide even heating while conserving energy, the Vulcan VFRY18 LP gas fryer operates with a ThreePass® heat transfer system. Its electronic, SoftStart® ignition heats oil gradually at startup while reducing BTU usage. Operators can adjust heat output with the solid-state analog control knob6 located inside the cabinet, and to prevent overheating, this system has a hi-limit shutoff feature that disables the unit when temperatures reach 465 degrees Fahrenheit. For efficient cleaning after service, the unit is equipped with a Boil Out Bypass® setting and a 1 1/4-inch port ball-type drain valve. Before beginning the draining process, users should engage the drain valve interlock switch to disconnect the gas channel from the burner.

Product Details





Part of the V Series
45-50-lb. capacity
Single fry tank
Stainless steel front, front top ledge, sides, fry tank, base, and stub back
Twin fry baskets have plastic-coated handles to minimize burn risk
36-in. working height
Solid-state analog control knob accessed through cabinet door
Electronic ignition
SoftStart technology reduces BTU output for energy conservation
Hi-limit shutoff system
ThreePass heat transfer system yields 60.9 percent cooking and 72 percent thermal efficiency
Drain valve interlock switch
1 1/4-in. port ball-type drain valve
Boil Out Bypass streamlines boil-out solution removal
6-in. legs
70,000 BTU per hour

Dimensions and Utilities





18 in. W x 40 in. D x 48 3/8 in. H
120V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
3/4-in. rear gas connection
1 1/4-in.-dia. front gas manifold

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Frozen

Frypot Style
Open Pot

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
V Series

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
18

Weight
215.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Frozen
Frypot Style: Open Pot
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: V Series
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 18
Weight: 215.00
