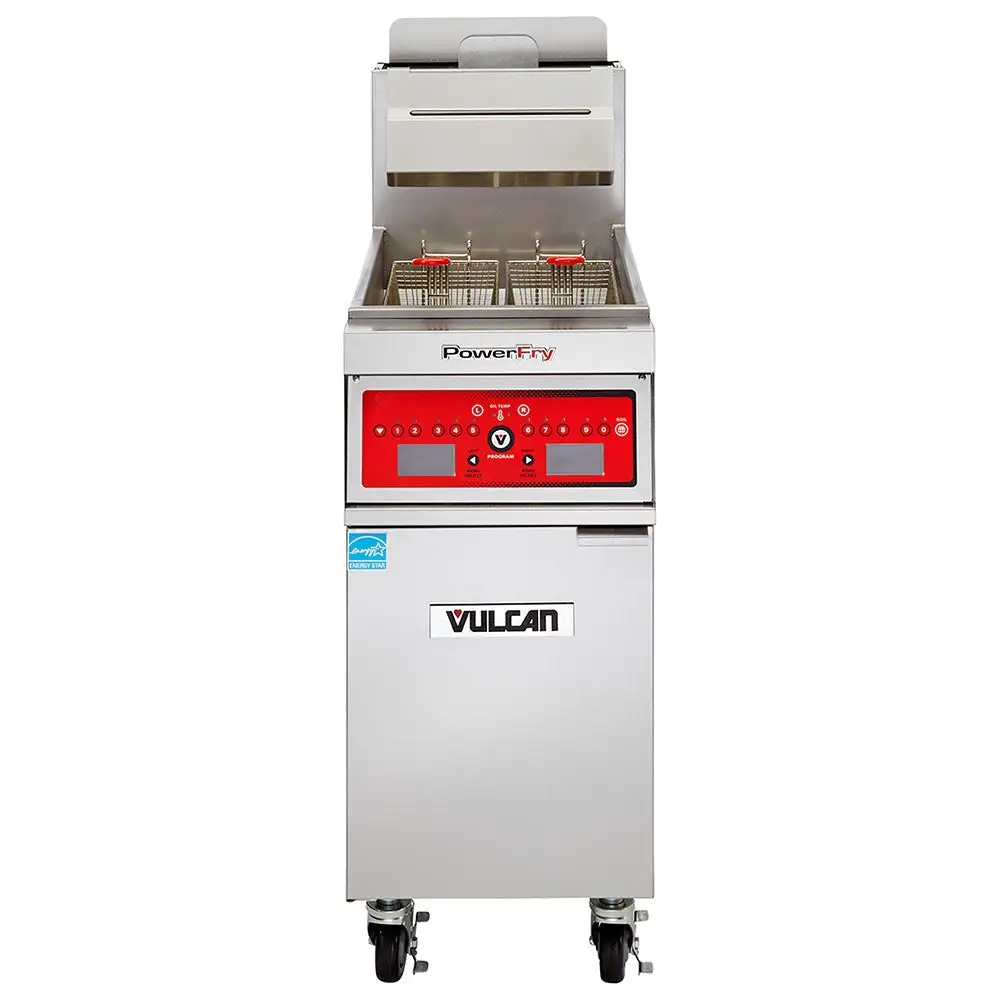

Vulcan VFRY18 Gas Fryer - (1) 50 Lb Vat, Floor Model, Natural Gas

The Vulcan VFRY18 natural gas fryer operates with a ThreePass® heat transfer system to heat oil evenly while conserving energy. It features an electronic ignition system built with SoftStart® technology to warm oil slowly at startup while lowering BTU output. Temperatures can be adjusted through the solid state analog controls located inside the cabinet door, and to reduce the risk of the unit overheating, this system has a hi-limit shutoff feature. After service, users can remove oil through the 1 1/4-inch port ball-type drain valve and activate the Boil Out Bypass® mode. To disengage the gas channel before draining, this unit has a drain valve interlock switch.
Ideal for low-volume frying tasks, the Vulcan VFRY18 V-Series fryer features one fry vat and measures 18 inches wide by 40 inches deep by 48 3/8 inches high. Its tank can hold as much as 50 pounds of oil, and it establishes a comfortable 36-inch working height. For long-term durability and rust resistance, the front, front top ledge, sides, tank, base, and stub back are constructed of stainless steel. To ease the transportation of breaded goods to and from the frying compound, this unit comes with two fry baskets, which have plastic-coated handles to reduce heat transfer during carrying. To elevate the base off of the floor, it's mounted on 6-inch legs.

Product Details





Featured in the V Series
45-50-lb. capacity
1 fry tank
Stainless steel front, front top ledge, sides, fry tank, base, and stub back
2 fry baskets
Plastic-coated basket handles reduce burn risk
36-in. working height
Solid-state analog control knob accessed through cabinet door
Electronic ignition
SoftStart system conserves energy at startup
Hi-limit shutoff reduces risk of overheating
ThreePass heat transfer system yields 60.9 percent cooking and 72 percent thermal efficiency
Drain valve interlock switch disables gas connection for draining
1 1/4-in. port ball-type drain valve
Boil Out Bypass system eases cleaning
6-in. legs
70,000 BTU per hour

Dimensions and Utilities





18 in. W x 40 in. D x 48 3/8 in. H
120V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
3/4-in. rear gas connection
1 1/4-in.-dia. front gas manifold

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Frozen

Frypot Style
Open Pot

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
V Series

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
18

Weight
215.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Frozen
Frypot Style: Open Pot
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: V Series
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 18
Weight: 215.00
