Specifications:
126" (3,200 mm) Overall cutting length, 126" (3,200 mm) max. pusher stroke for crosscutting,3.7"
(95 mm)Maximum saw blade projection)
20 HP (15 kW) Main & 3 HP (2.2 kW) scoring motor.
Saw Carriage:
Variable saw carriage travel speed from 1 - 524 FPM (1 - 160 MPM). "DigiSet" scoring blade adjustment from the machine control.
Pusher Fence:
Electronically controlled overhead program fence with rack & pinion drive.Variable forward speed 0 - 295 FPM (0 - 90 MPM), 295 FPM (90 MPM) return speed.(7) Gripper Clamps (open up to 95 mm / 3.7"), AC Servo motor drives on both saw carriage & pusher fence.
Operator & Machine Control:
PC Front-End with "OSI" (Open Selco Interface) + Windows "WRT" (Windows Real Time) operating system.21" Flat screen monitor; standard keyboard & mouse; Ethernet PCI card, Intel microprocessor:On-board "Quick Opti" optimization (displays cutting dimensions & patterns), Data input by keyboard or possible direct downloading from office PC. Air-conditioned electrical panel: Tele-service diagnostics is possible,
Rear of Machine:

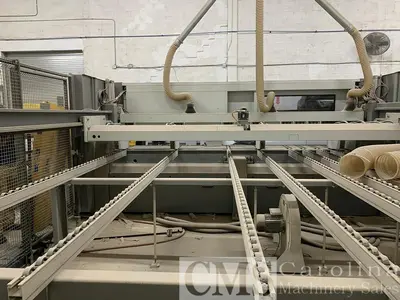

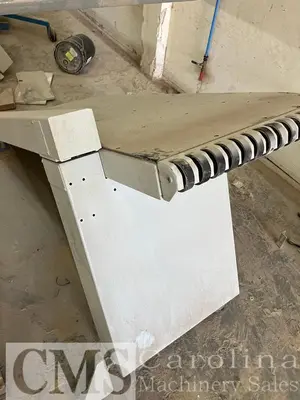

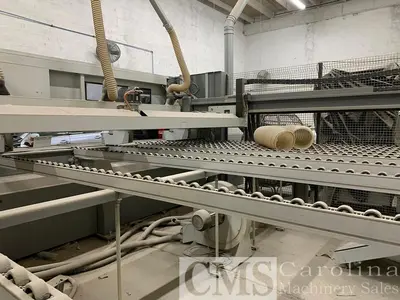

Modular roller rear machine table, (1) Automatic side/crosscut aligner mounted in the machine bed, 0' -114" (0 - 2,895 mm) stroke.Rear of machine partially enclosed for safety.
Front of Machine:

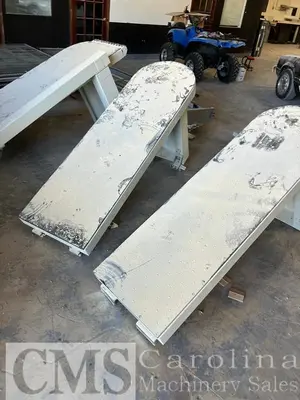

1,500 mm (59") Long crosscut fence (front-to-back),(3) Front mounted air flotation table 78 x 25.5" (1,981 x 648 mm).(1) Common blower motor for all (3) air tables.
