4th Axis, 120 ATC, 18000 RPM, CTS, Matrix Voice Advisor CNC
| size | 19.69" Pallets | 19.69" Pallets |
| X | 28.74" | 730 mm |
| Y | 28.74" | 730 mm |
| Z | 31.5" | 800.1 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 60 | 60 |
| Taper | 40 | 40 |
| Pallet-W | 19.69" | 500.13 mm |
| Pallet-L | 19.69" | 500.13 mm |
| # Axis | 4 | 4 |

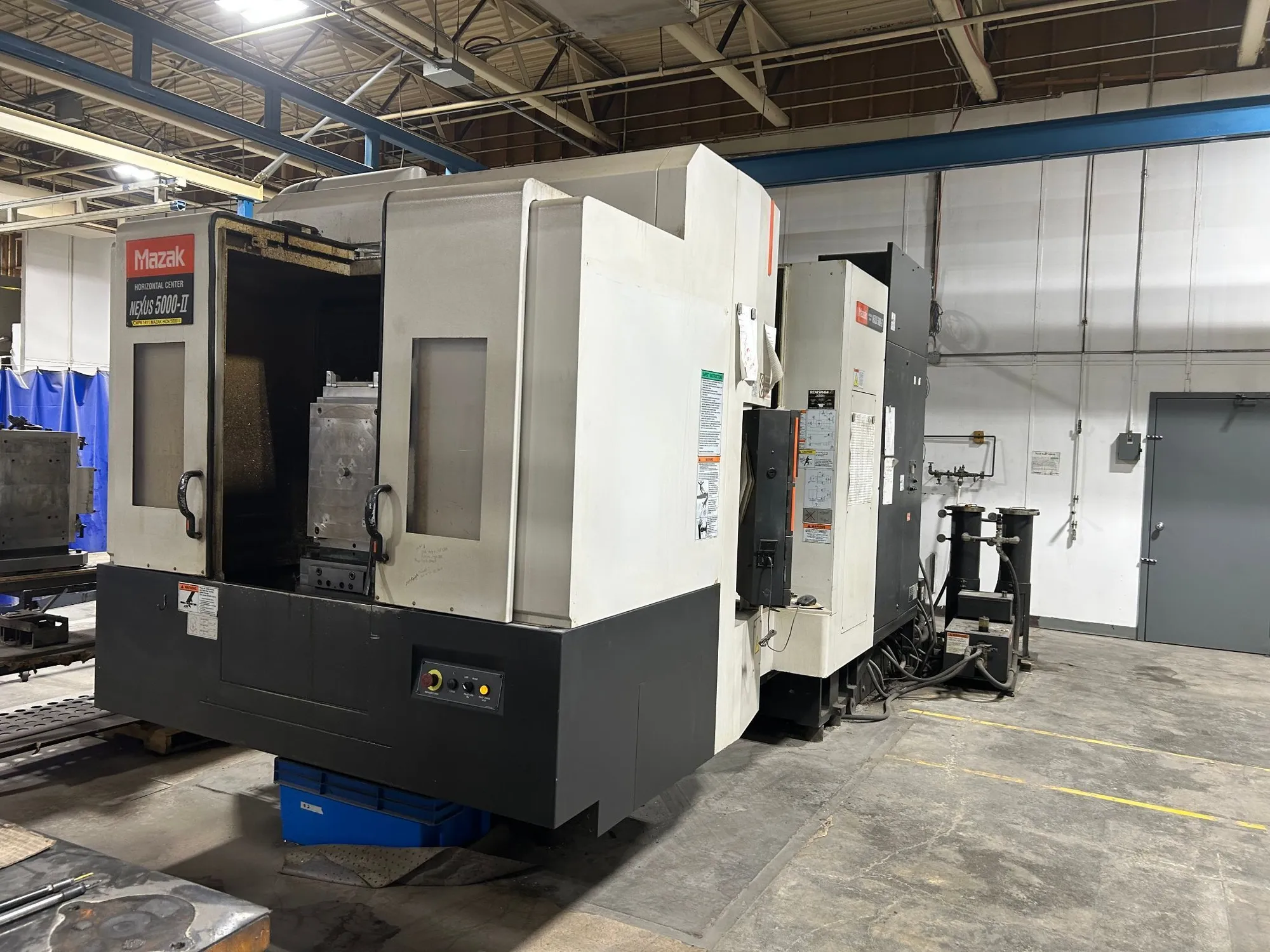

Mazak HCN5000-II Horizontal Machining Center (2007)
Pallet Length
19.7"
Pallet Width
19.7"
Pallet Load Capacity
1,543 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
28.74"
Y-Axis Travel
28.74"
Z-Axis Travel
29.13"
Rapid Traverse Rate (X/Y/Z)
2,362 ipm
Spindle Taper
CAT 40
Spindle Speed
18,000 rpm
Spindle Motor (HP)
40 hp
Tool Changer Capacity
120
Coolant Through Spindle
yes
Machine Weight
25,000 pounds
Brand new control put in by Mazak last fall (Matrix Nexus Voice Advisor CNC )
18,000 rpm
CAT40
120 ATC
probing
0.001 degree table
Recent Laser and Ballbar Data, tuned in very tight (special requirement for aluminum part it made for its entire life)
