165.2mm (6.504”) x 5.5mm (0.217”) MTM Tube Mill Line

Specifications:
Manufacturer: MTM
Diameter Range: 31 mm – 165.2 mm (1.220” – 6.504”)
Wall Thickness Range Rounds: 1.8 mm – 5.5 mm (0.071” – 0.217”)
Wall Thickness Range Squares & Rectangles: 2.8 mm – 5.5 mm (0.110” – 0.217”)
Max Mill Speed: 95 MPM (311.68 FPM)
Direction: Right To Left
Max Strip Width: 523.3 mm (20.602”)
Rafted Design, Without Second Set Of Rafts/Stands
Upgraded Gear Boxes
Tooling Included:
Rounds: 76.3 mm (3”), 89.1 mm (3.5”), 101.6 mm (4”), 114.3 mm (4.5”), 139.8 mm (5.5”), 165.2 mm (6.5”)
Squares & Rectangles:
75 mm x 75 mm (2.953” x 2.953”)
100 mm x 100 mm (3.937” x 3.937”)
100 mm x 50 mm (3.937” x 1.969”)
125 mm x 125 mm (4.921” x 4.921”)
4” x 3”, 4” x 4”, 5” x 3”, 6” x 2”, 6” x 3”, 6” x 5”, 5” x 5”
Entry Section:

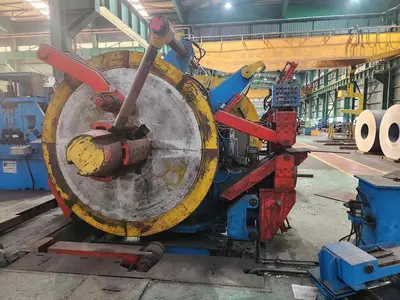

MTM Double End Uncoiler
Coil Weight Capacity: 6,000 Kg (13,227 Lbs)
Coil O.D.: 1800 mm (70.866”)
Coil I.D. Expansion: 508 mm – 610 mm (20” – 24”)
Hydraulic Expansion, Rotation, Motors
Hydraulic Disc Brakes
Feed Funnel / Coil Breaker / Strip End Flattener
Coil Snubber Hold Down Roll, Hydraulic Top & Bottom
Coil Keeper
Motor, Pump & Reservoir
Entry Preparation:
MTM Entry 7 Roll Straightener
Coil Peeler Table
Pinch Rolls
Strip Joining & Accumulation:

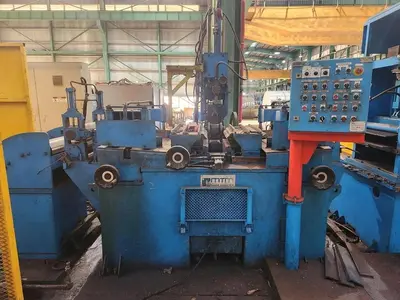

MTM Semi Automatic Strip Joiner
Rotary Shear With TIG Welder
Forward / Reverse Cut
CO2 Welder (500A)
MTM Entry Strip Guide With Vertical Plane “U” Turn
MTM Horizontal Accumulator
Strip Capacity: 500 Meters (1,640.42 Ft)
Entry Pinch Roll Motor: 45 Kw (60.3 HP)
Accumulator Motor: 26 Kw (34.8 HP)
Entry Guiding & Edge Control:
JULIUS Entry Pinch Rolls And Guides
JULIUS Entry Edge Unit
Entry Guides
(3) Position Rolling
(3) Position Scarfing

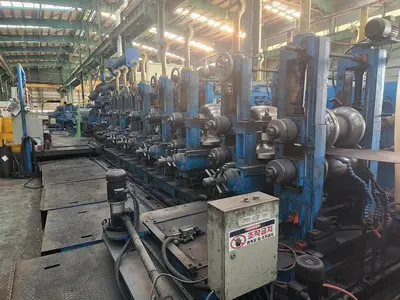

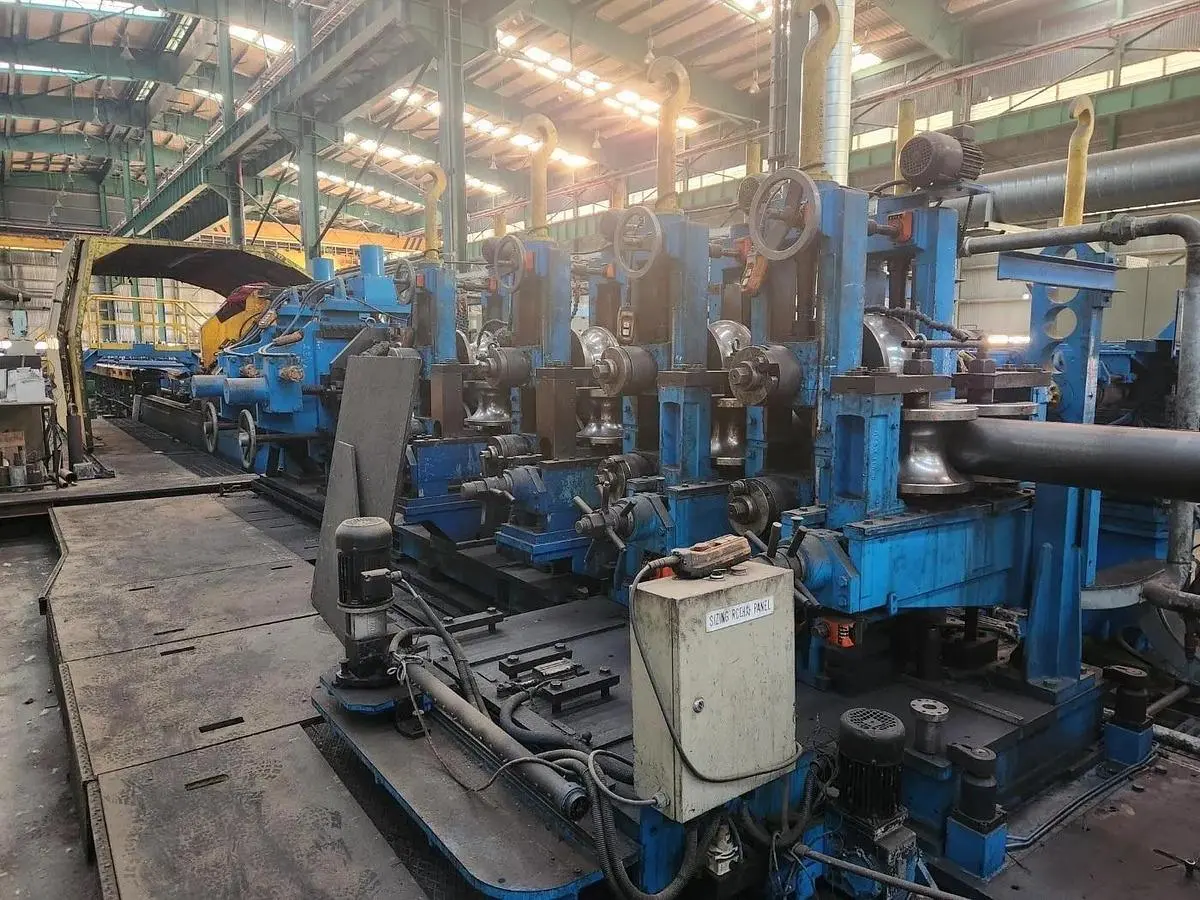

Forming Section:
(5) Forming Stands, Rafted For Automated Quick Change
Single Point Adjustment, Motorized
Shaft Diameter: 110 mm (4.331”)
148 Kw DC Drive Motor (198.5 HP), 600 – 2000 RPM
(3) Fin Pass Stands
Rafted For Automated Quick Change
Single Point Adjustment, Motorized
Shaft Diameter: 110 mm (4.331”)
Forming With (7) Side Stands
Roll Diameter: 150 mm (5.906”)
148 Kw DC Drive Motor (198.5 HP), 600 – 2000 RPM

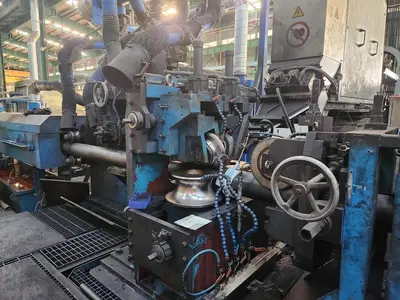

Welding Section:
SMS ELTHERM Solid State High Frequency Welder (2008)
Nominal Power: 410 Kw (549.8 HP)
Frequency Range: 100 – 400 KHz
Entry Seam Guide
(2) Roll Weld Box / (2) Seam Guide Rolls
I.D. Scarfing
O.D. Double Head Scarfing Station
Cooling Section:
Cooling Length: 6 Meters (19.685 Ft)
Rapid Water Cooling

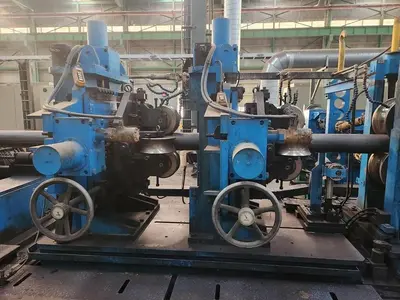

Sizing Section:
(4) Vertical Stands
Rafted For Automated Quick Change
Single Point Adjustment, Motorized
Shaft Diameter: 110 mm (4.331”)
148 Kw Drive Motor (198.5 HP), 600 – 2000 RPM
(4) Side Stands
Roll Diameter: 150 mm (5.906”)

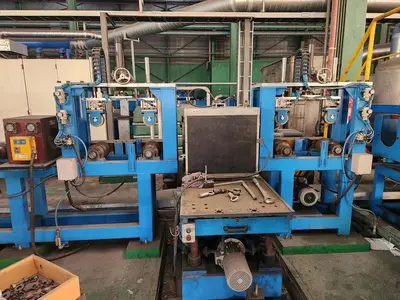

Turksheads & Straightening:
MTM Turksheads (2)
Vertical & Horizontal Hydraulic Motor Adjustment
Delisting And Straightening
Roll Diameter: 120 mm (4.724”)
Cutoff Section:
MTM Flying Cutoff Saw
Top Driven Saw Blade
75 Kw Motor (100.6 HP), 400 Volt, 1100 – 1800 RPM
Hydraulic 75 Kw DC Servo Motor Carriage Drive

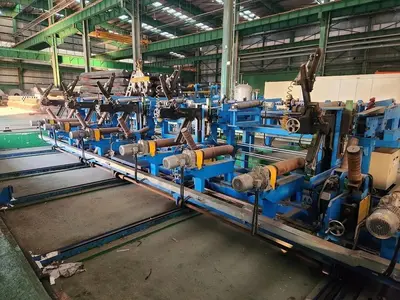

Caterpillar Pull Out

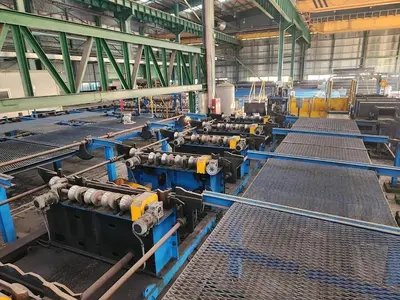

Runout Conveyor
Operator & Upgrades:
Operator Flat Screen Panels
New January 2022:
KTM Double Head End Facer
KTM Vertical Cross Roll Straightener
KTM Off Line Eddy Current Tester
Marktec Marking Machine
KTM Packaging Line With Auto Banding
Upgraded Electrical Drives And Controls
