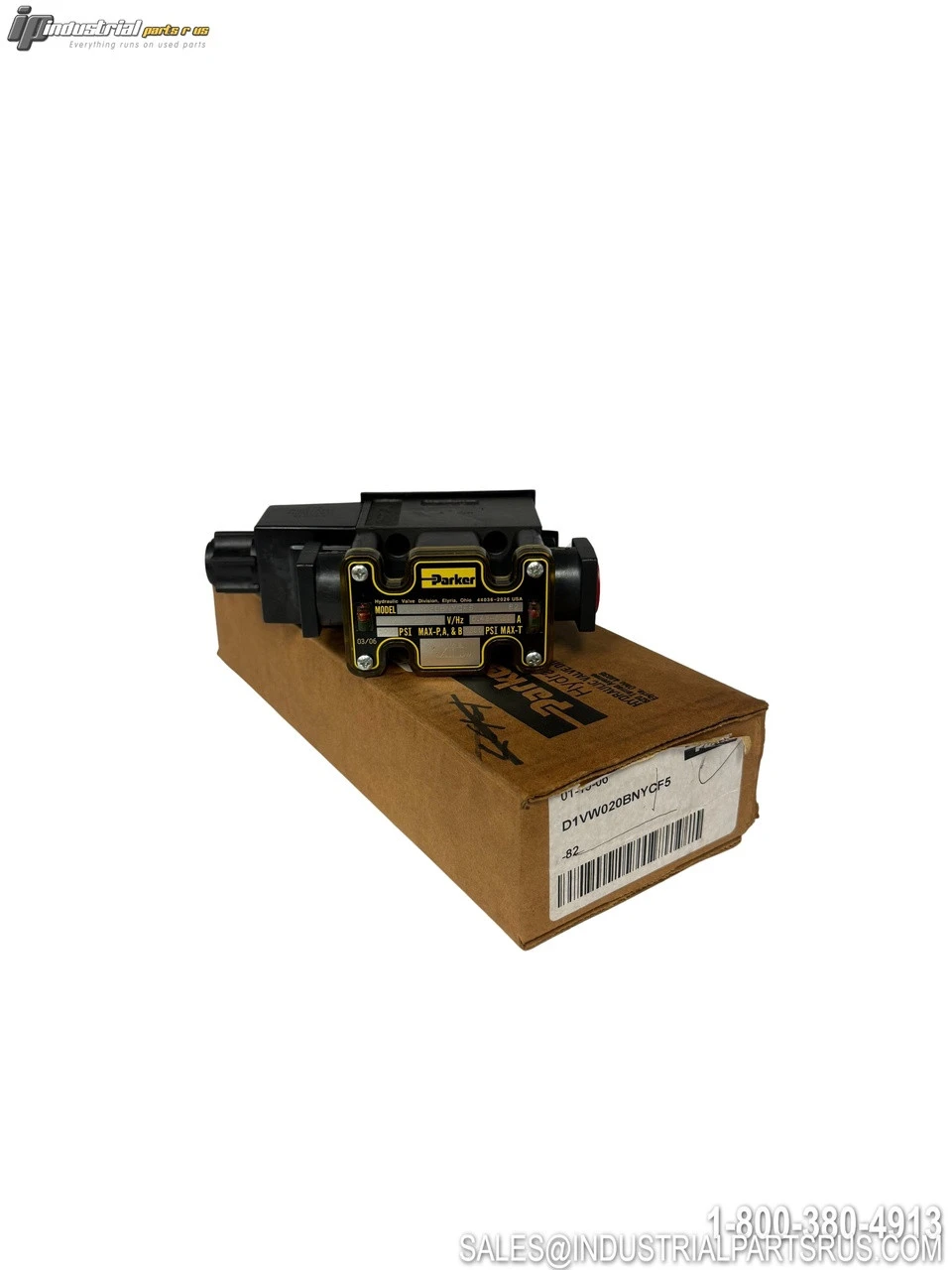

NEW PARKER D1VW020BNYCF5

The Parker D1VW020BNYCF5 is a hydraulic directional control solenoid valve from the D1VW series. Parker's D1VW directional control valves are high performance direct operated hydraulic valves. These are wet armature design solenoid valves in either 2 position or 3 position configurations. The D1VW valve conforms to D03 (NG6) mounting pattern.
Specification
Value
Brand
Parker
Model/Part Number
D1VW020BNYCF5
Product Type
Solenoid Valve
Series
D1VW
Coil Voltage
120VAC
Frequency
50/60 Hz
Maximum Pressure
5000 PSI
Spool Code
020
Spool Configuration
2 Position, Spring Offset
Solenoid Type
Single Solenoid
Mounting Pattern
NFPA D03
CETOP Standard
CETOP 03 (NG6)
Connection Type
1/2" NPT Conduit Opening
Seal Material
NBR (Nitrile)
We warranty all items for 30 days from date of purchase.

SKU: AI0361
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 7.00 LBS
Width: 12.00
(in)
Height: 10.00
(in)
Depth: 15.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: United States
GTIN: 679523686185
Manufacturer: Parker
Part Number: D1VW020BNYCF5
Shelf: A18
Model: D1VW020BNYCF5
MPN: D1VW020BNYCF5
Type: Solenoid Valve
